7. Water Pump Removal

Water Pump Removal

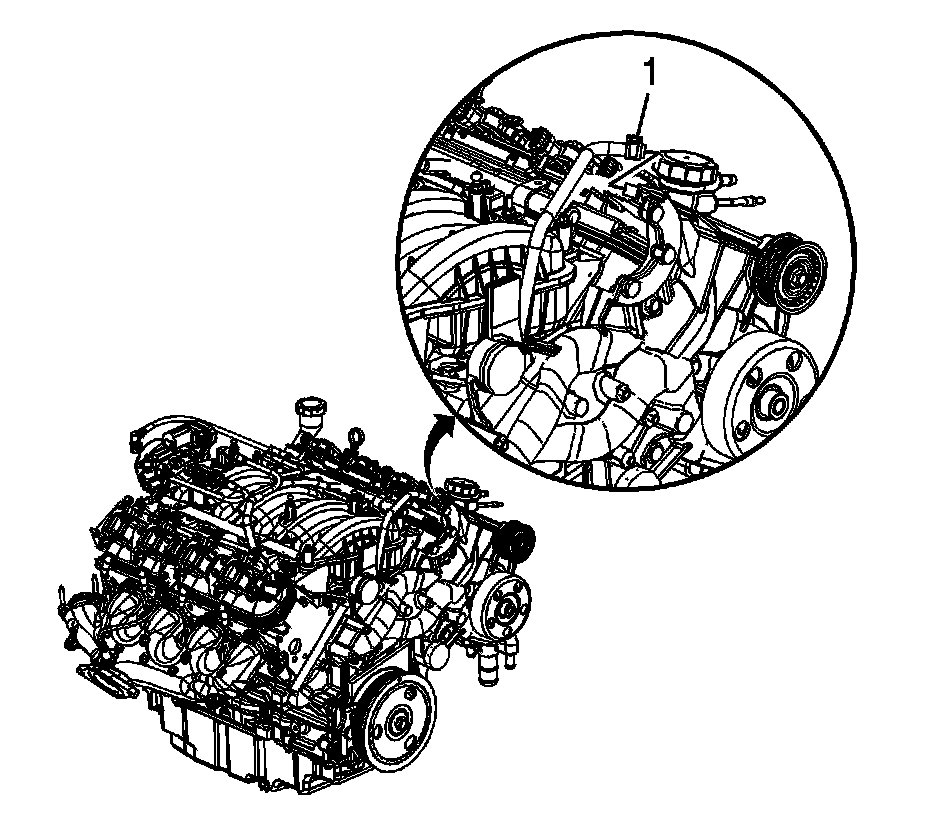

1. Disconnect the engine coolant air bleed hose and clamp (1).




2. Remove the water pump (300), bolts (318), and gasket (314).




3. Remove the water manifold (315), bolts (301), and gaskets (306).




4. Remove the water inlet housing (303), bolts (302), thermostat (305), and O-ring (304), as required.
5. Discard the gaskets.
