22. Engine Front Cover Removal




Engine Front Cover Removal

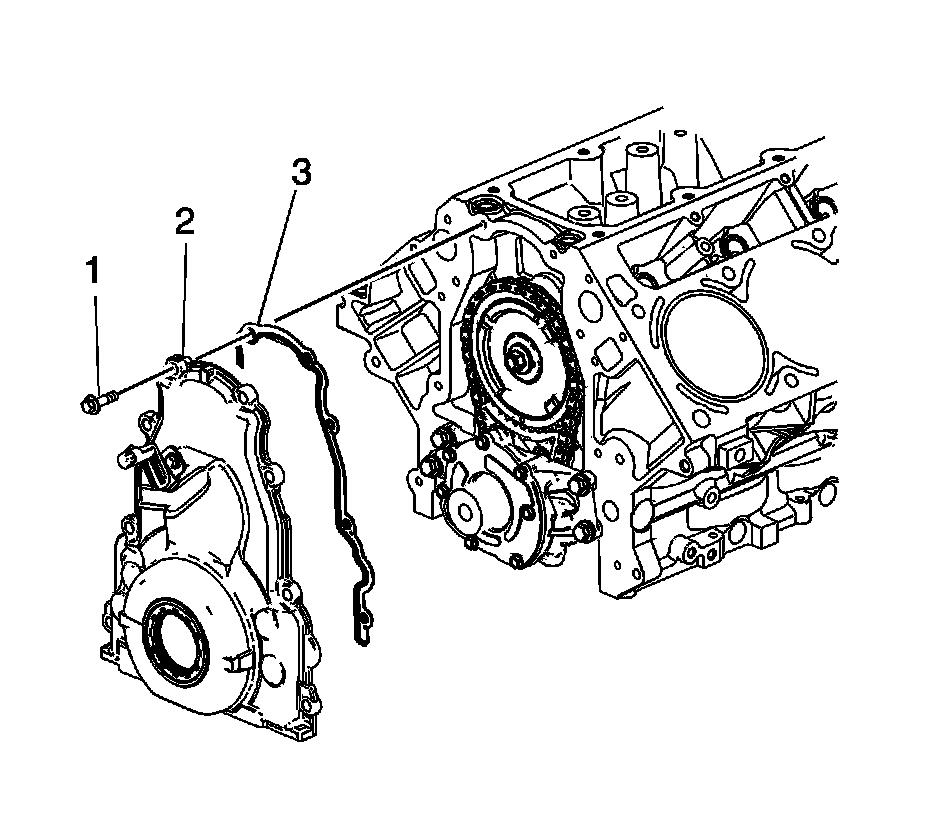

1. Remove the front cover bolts (1).
2. Remove the front cover (2) and gasket (3).
3. Discard the front cover gasket.

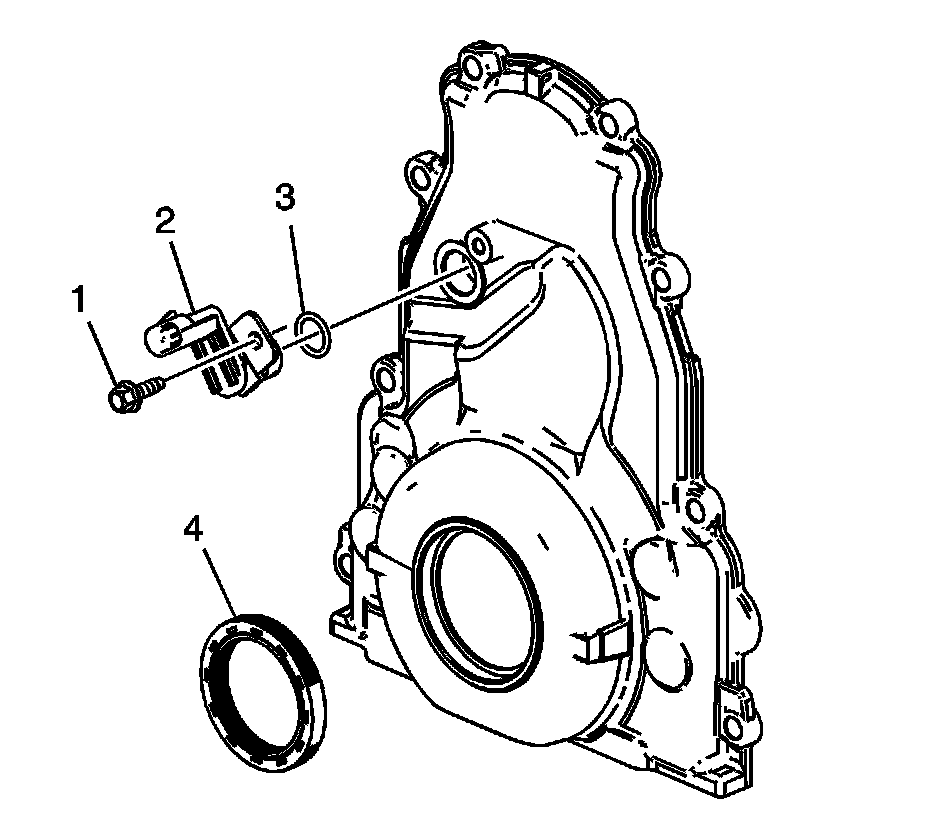

4. Remove the oil seal (4).
5. Remove the bolt (1) and camshaft position (CMP) sensor (2).
6. Remove the O-ring (3) from the sensor, as required.
