Lifter / Lash Adjuster, Valve




Component Connector End Views

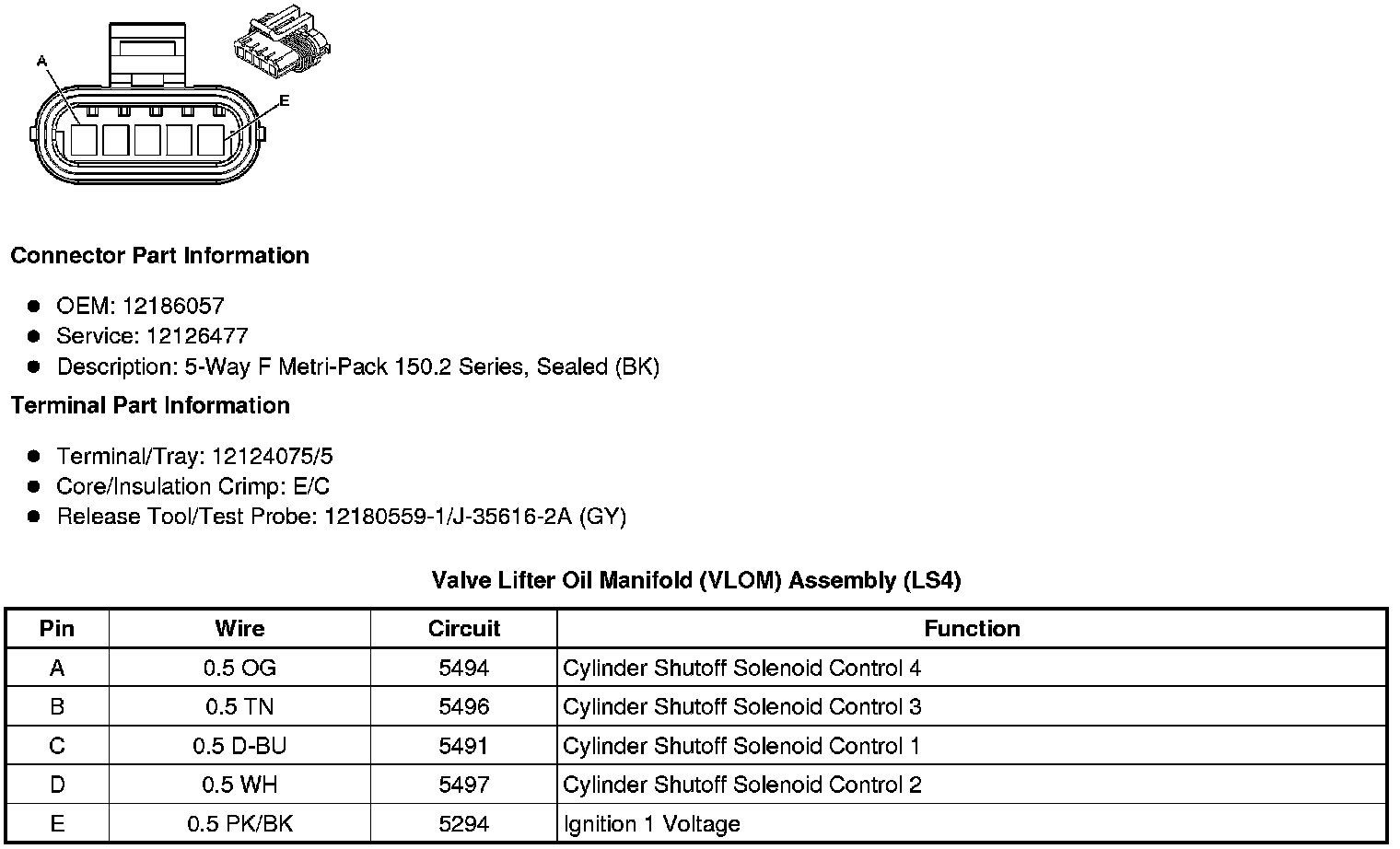

Valve Lifter Oil Manifold (VLOM) Assembly (LS4-5.3L)
