16. Upper Intake Manifold Removal

Upper Intake Manifold Removal

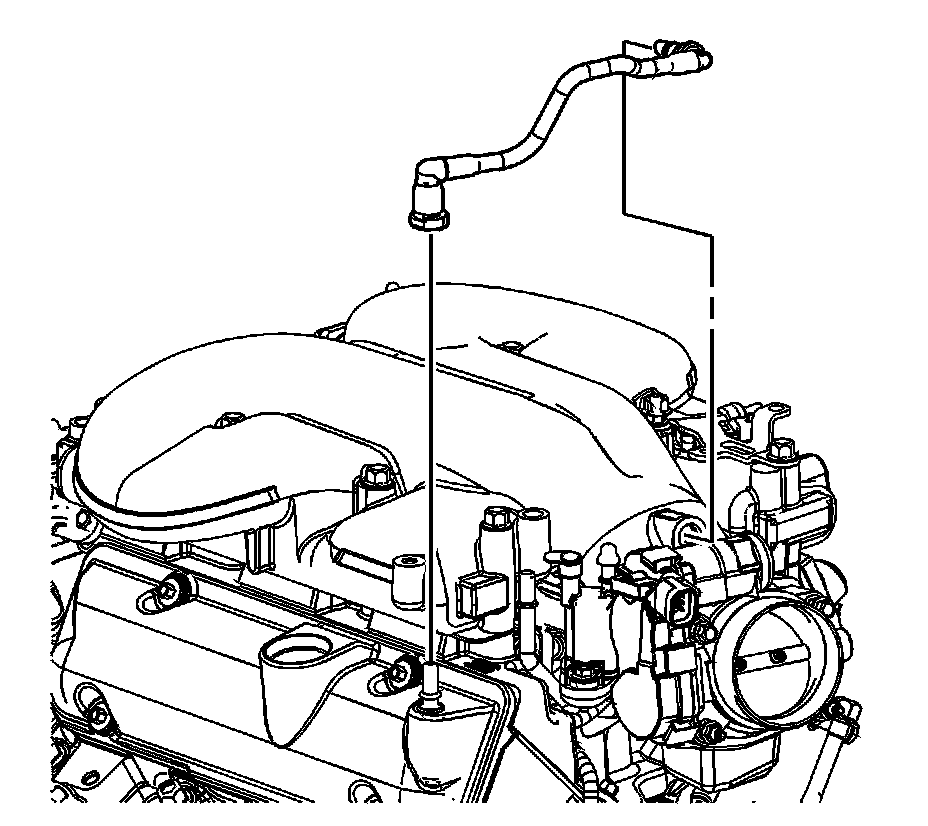

1. Remove the foul air positive crankcase ventilation (PCV) tube.




2. Remove the upper intake manifold bolts, stud, and manifold absolute pressure (MAP) sensor bracket.
3. Remove the upper intake manifold and gaskets.
