Reverse Band Assemble

Reverse Band Assemble




1. Inspect the reverse band assembly (615) for the following:

* Cracks
* Scoring
* Lining separation
* Wear of the fiber material

2. Inspect the apply lug for cracks.

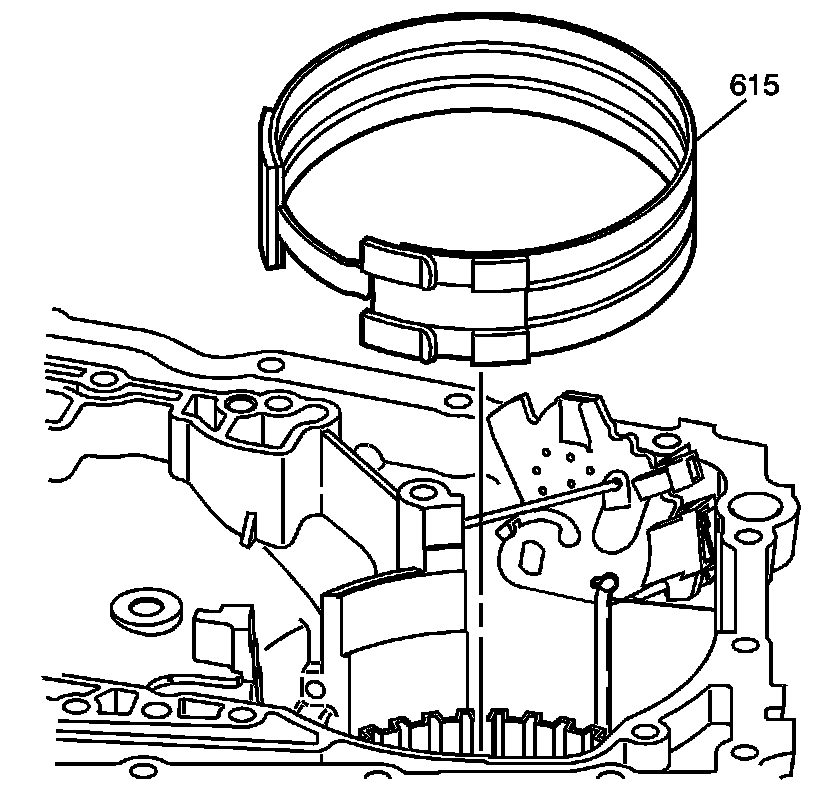

3. Install the reverse band assembly (615) into the case with the band end aligned on the anchor pin in the case.
