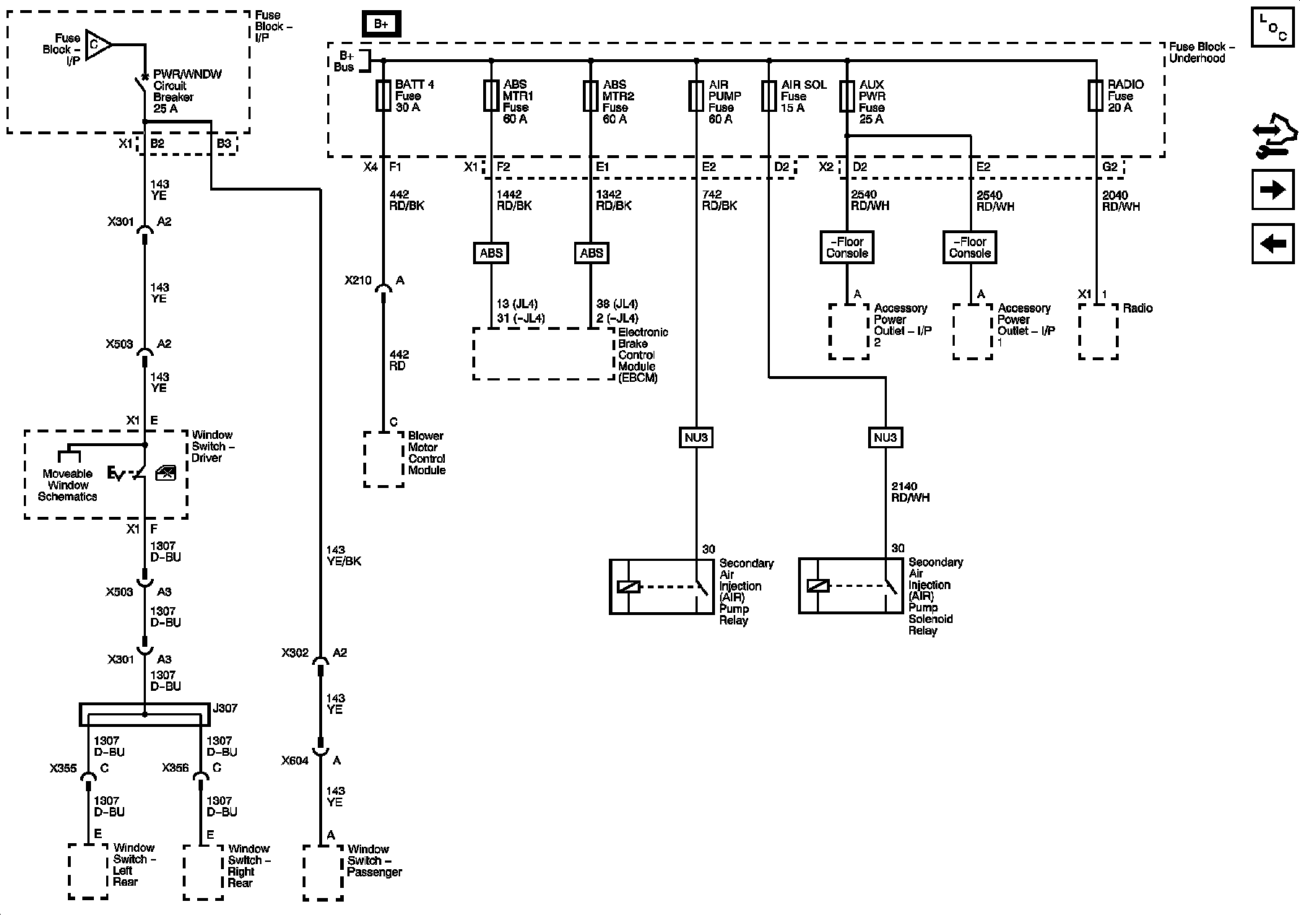

Power Distribution Diagram 7




Power Distribution Schematics

BATT 4, ABS MTR1, ABS MTR2, AIR PUMP, AIR SOL, AUX PWR, RADIO Fuses, and PWR/WNDW Circuit Breaker
