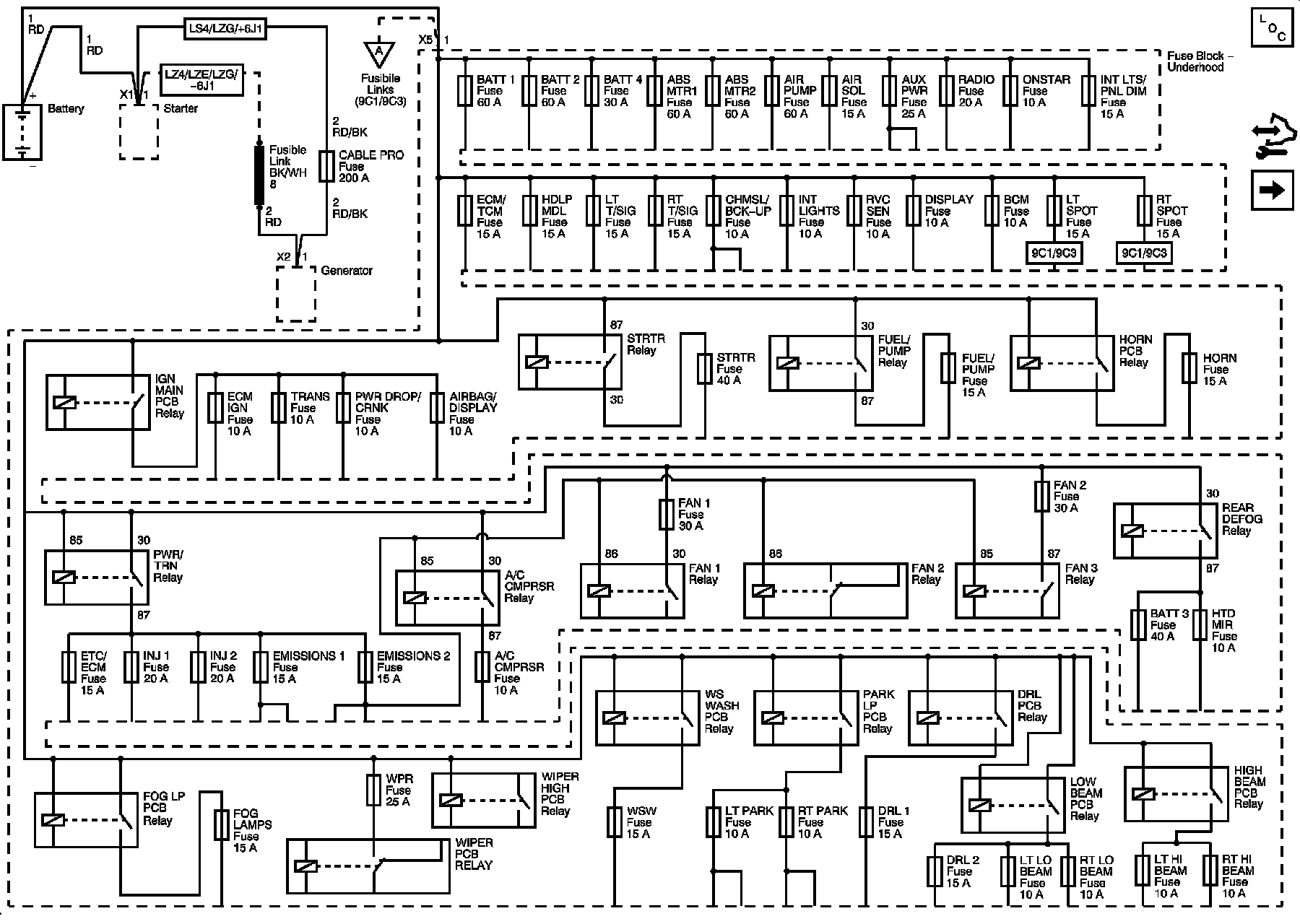

Home >> Chevrolet >> 2009 >> Impala V6-3.5L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Power Distribution Diagram 1
