Impact Sensor: Diagrams




Component Connector End Views

Inflatable Restraint Front End Sensor - Left






Inflatable Restraint Front End Sensor - Right






Inflatable Restraint Side Impact Sensor (SIS) - Left (AY1)






Inflatable Restraint Side Impact Sensor (SIS) Right (AY1)

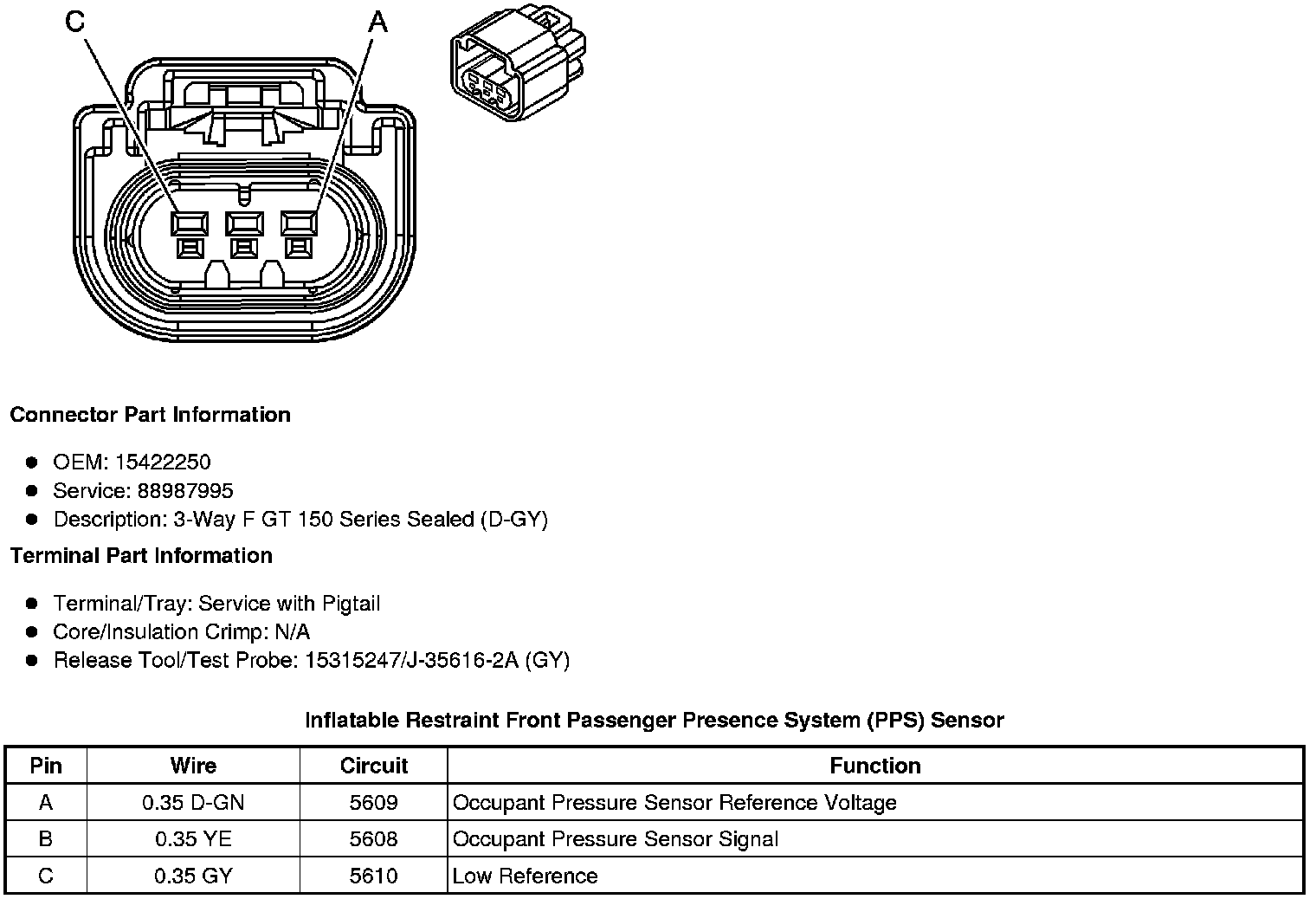

Inflatable Restraint Front Passenger Presence System (PPS) Sensor
