Throttle Body: Diagrams

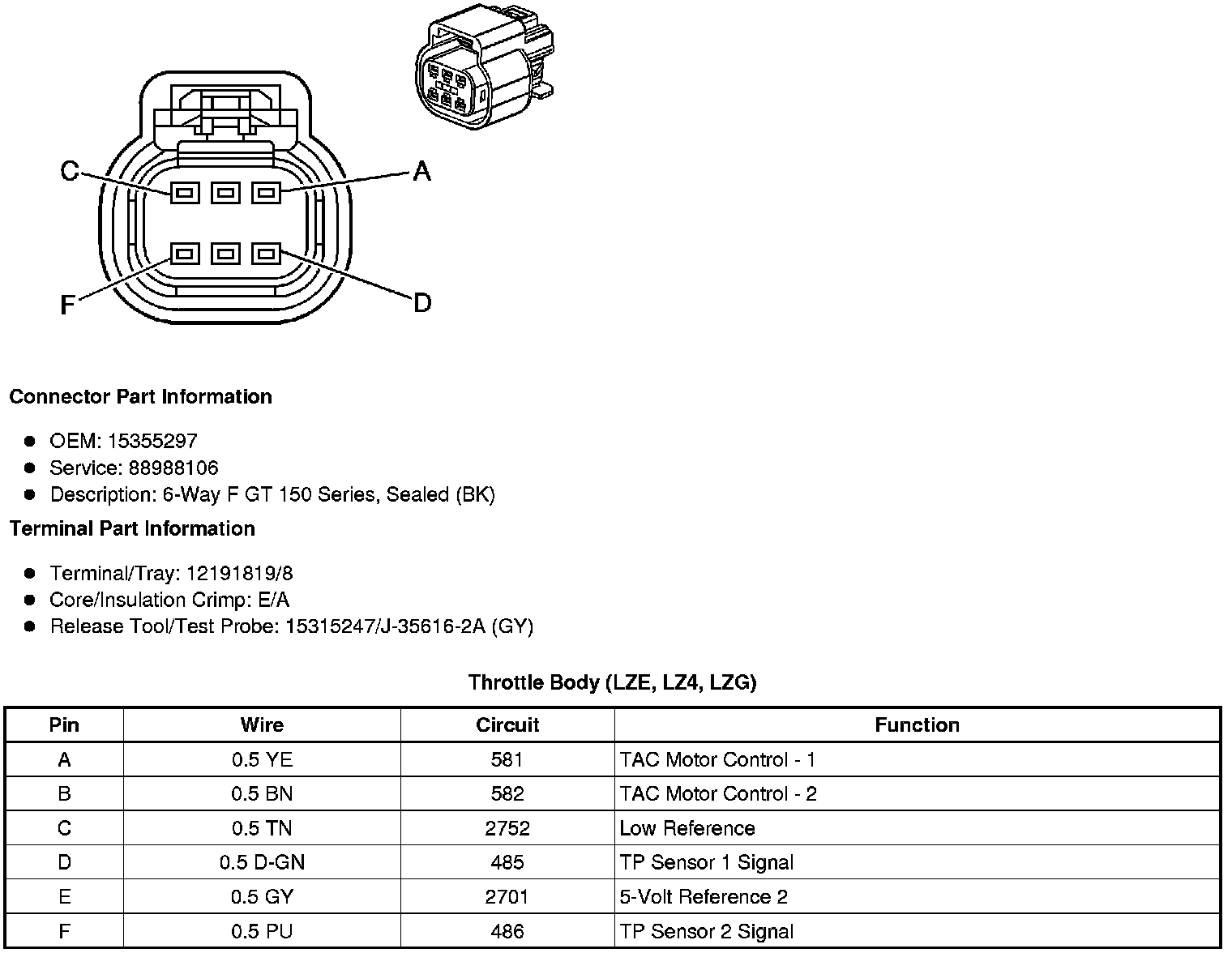

Component Connector End Views

Throttle Body (LZE-3.5L Flex Fuel, LZ4-3.5L Gas, LZG-3.9L Flex Fuel)
