Power Distribution Diagram 13

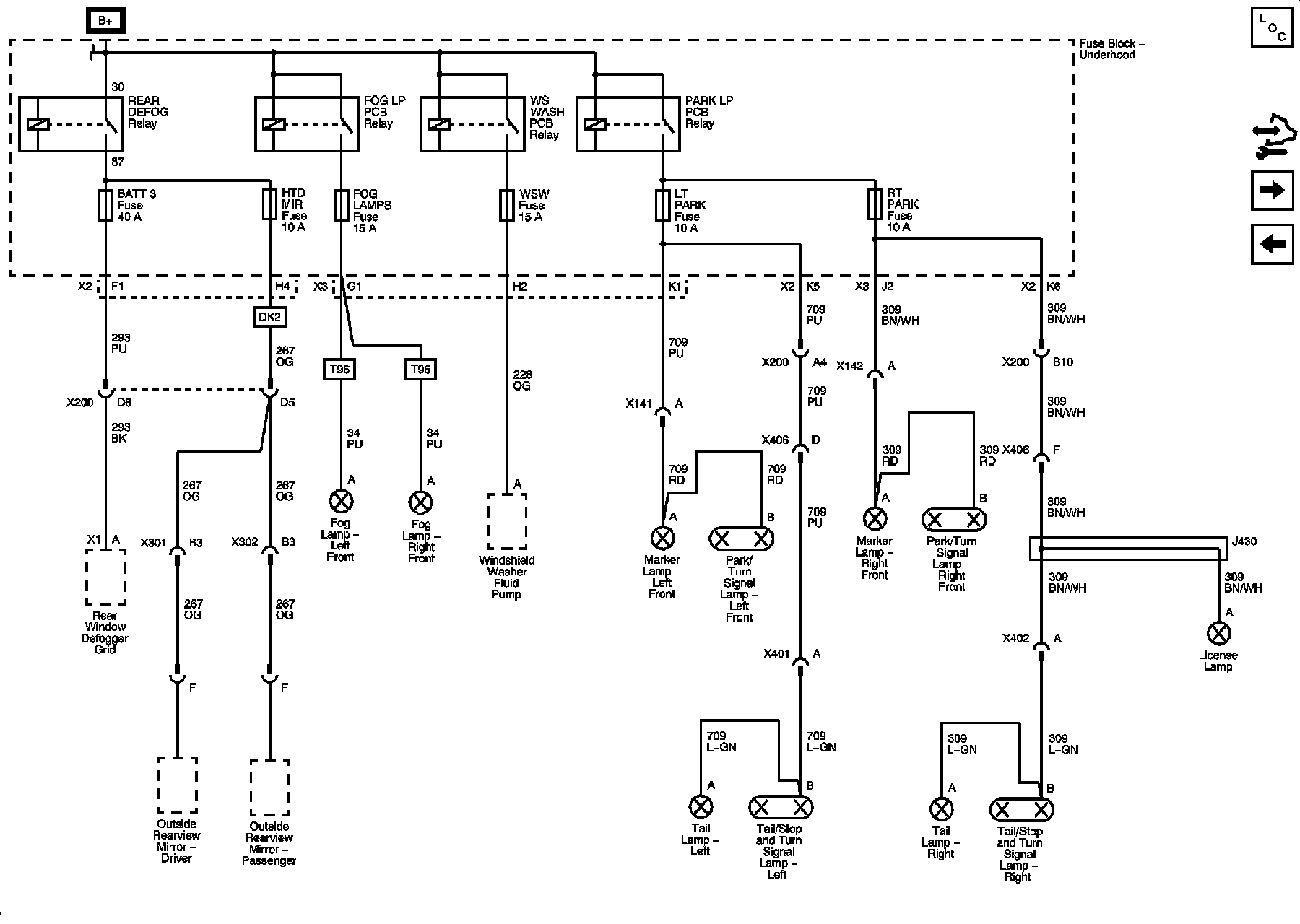

Power Distribution Schematics

BATT 3, HTD MIR, FOG LAMPS, WSW, LT PARK, and RT PARK Fuses
