Master Connector List
Master Electrical Component List

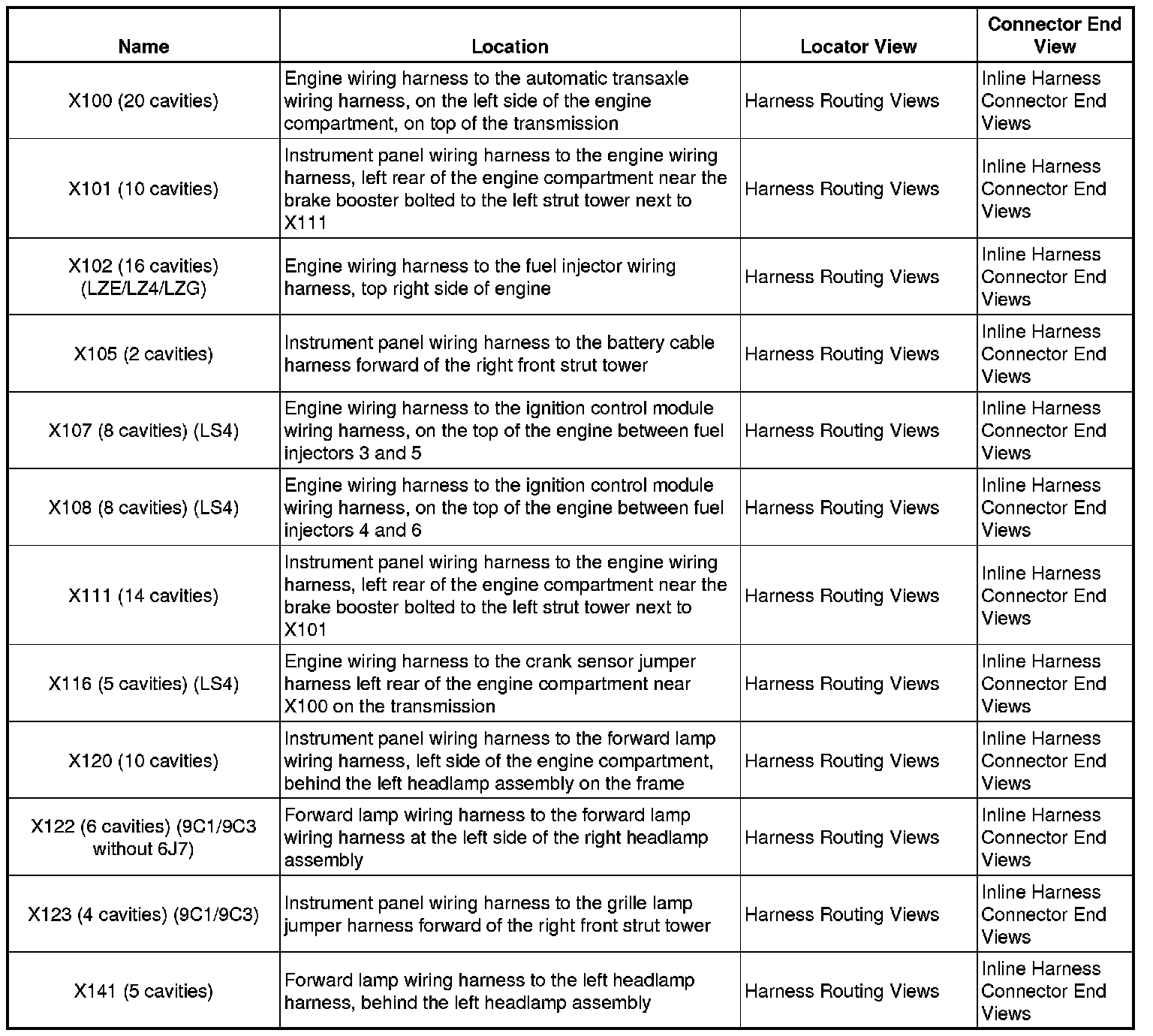

X100 - X141:

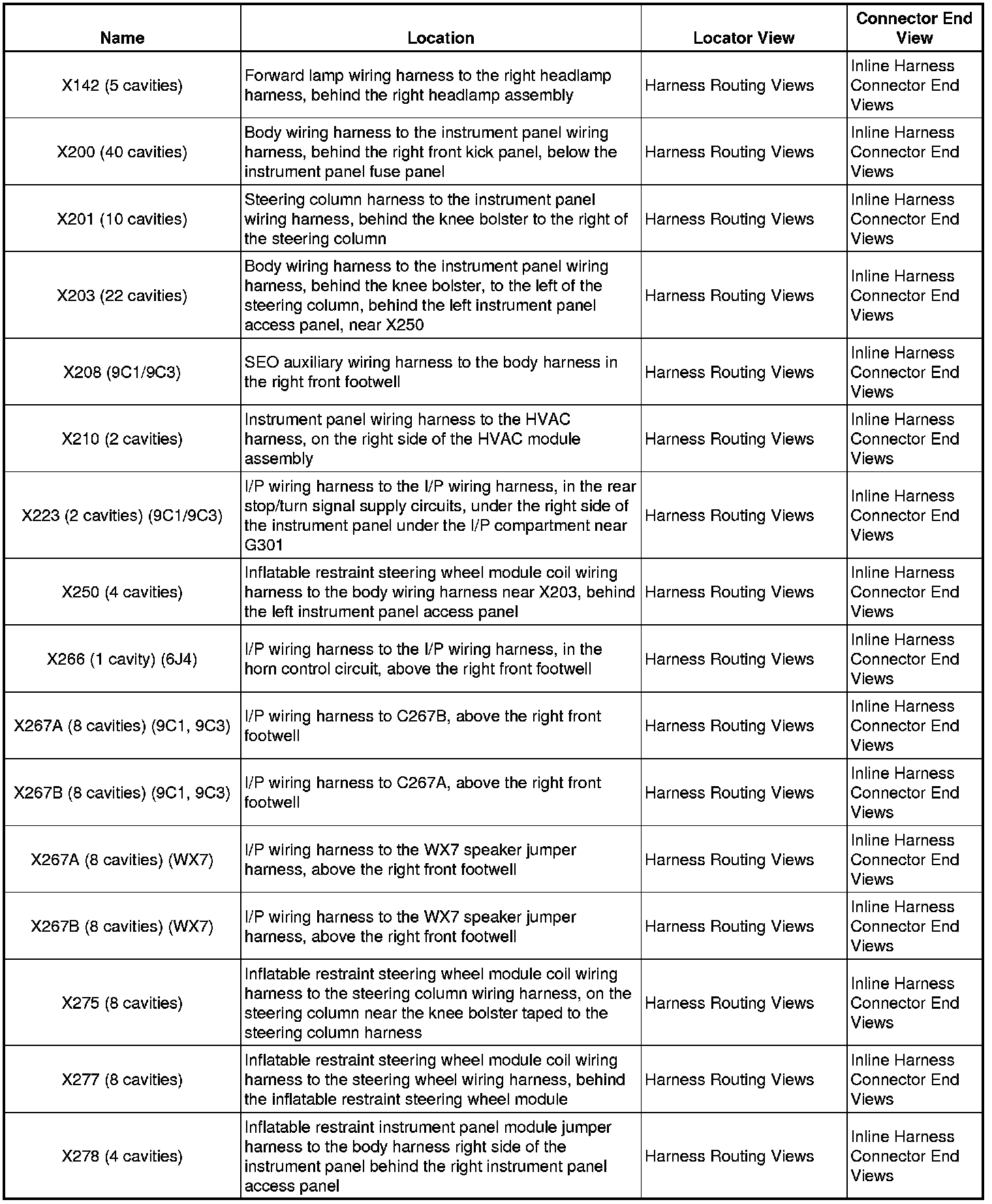

X142 - X278:

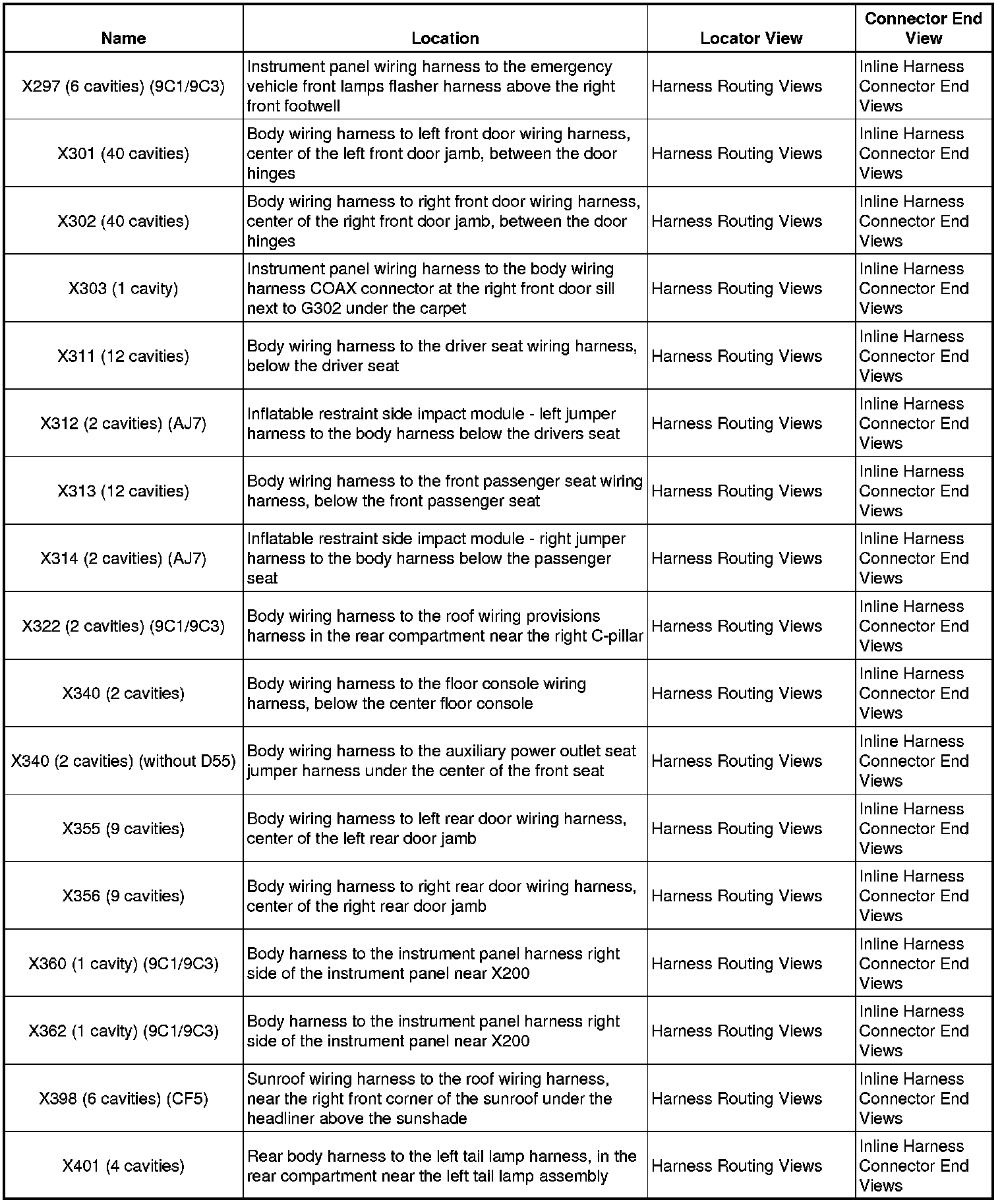

X297 - X401:

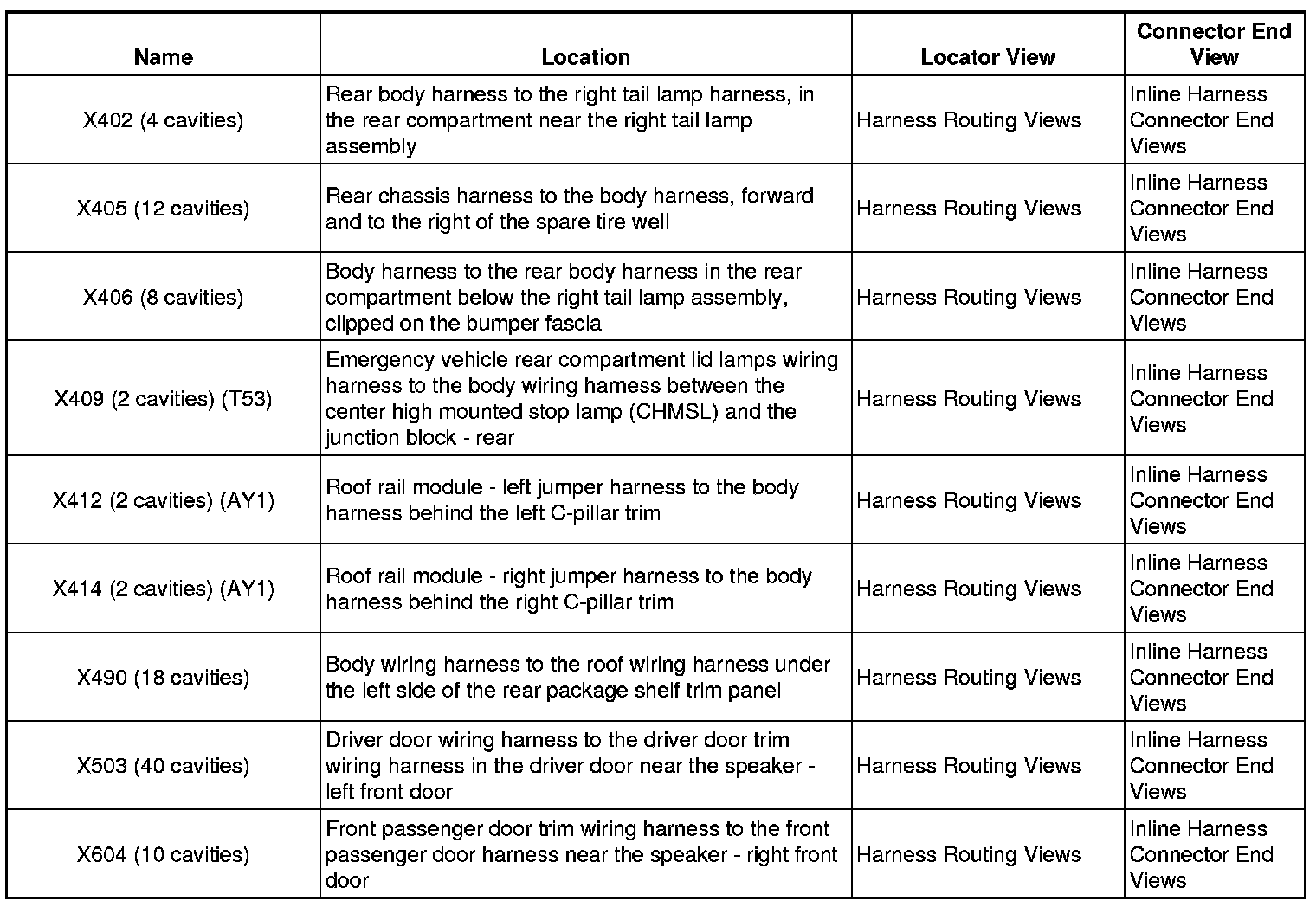

X402 - X604:
