X600 - X699




Harness Routing Views

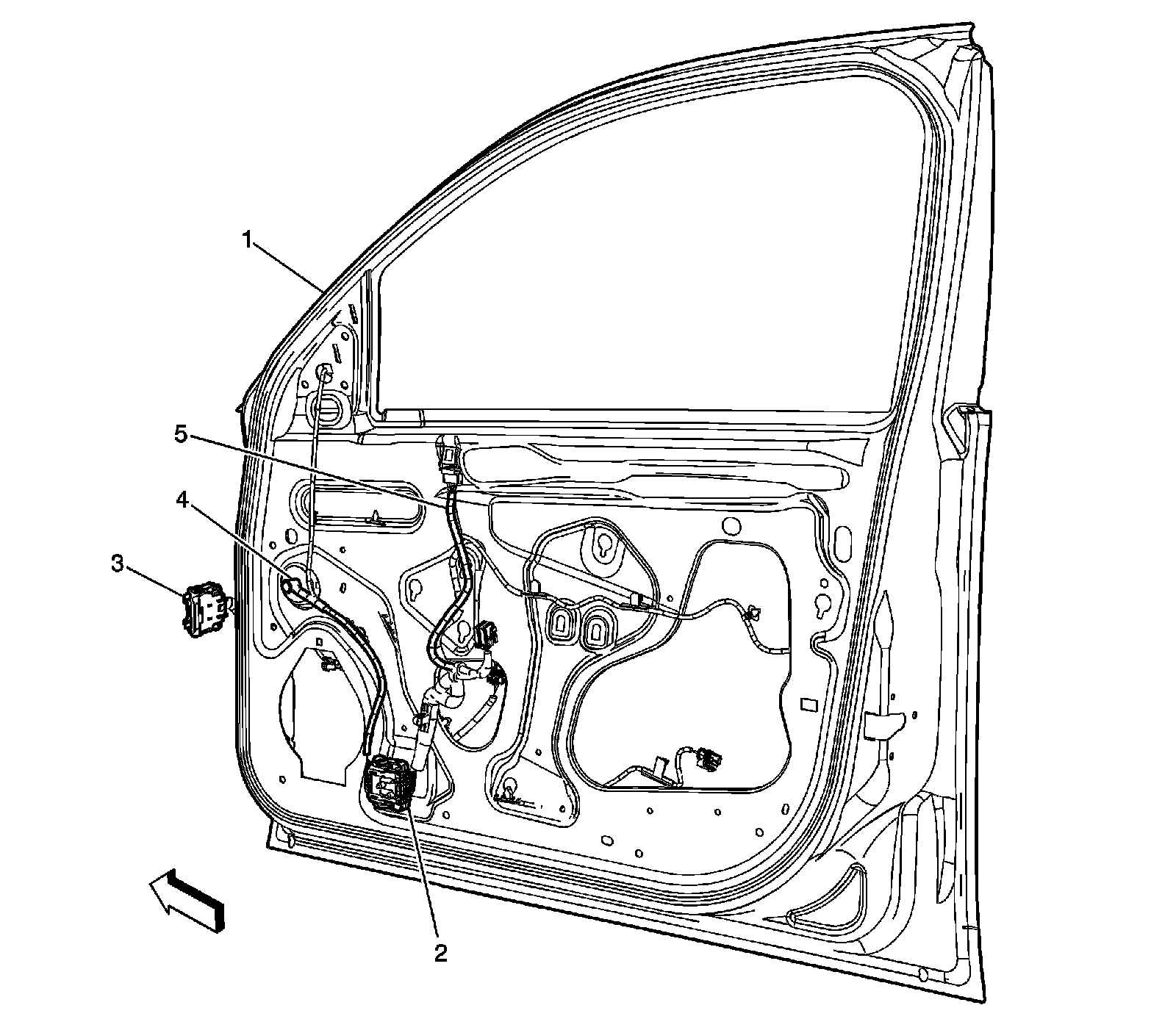

Passenger Door Harnesses




1 - Door Frame
2 - X604
3 - X302
4 - J604
5 - J608
