Harness Routing Views

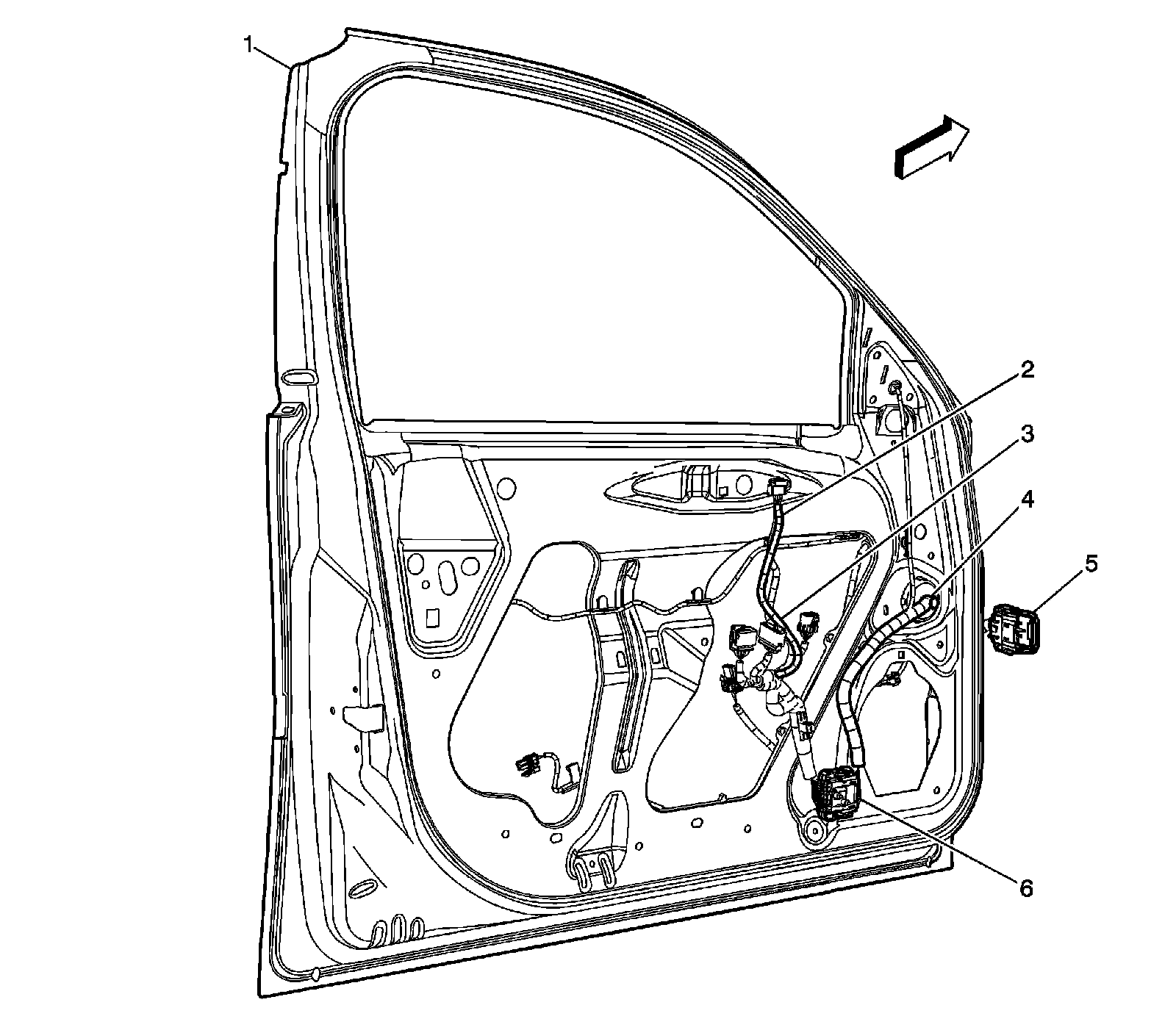

Driver Door Harnesses
1
- Door Frame
2
- J506
3
- J504
4
- J505
5
- X301
6
- X503
