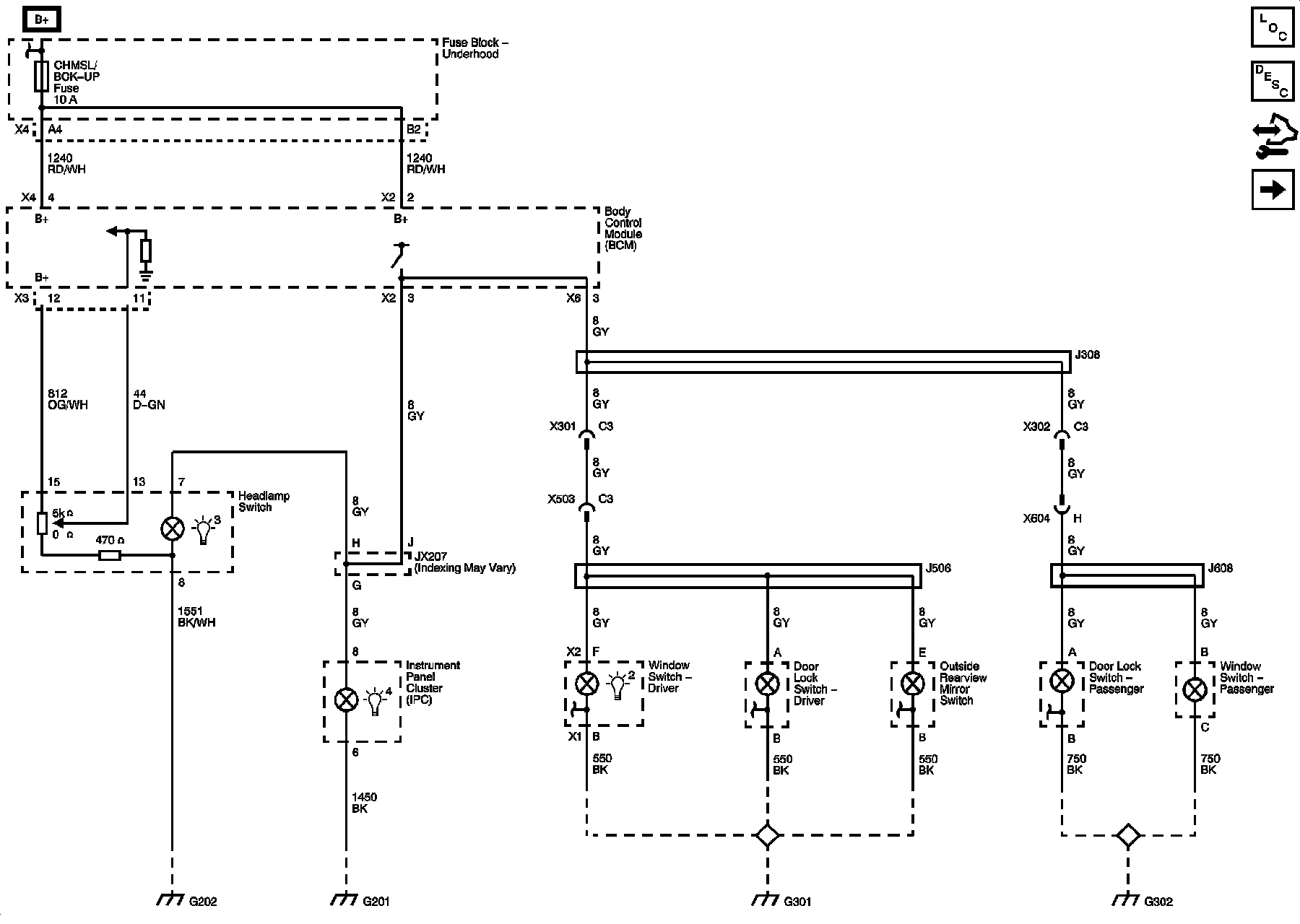

Home >> Chevrolet >> 2009 >> Impala V6-3.5L >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights Dimming Schematics >> Interior Lights Dimming Schematic 1
