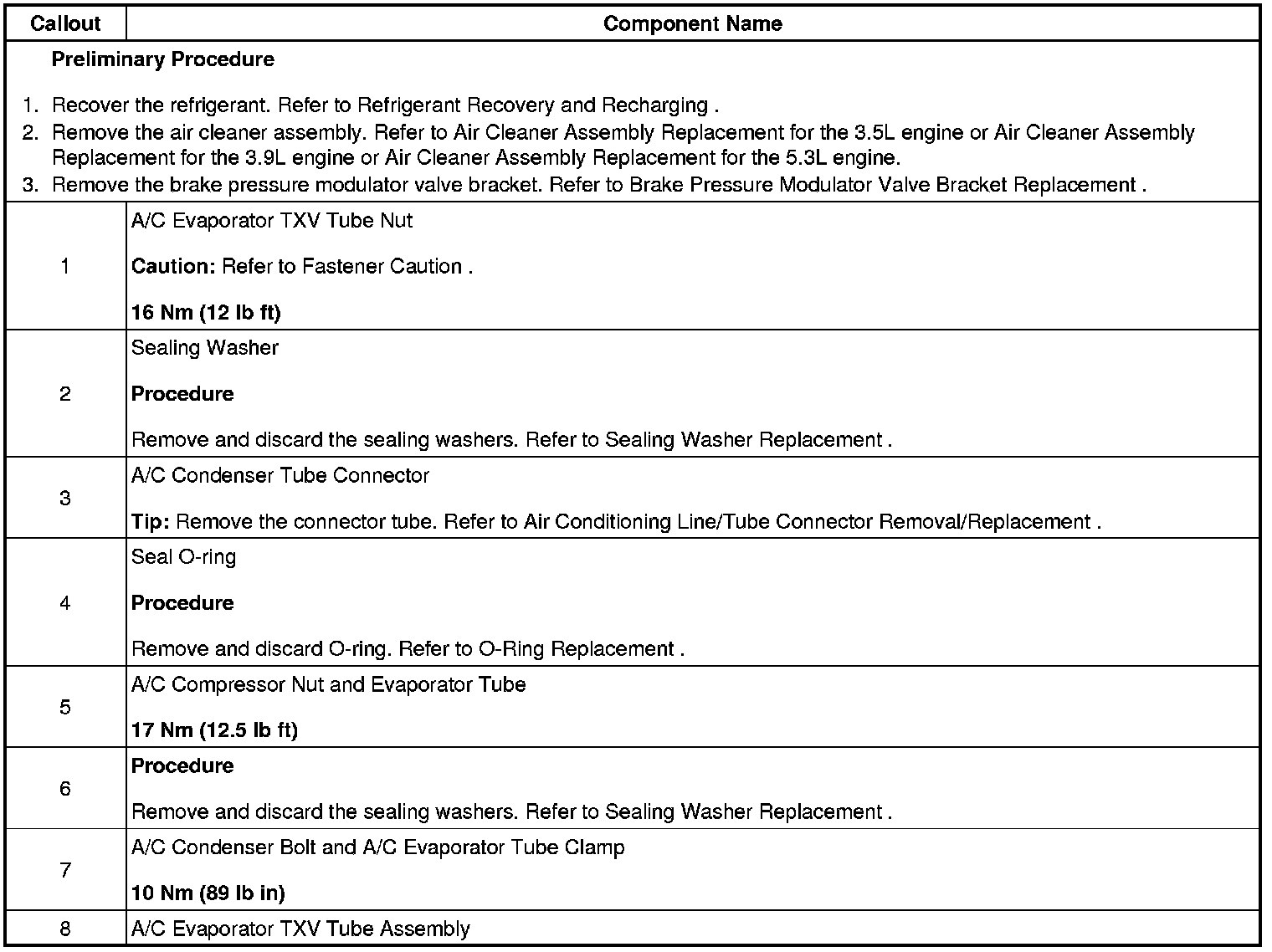

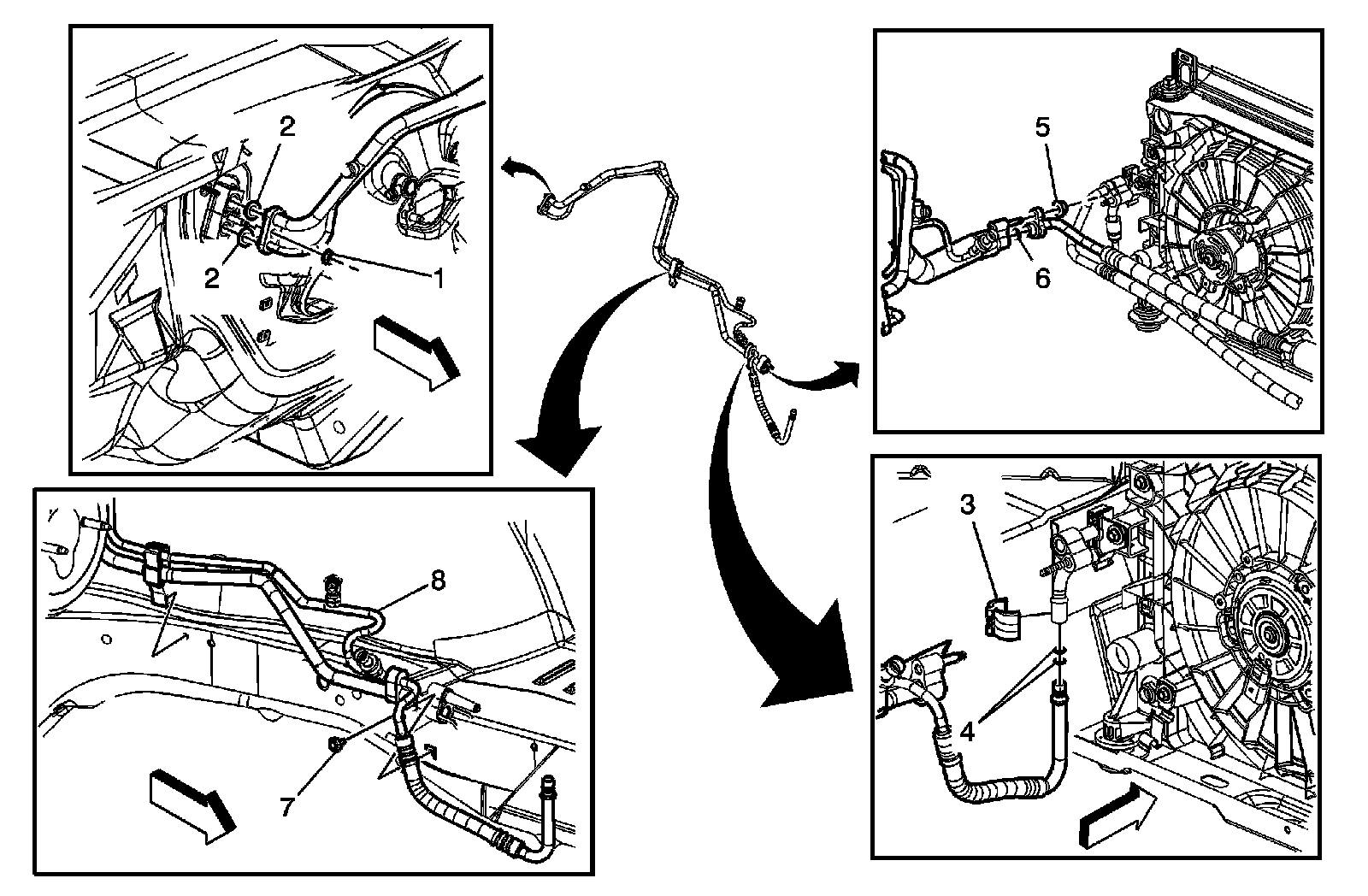

Air Conditioning Evaporator Thermal Expansion Valve Tube Replacement




Air Conditioning Evaporator Thermal Expansion Valve Tube Replacement
