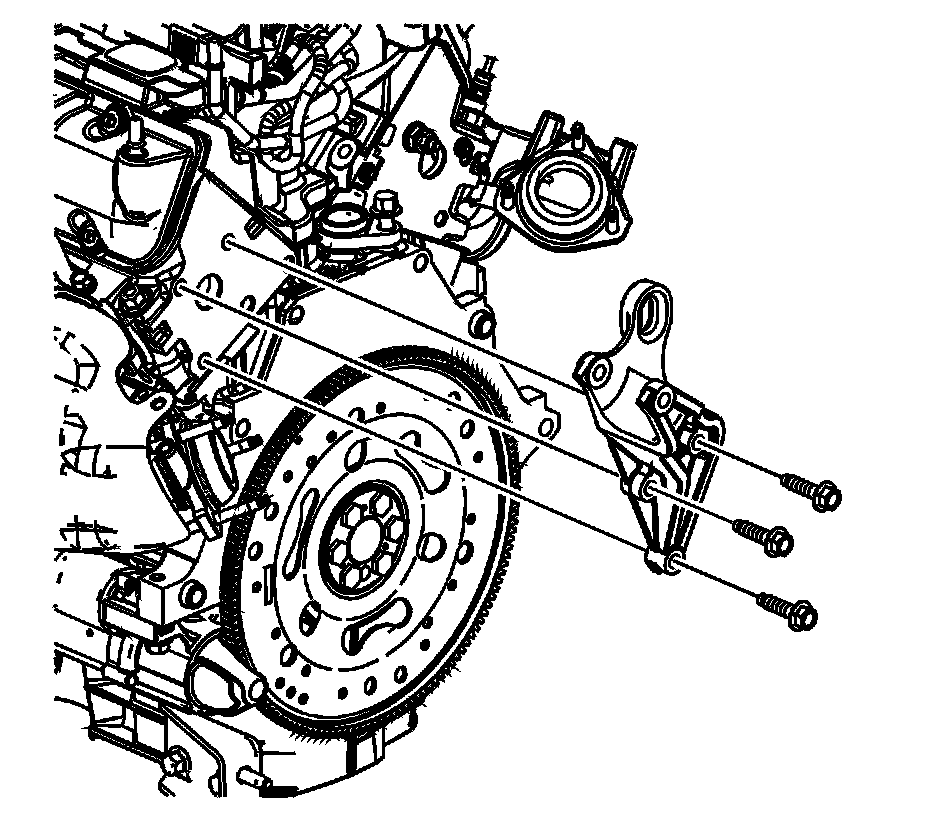

99. Engine Mount Strut and Engine Lift Bracket Installation

Engine Mount Strut and Engine Lift Bracket Installation




1. Install the engine mount strut and engine lift bracket and bracket bolts.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the bolts and tighten to 50 Nm (37 lb ft).
