82. Oil Pump Installation

Oil Pump Installation




1. Install the crankshaft oil deflector.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the crankshaft oil deflector nuts and tighten to 25 Nm (18 lb ft).





Note: Do not reuse the oil pump driveshaft retainer. During assembly, install a NEW oil pump driveshaft retainer.

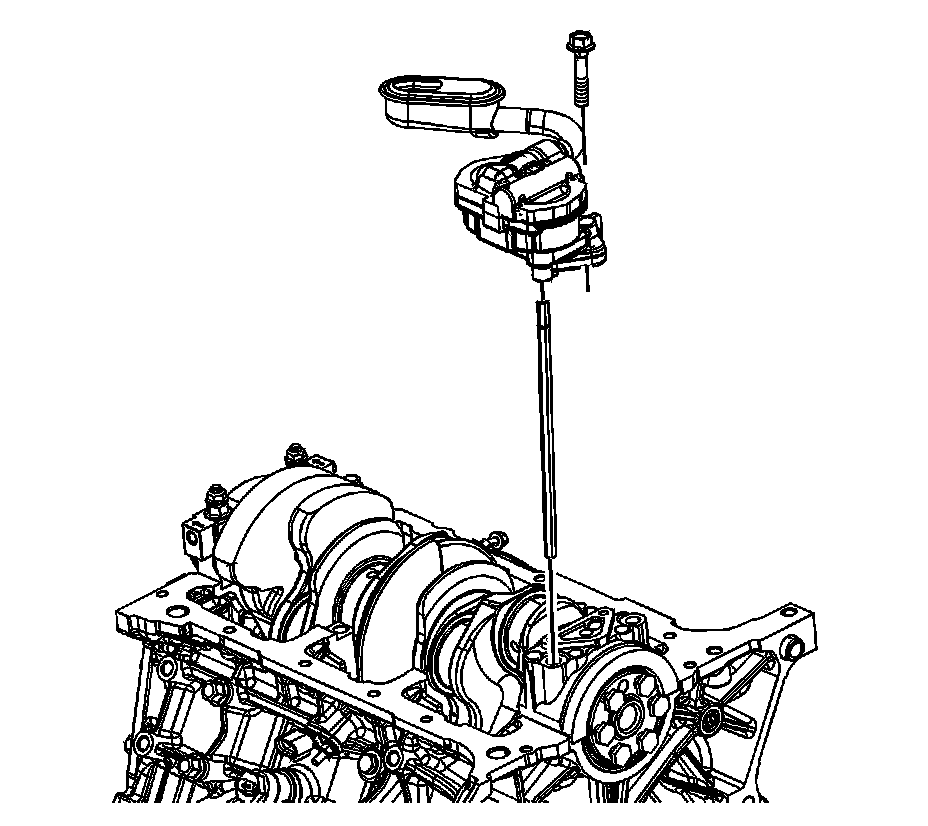

3. Install the oil pump.
4. Position the oil pump onto the pins.
5. Install the oil pump bolt attaching the oil pump to the rear crankshaft bearing cap, and tighten to 41 Nm (30 lb ft).
