34. Piston Oil Nozzle Removal




Piston Oil Nozzle Removal

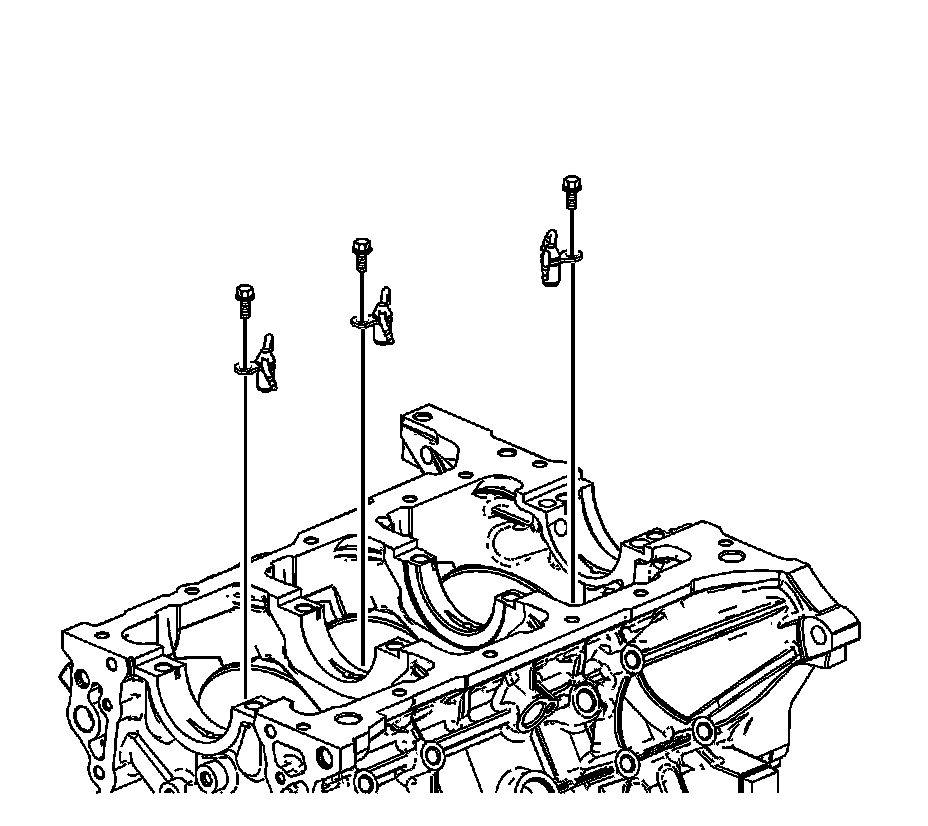

1. Remove the bolts retaining the piston oil nozzles to the engine block.
2. Remove the piston oil nozzles.
