Manual Transmission

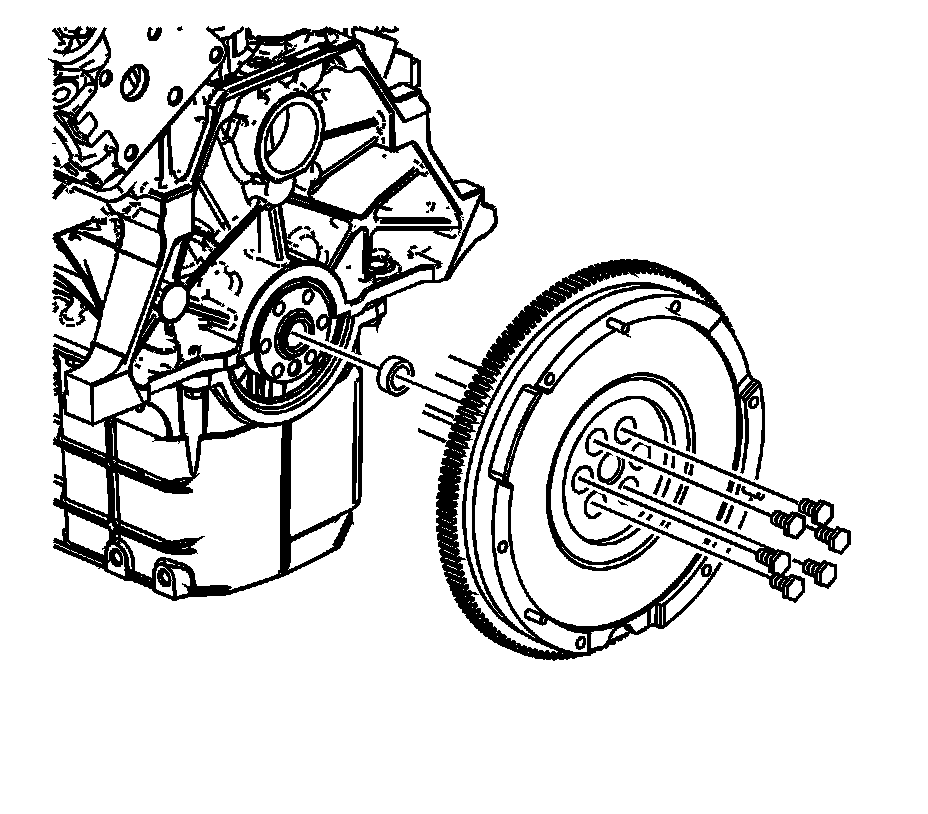

Engine Flywheel Removal (Manual Transmission)




1. Remove the flywheel/pressure plate bolts.
2. Remove the flywheel/pressure plate.
3. Remove the clutch pilot bearing.
