2. Crankshaft Balancer Removal

Crankshaft Balancer Removal

Special Tools
* EN-46539 - Puller End Protector
* J-41816 - Crankshaft Balancer Remover




1. Remove the crankshaft balancer bolt and washer.





Caution: Do NOT use a power-assisted tool with the special tool in order to remove or install this component. You cannot properly control the alignment of this component using a power-assisted tool, and this can damage the component.

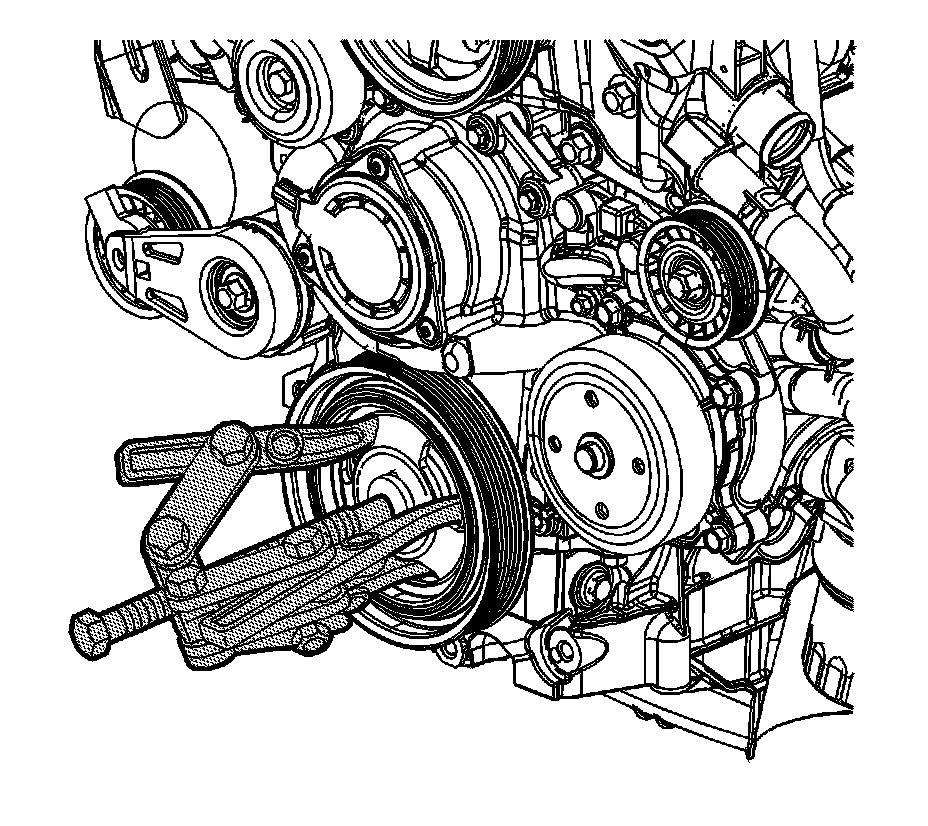

2. Remove the crankshaft balancer using the J-41816 - Crankshaft Balancer Remover along with EN-46539 - Puller End Protector.
