17. Lower Intake Manifold Removal

Lower Intake Manifold Removal

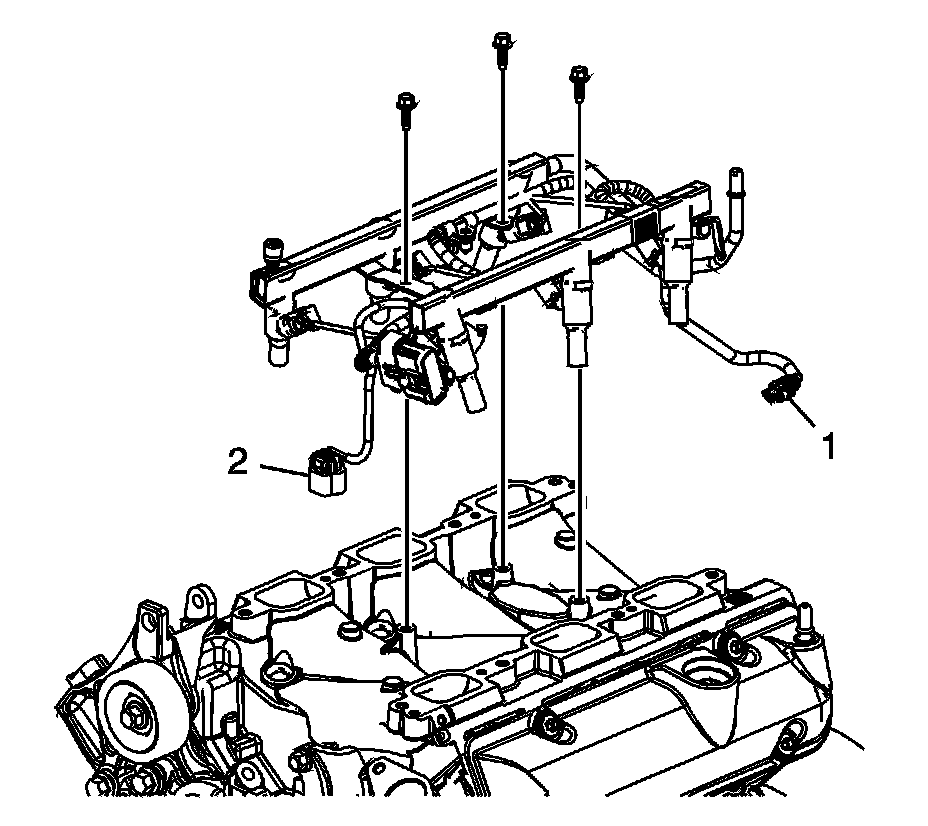

1. Disconnect the coolant temperature sensor (1).
2. Disconnect the camshaft position (CMP) sensor (2).
3. Remove the fuel injector rail bolts.
4. Remove the fuel rail assembly.




5. Remove the lower intake manifold bolts and discard.
6. Remove the lower intake manifold.
