102. Drive Belt Tensioner Installation




Drive Belt Tensioner Installation

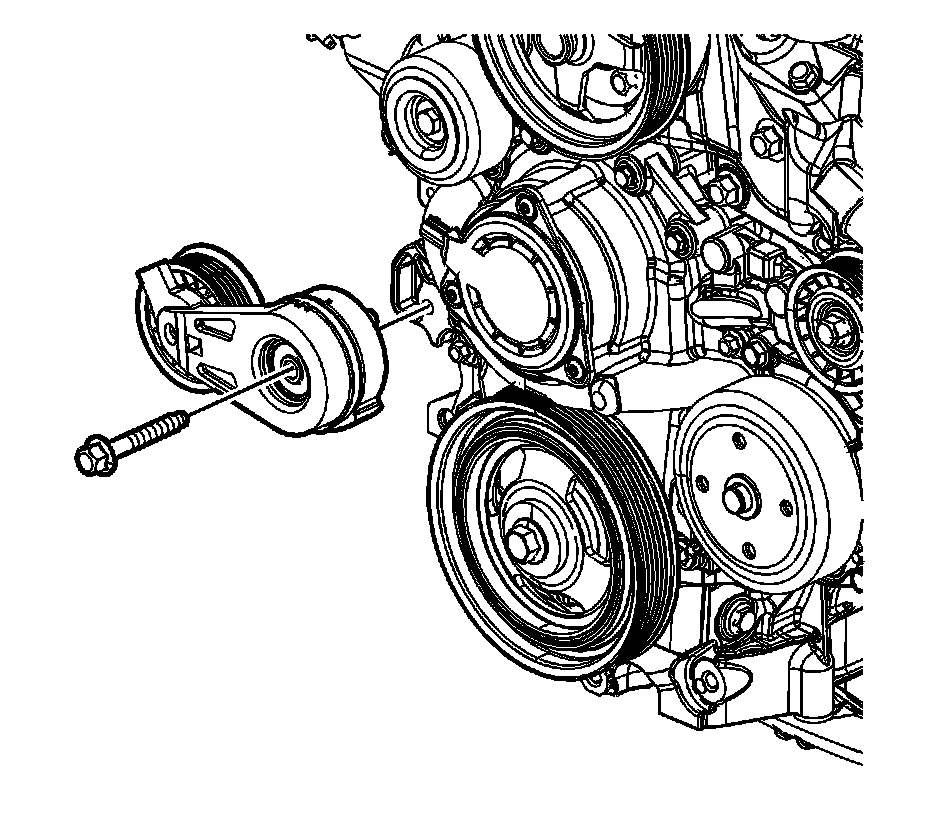

1. Install the drive belt tensioner.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the drive belt tensioner bolt and tighten to 50 Nm (37 lb ft).
