10. Exhaust Crossover Pipe Removal

Exhaust Crossover Pipe Removal

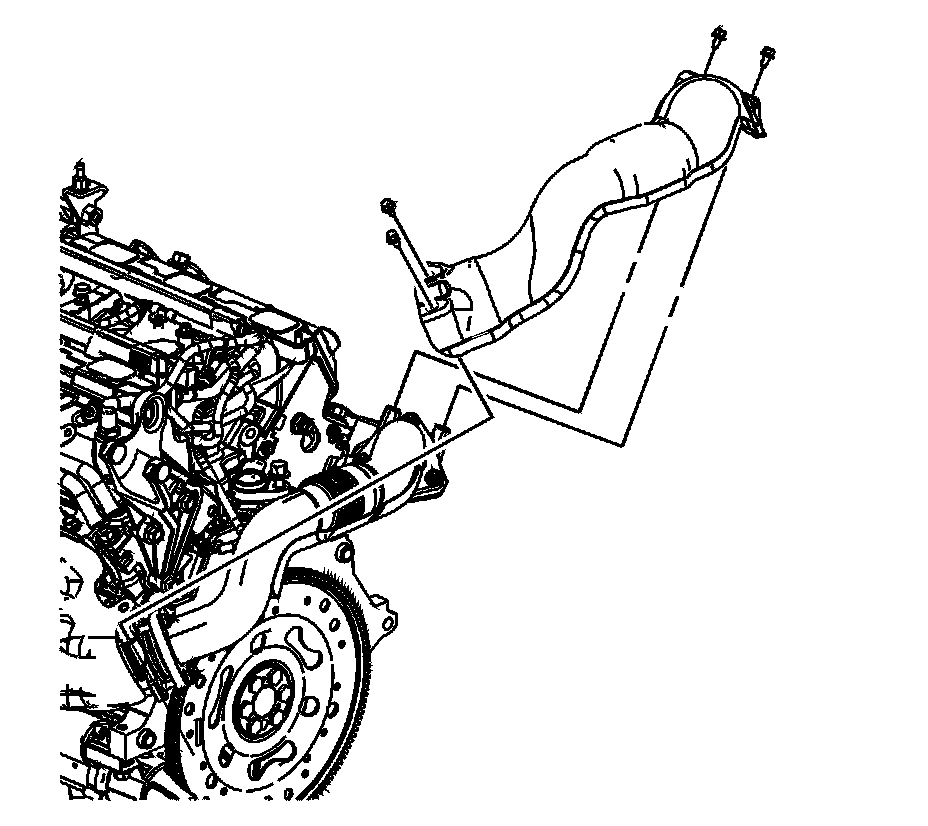

1. Remove the exhaust crossover heat shield pipe bolts.
2. Remove the exhaust crossover heat shield.




3. Remove the exhaust crossover pipe nuts.

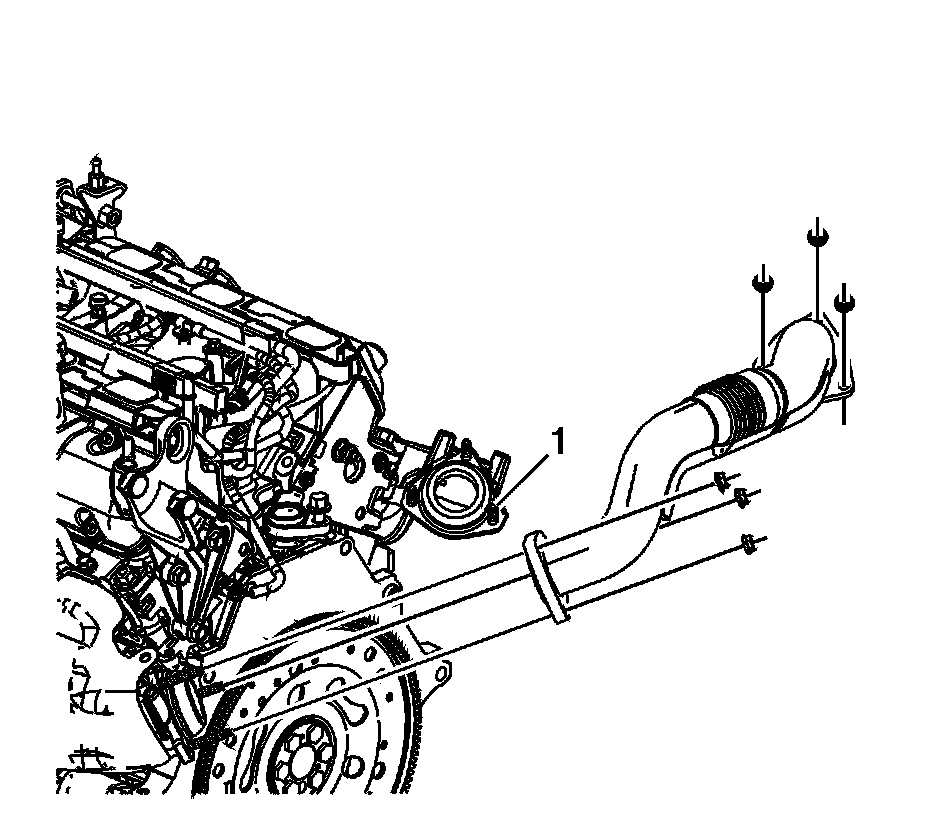

4. Remove the exhaust crossover pipe studs (1) if necessary.
5. Remove the exhaust crossover pipe.
