Instrument Cluster / Carrier
Instrument Cluster / Carrier

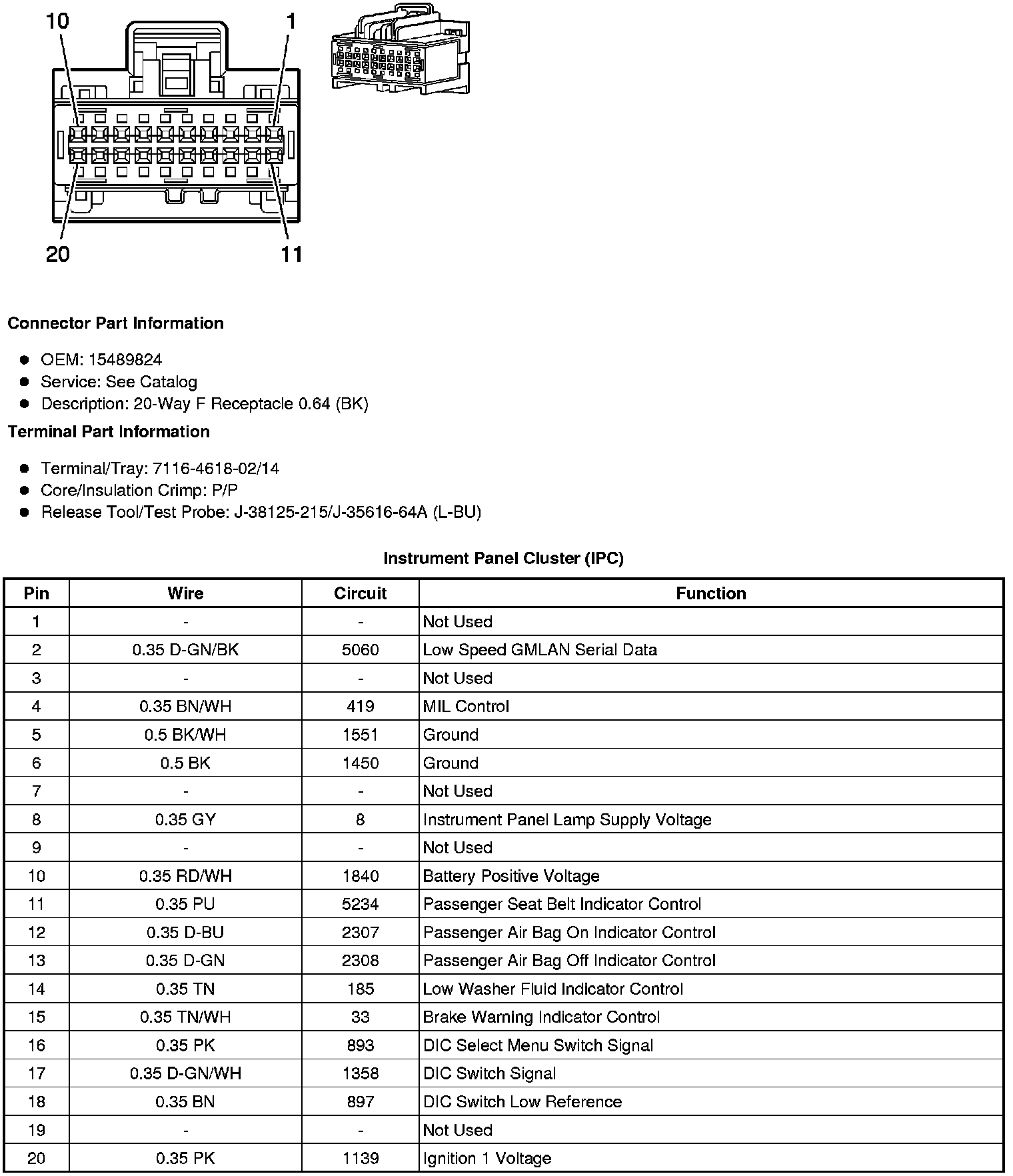

Component Connector End Views
Instrument Panel Cluster (IPC)
