X500 - X599
Inline Harness Connector End Views

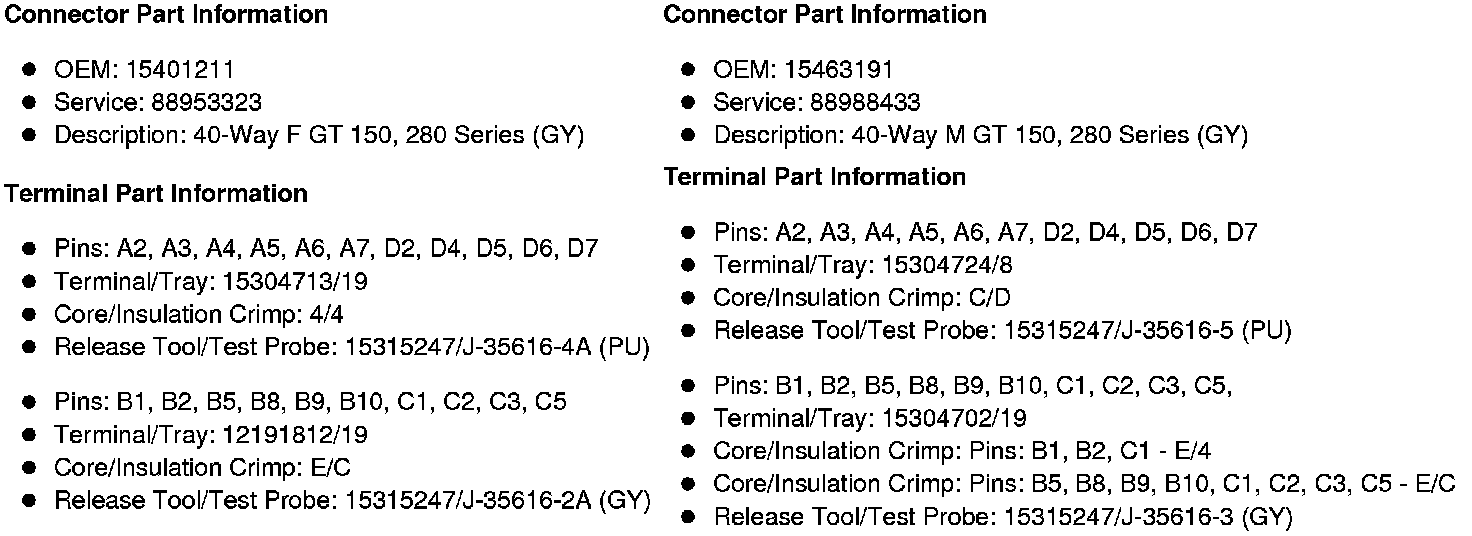

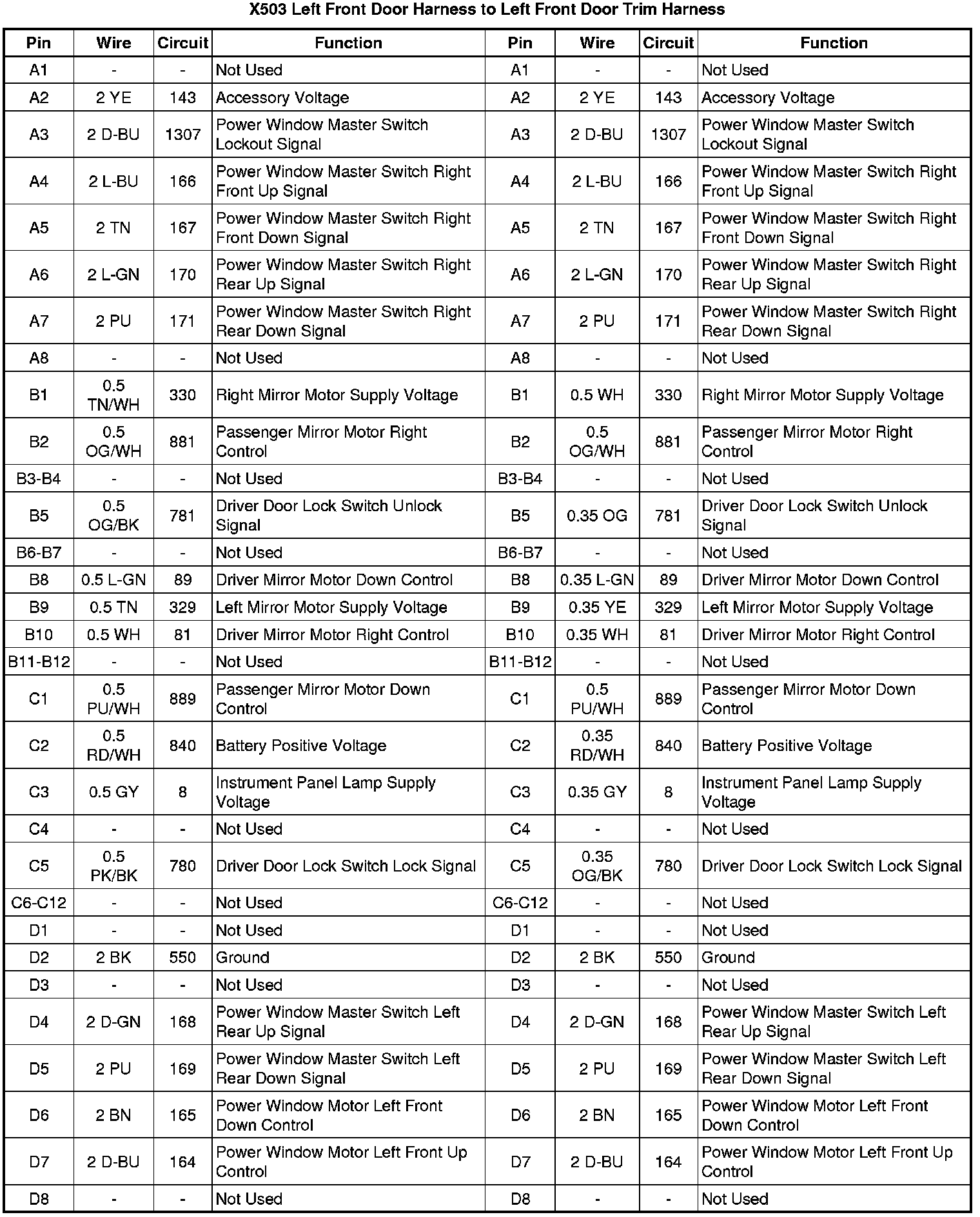

X503 Left Front Door Harness to Left Front Door Trim Harness
