Circuit Breaker, Wiper/Washer




Component Connector End Views

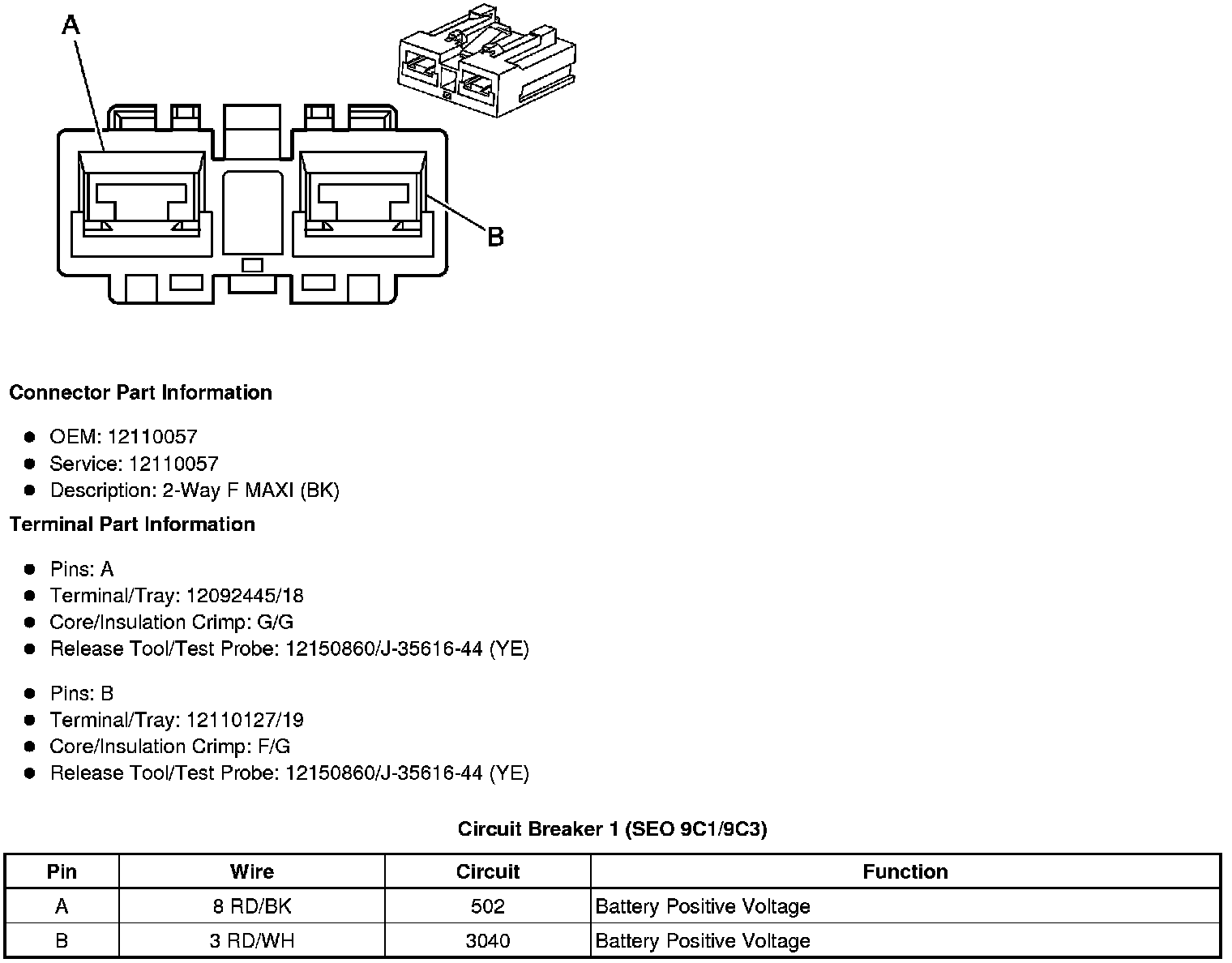

Circuit Breaker 1 (SEO 9C1/9C3)






Circuit Breaker 2 (SEO 9C1/9C3)






Circuit Breaker 3 (SEO 9C1/9C3)
