Home >> Chevrolet >> 2009 >> Impala V6-3.5L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Diagrams >> Connector Views

Connector Views




Component Connector End Views

Heated Seat Element - Driver Back

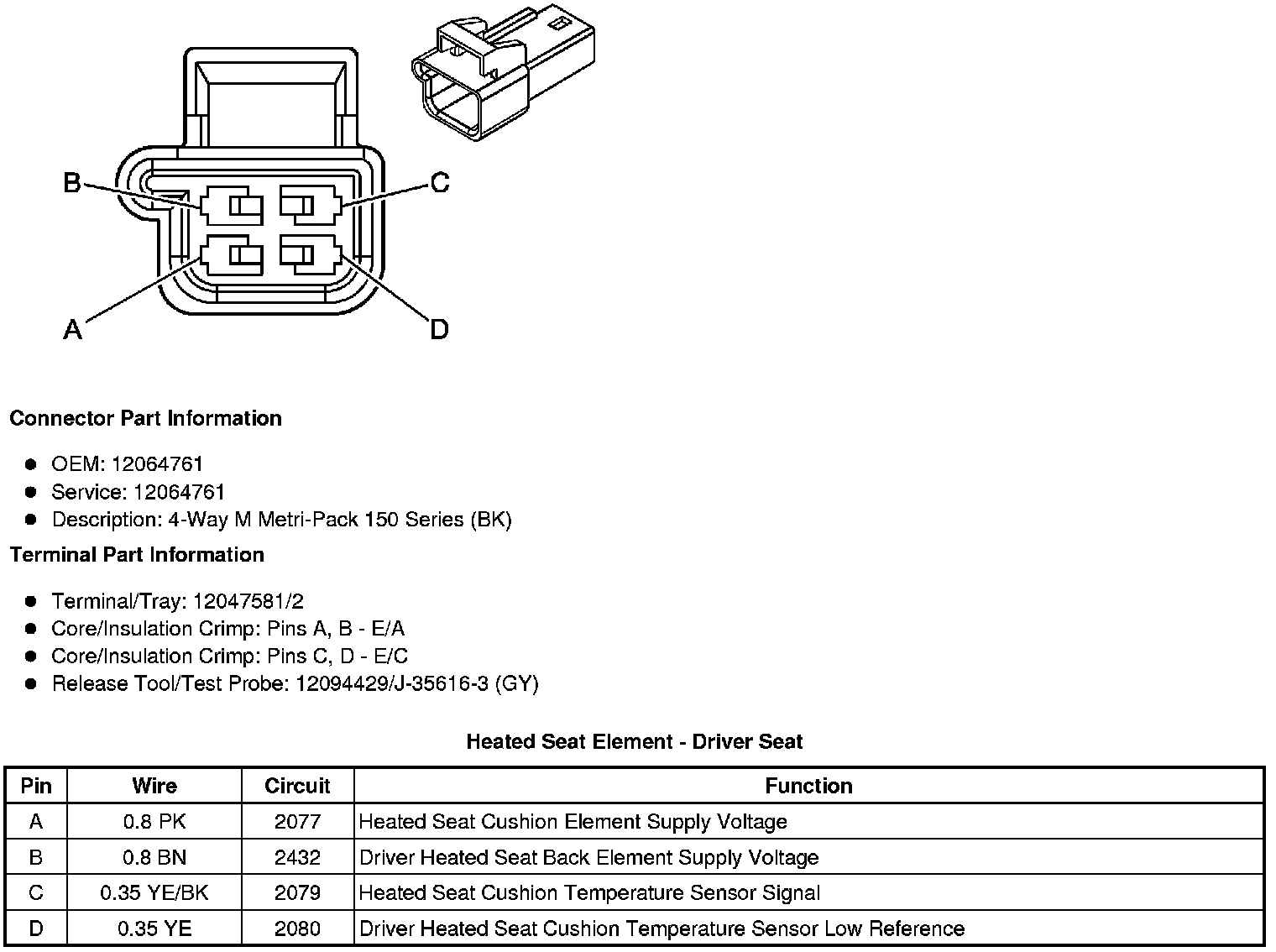

Heated Seat Element - Driver Seat

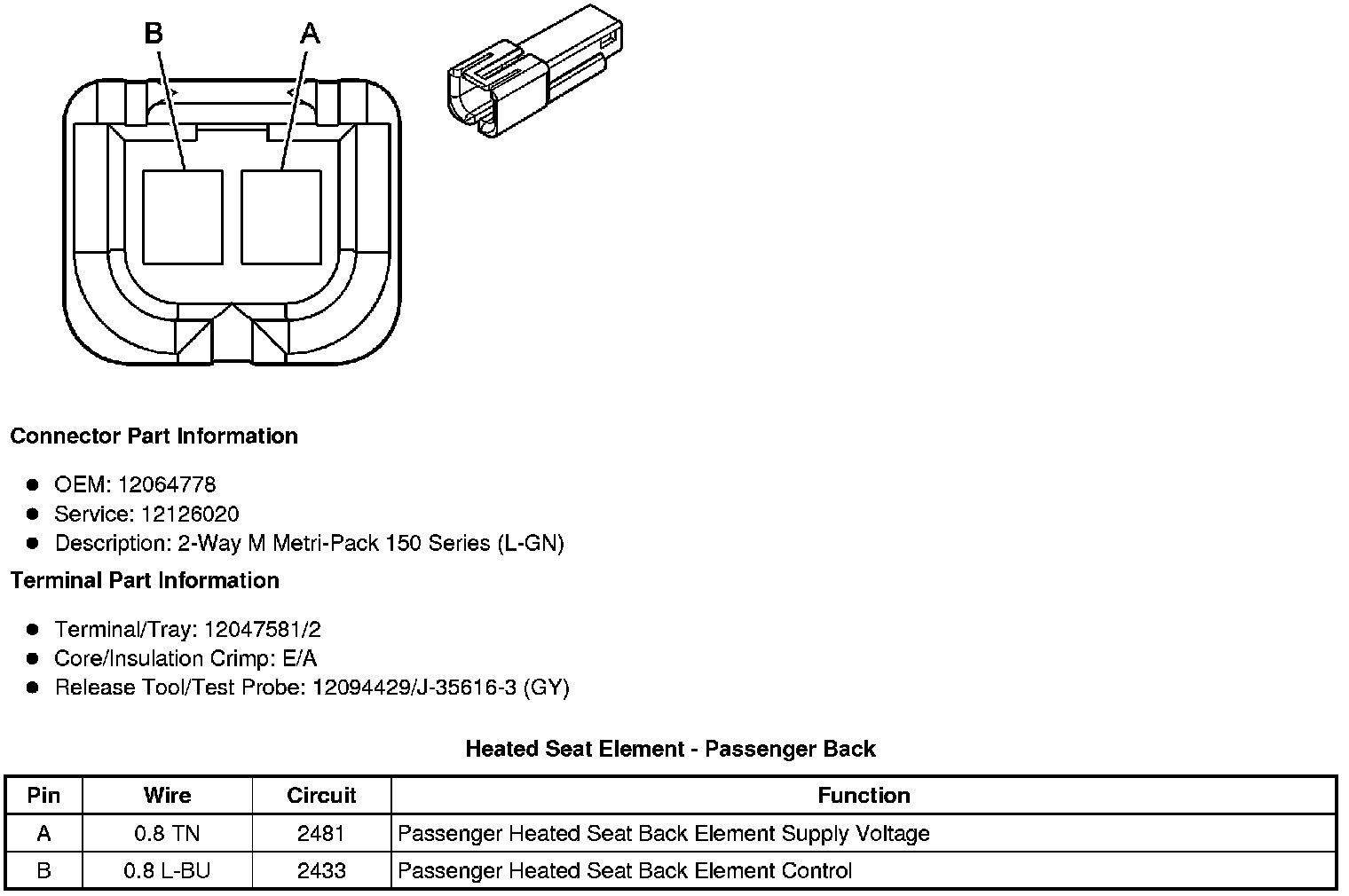

Heated Seat Element - Passenger Back

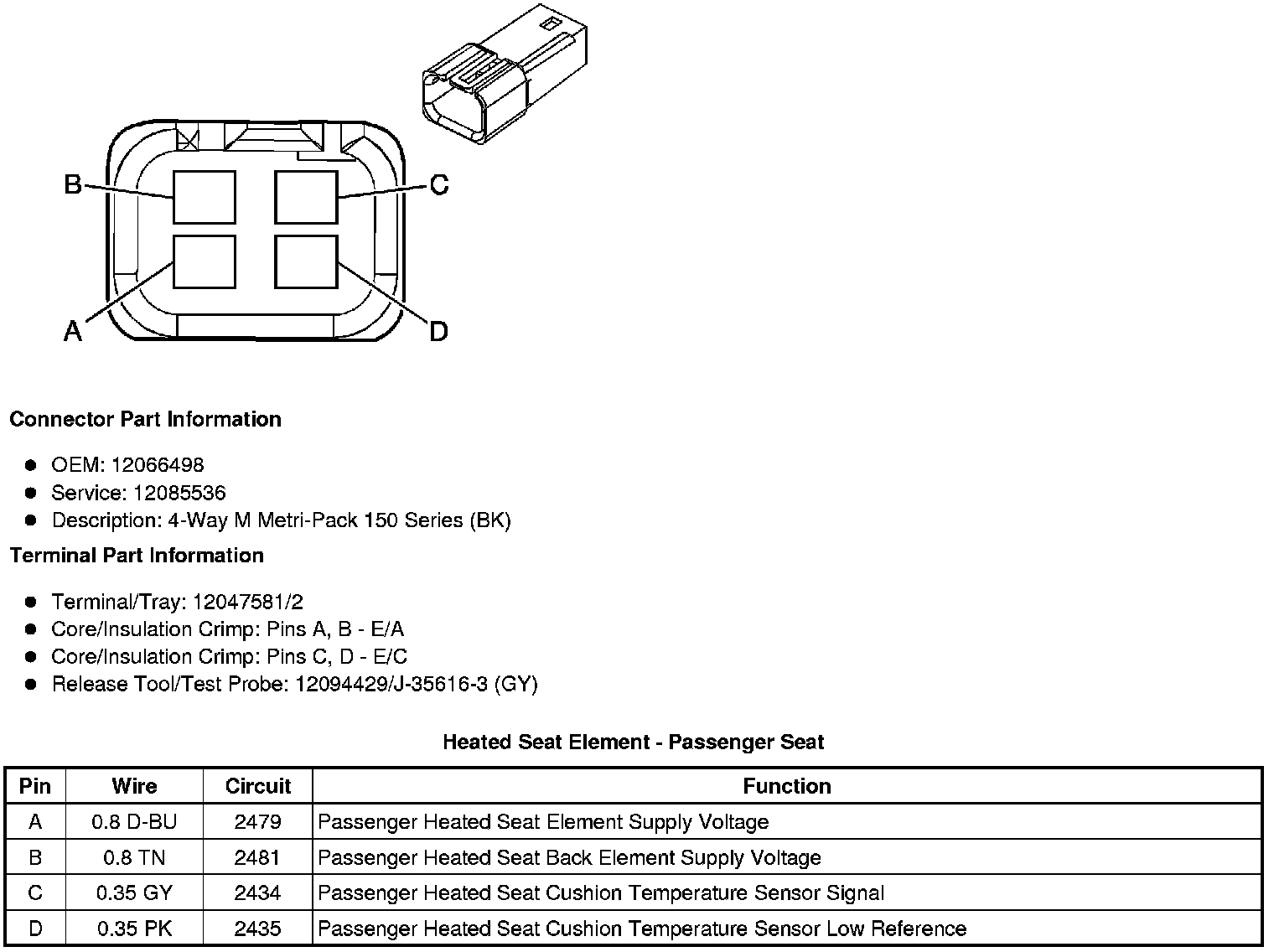

Heated Seat Element - Passenger Seat
