Power Trunk / Liftgate Lock Actuator: Locations

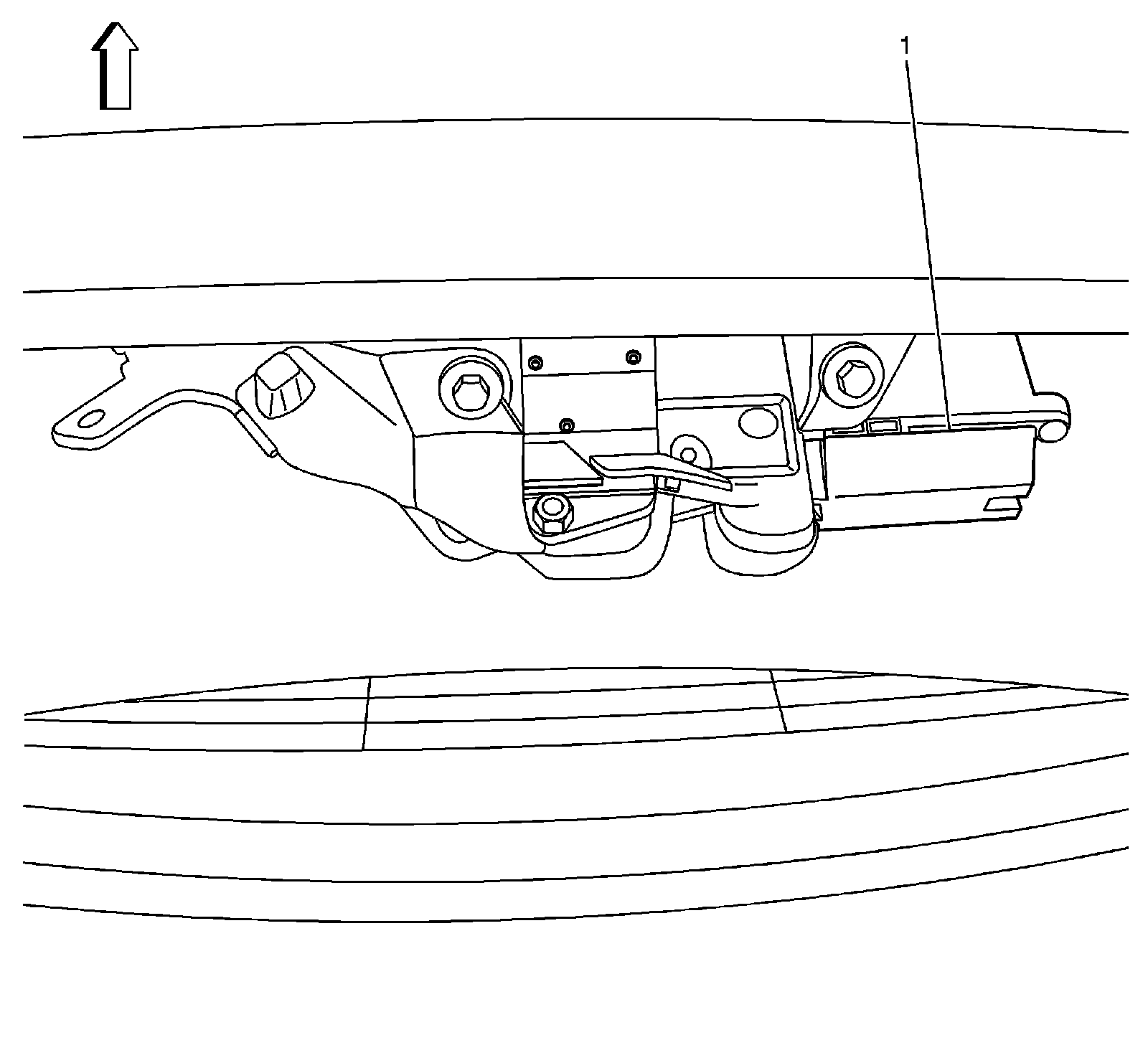

Luggage Compartment/Rear of Vehicle Component Views

Rear Center of Deck Lid




1 - Rear Compartment Lid Release Actuator
