Steering Mounted Controls Transmitter: Diagrams




Component Connector End Views

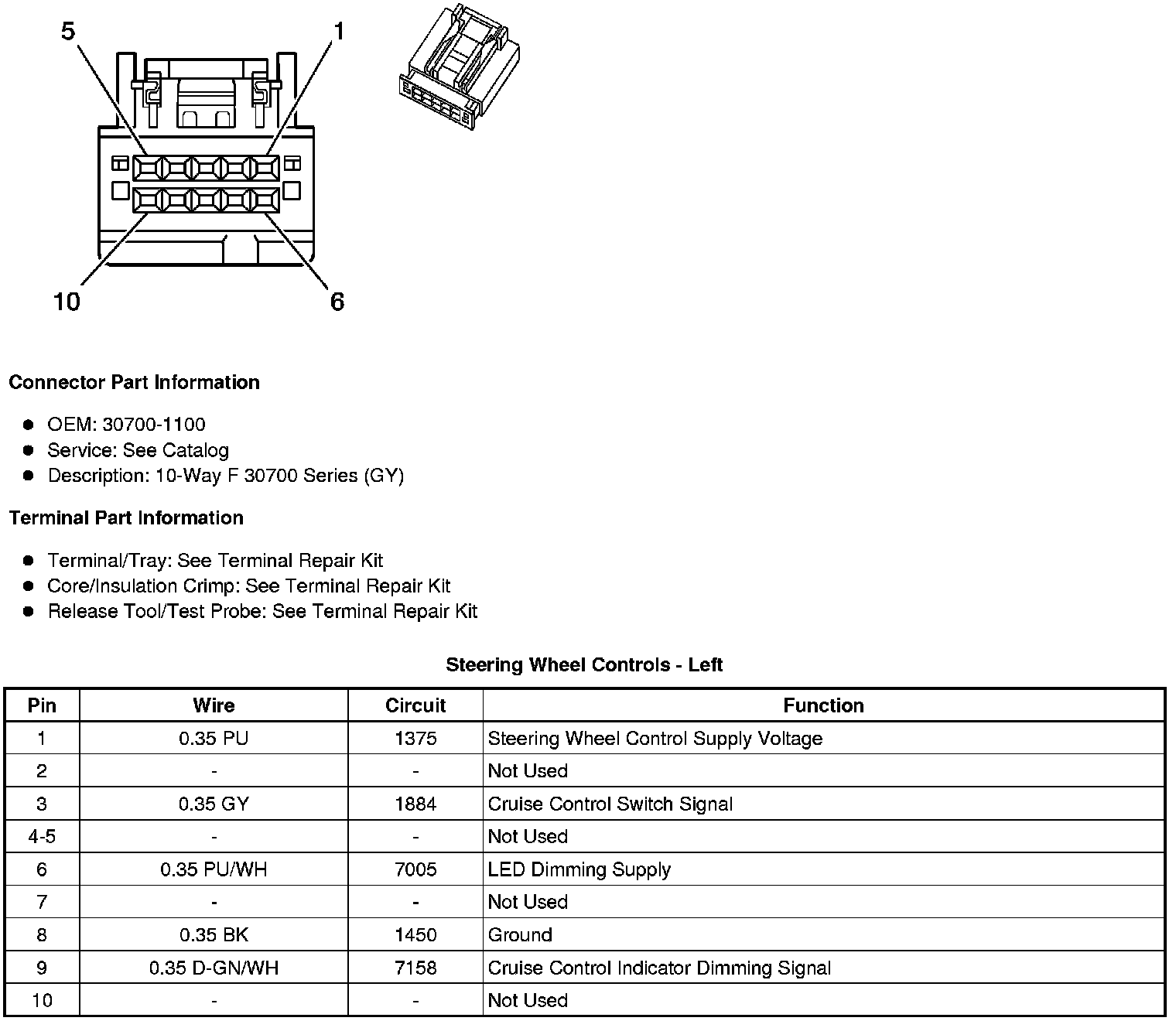

Steering Wheel Controls - Left

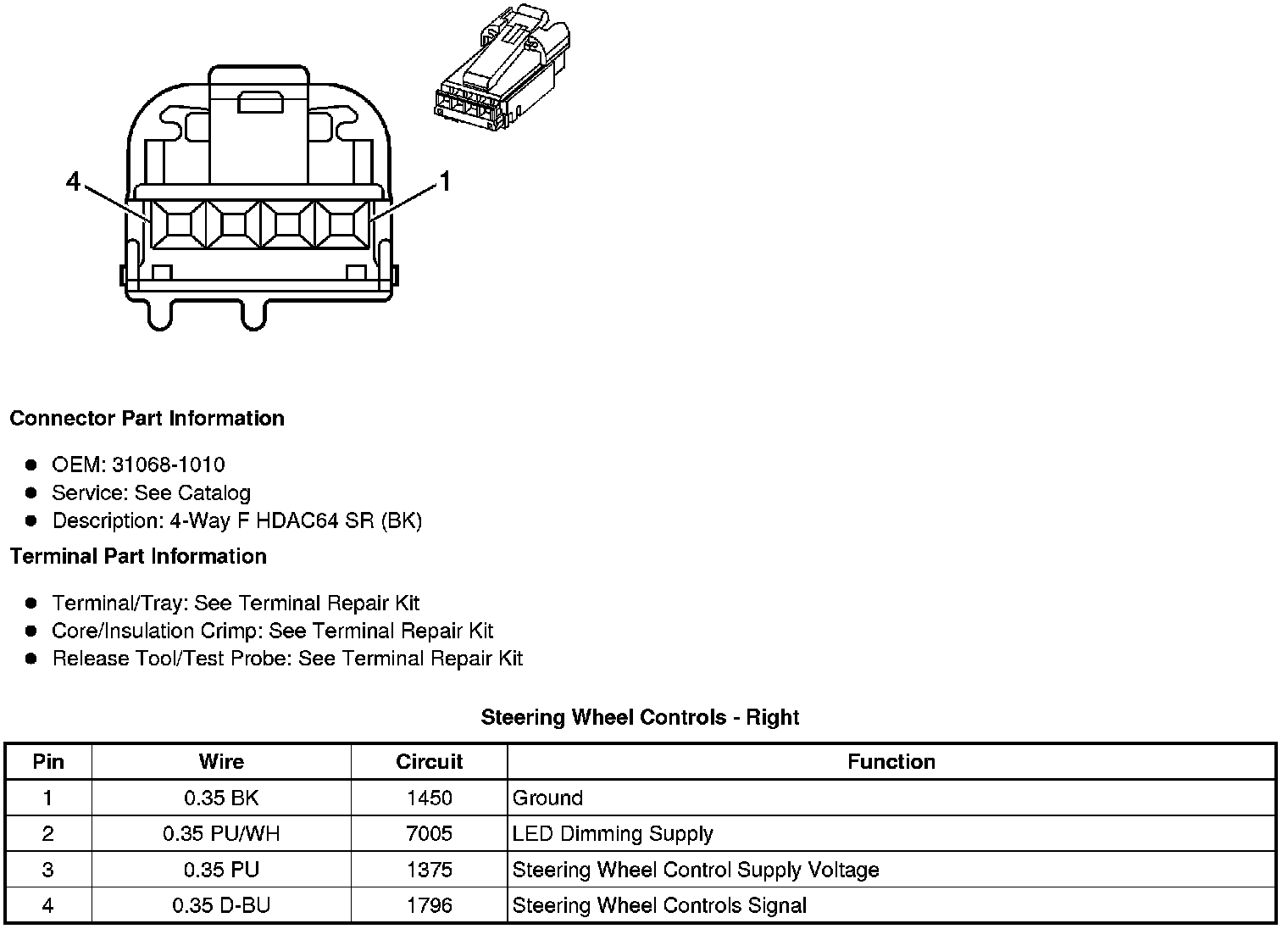

Steering Wheel Controls - Right
