Heated/Cooled Seat Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

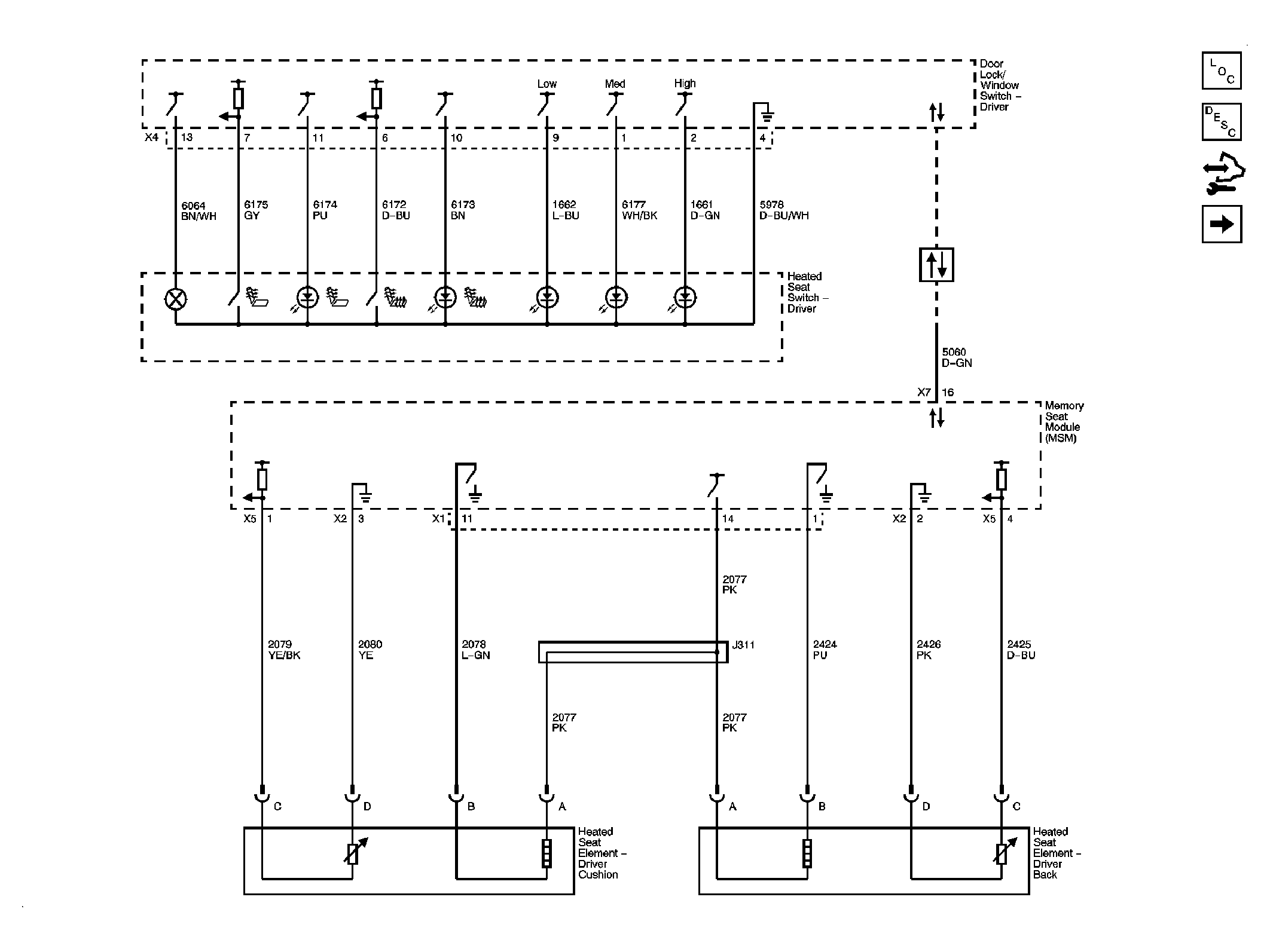

Fig 1: Heated Seat- Driver - Except KB6

GM1907482

Courtesy of GENERAL MOTORS CORP.

Fig 2: Heated Seat- Passenger- Except KB6

GM1907489

Courtesy of GENERAL MOTORS CORP.

Fig 3: Heated/Cooled Seat Module Power and Ground - KB6

GM1907491

Courtesy of GENERAL MOTORS CORP.

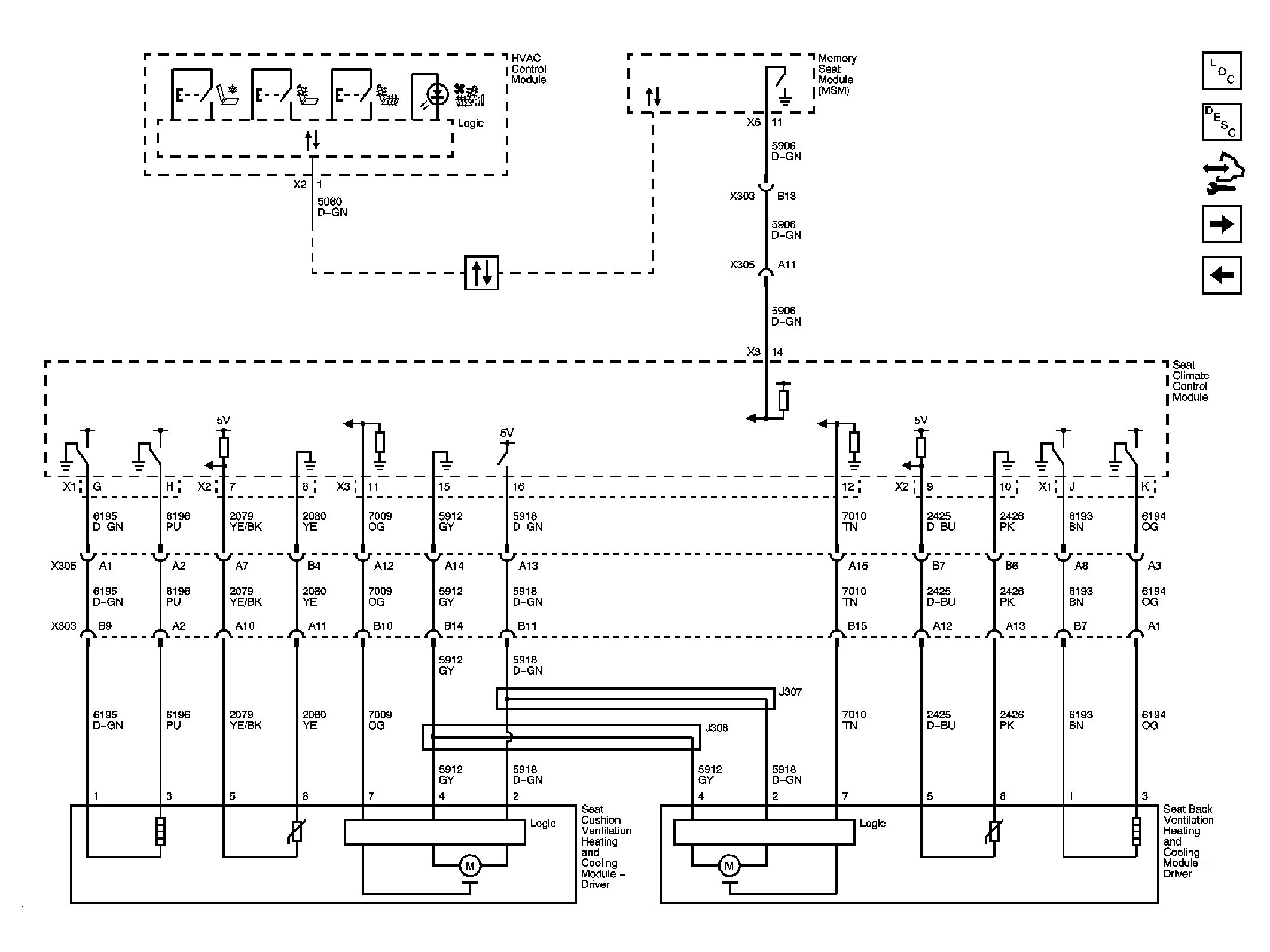

Fig 4: Heated/Cooled Seat- Driver- KB6

GM1907493

Courtesy of GENERAL MOTORS CORP.

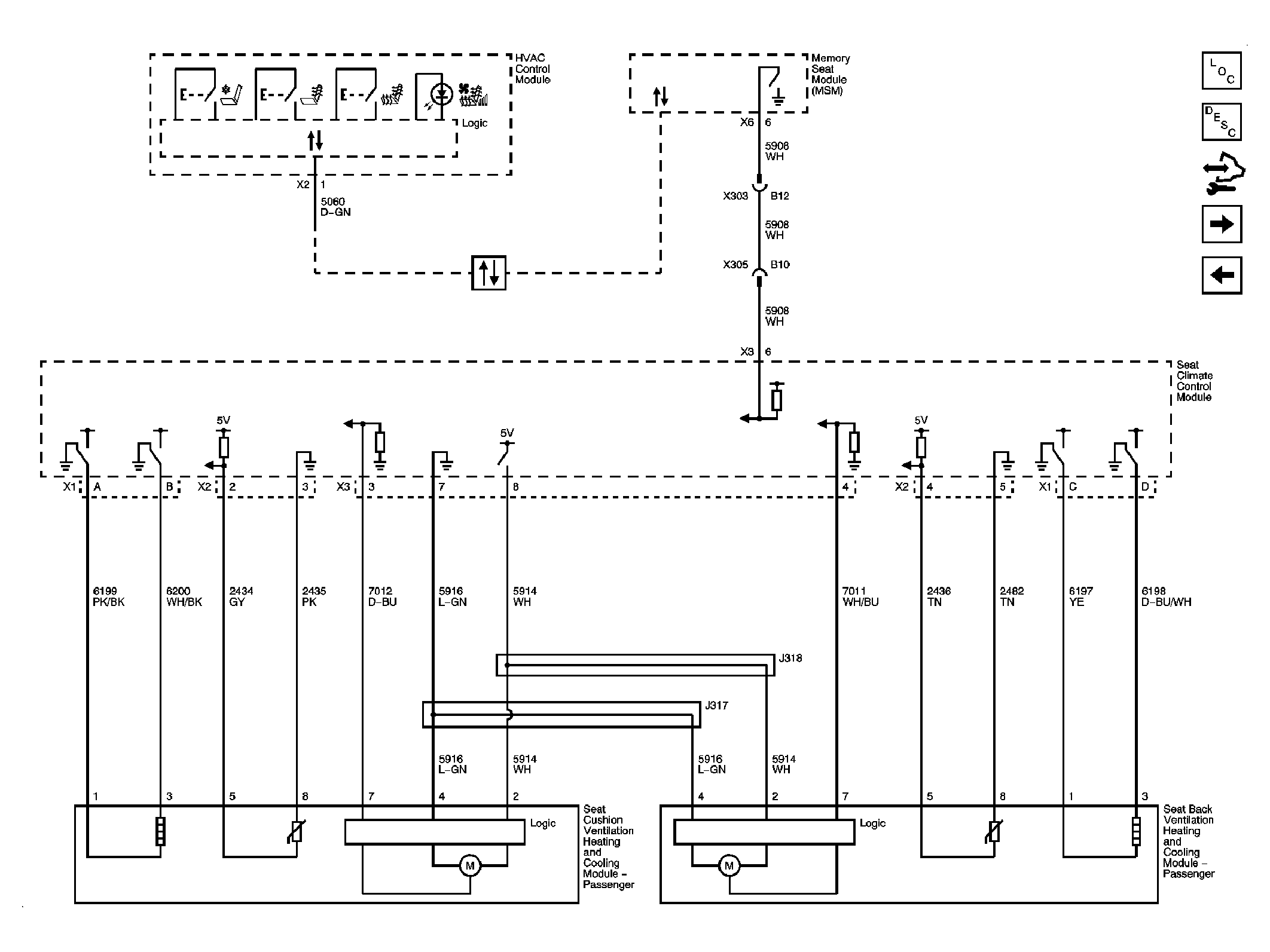

Fig 5: Heated/Cooled Seat- Passenger- KB6

GM1907495

Courtesy of GENERAL MOTORS CORP.

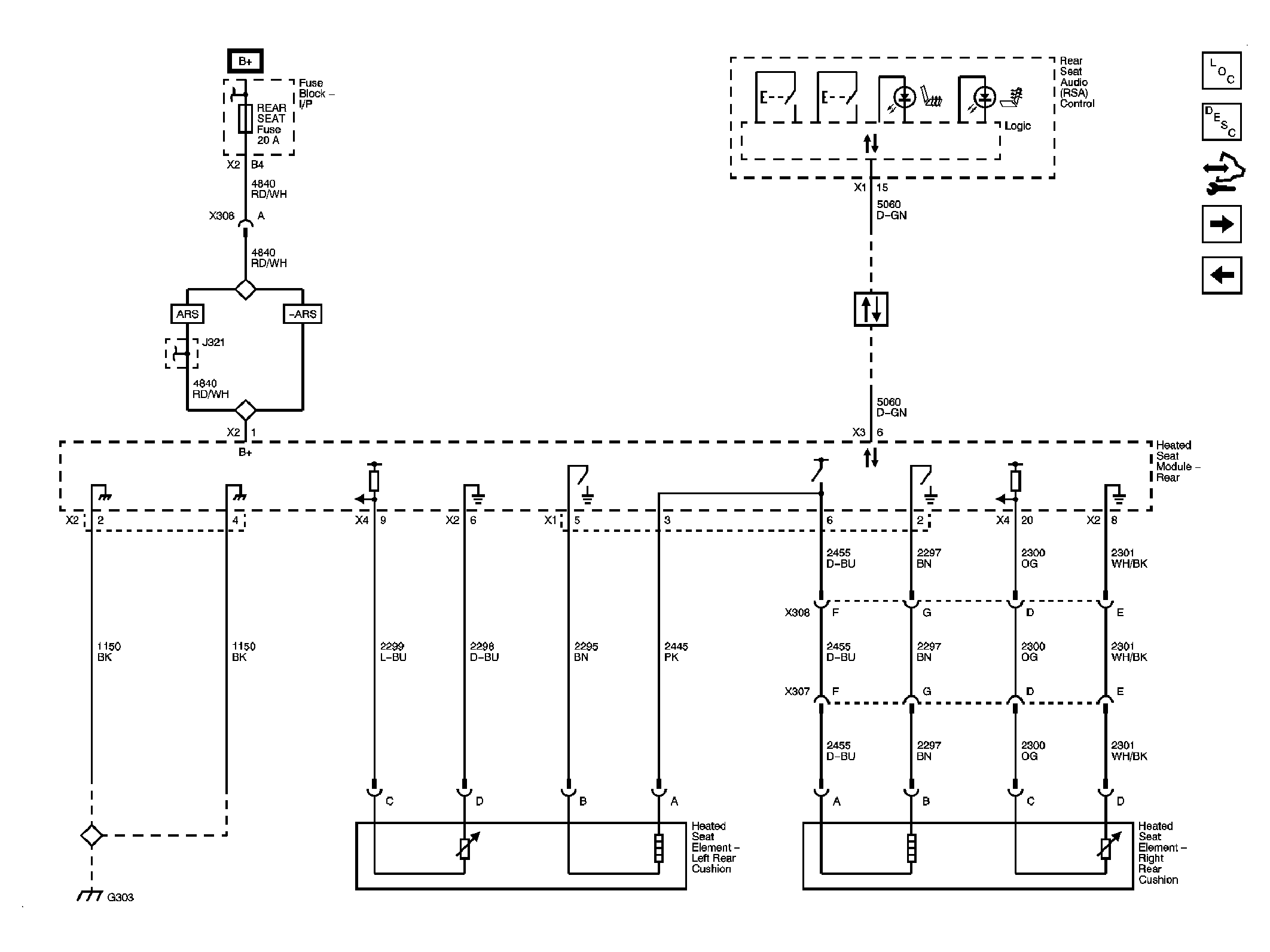

Fig 6: Heated Seat- Rear- KA6

GM1907496

Courtesy of GENERAL MOTORS CORP.

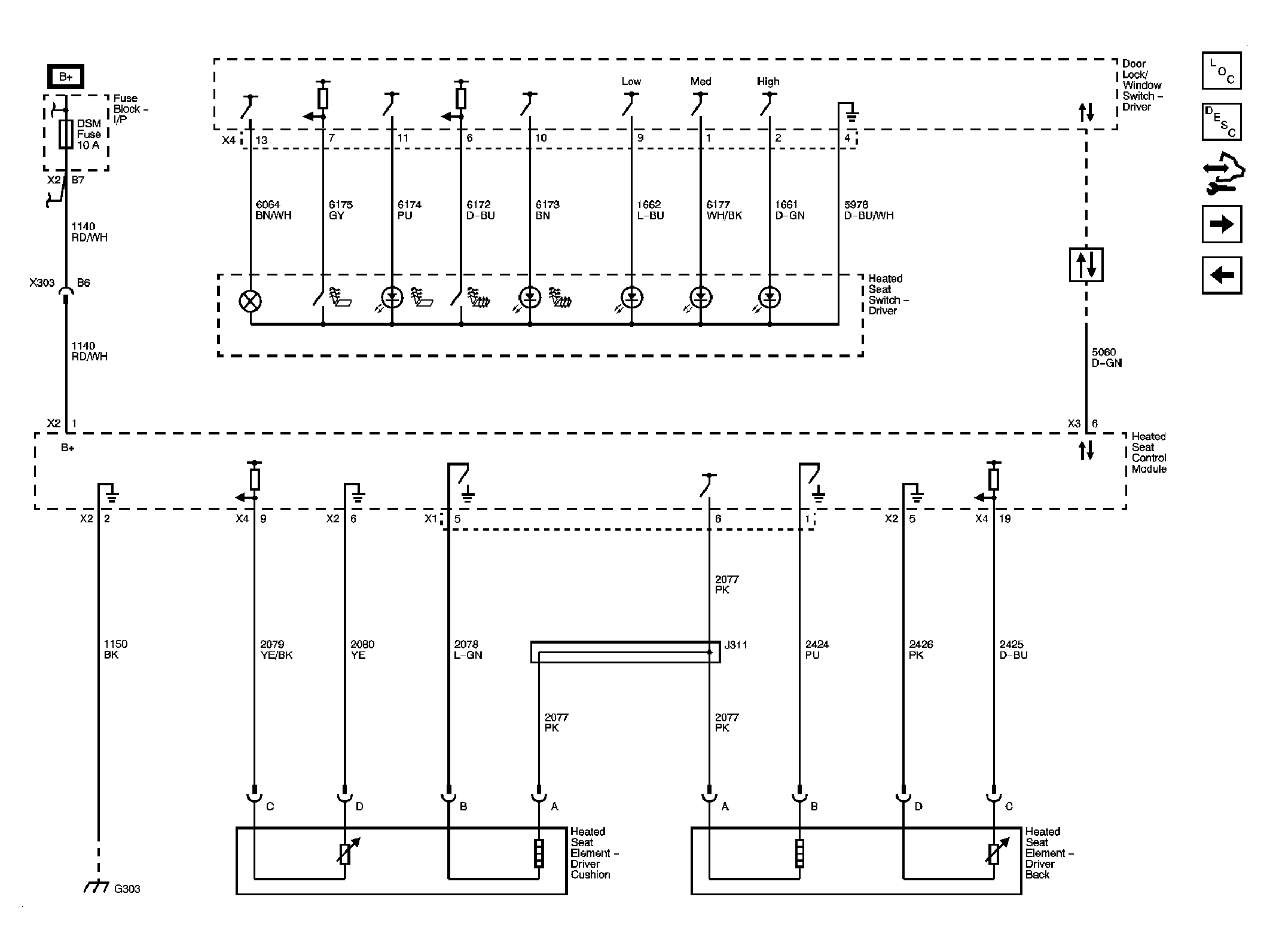

Fig 7: Heated Seat - Driver HP2

GM2001803

Courtesy of GENERAL MOTORS CORP.

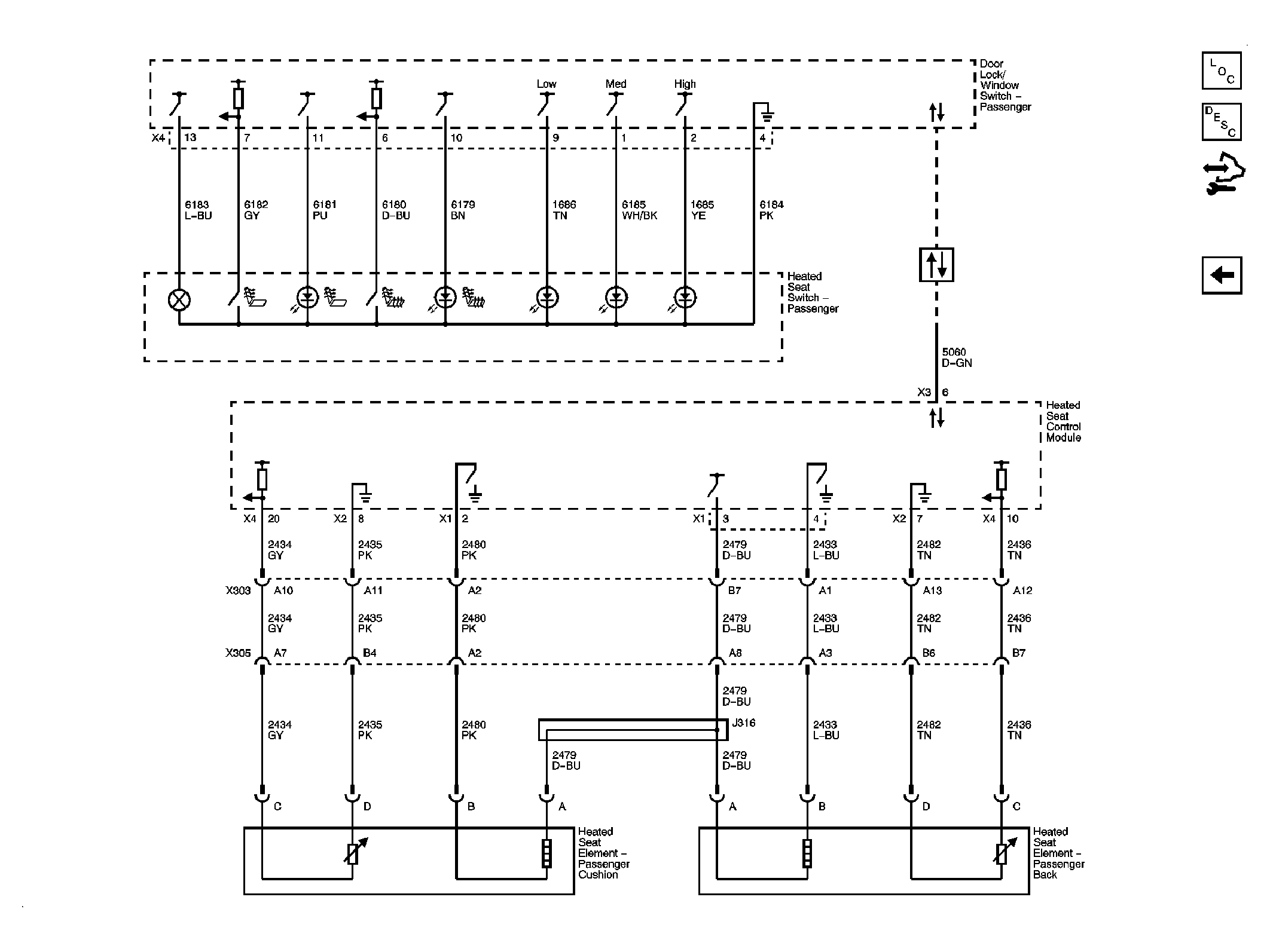

Fig 8: Heated Seat - Passenger HP2

GM2001804

Courtesy of GENERAL MOTORS CORP.
