Instrument Cluster Schematics

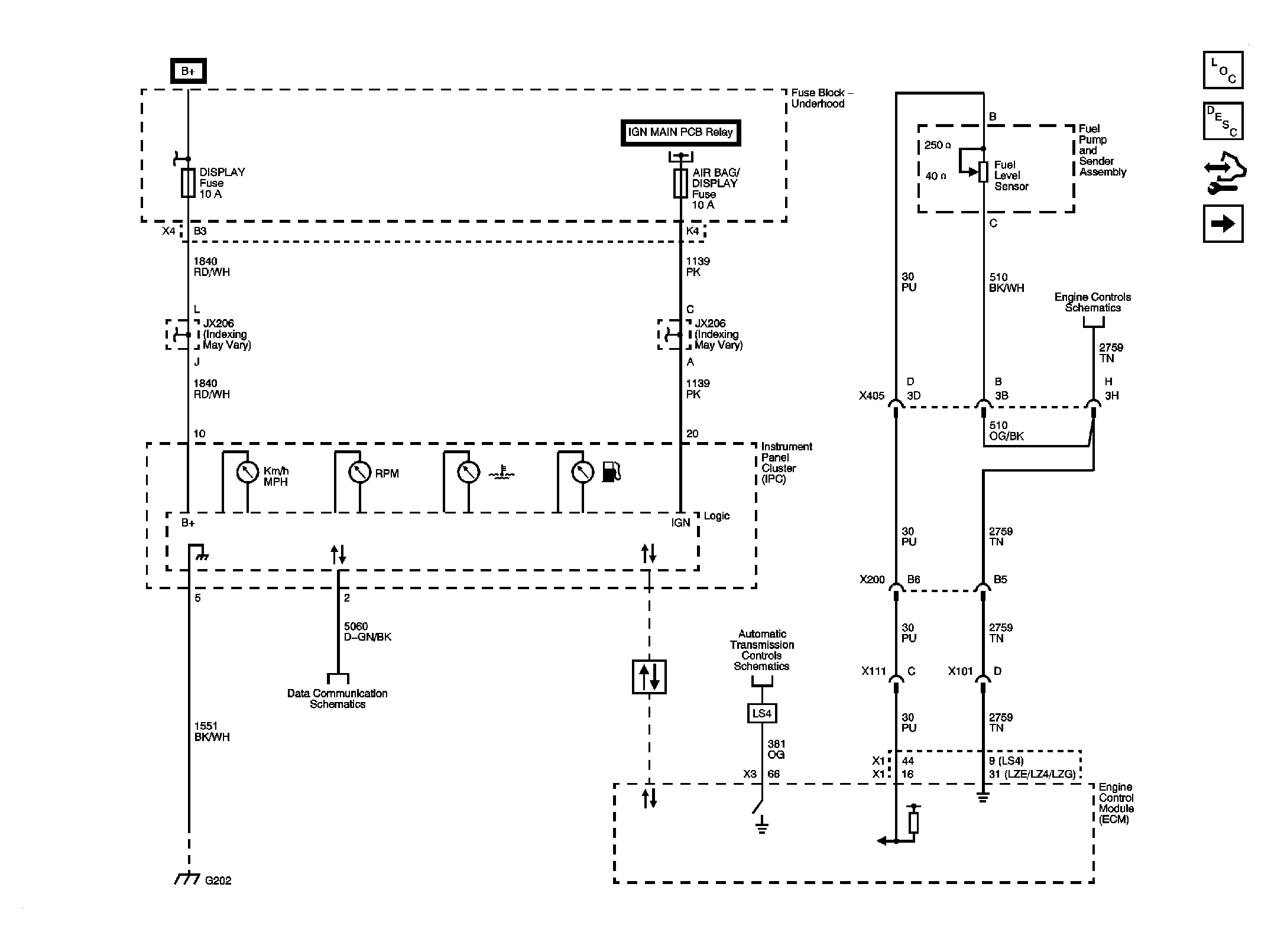

Fig 1: Power, Ground, and Gages Schematic
GM2080318Courtesy of GENERAL MOTORS CORP.

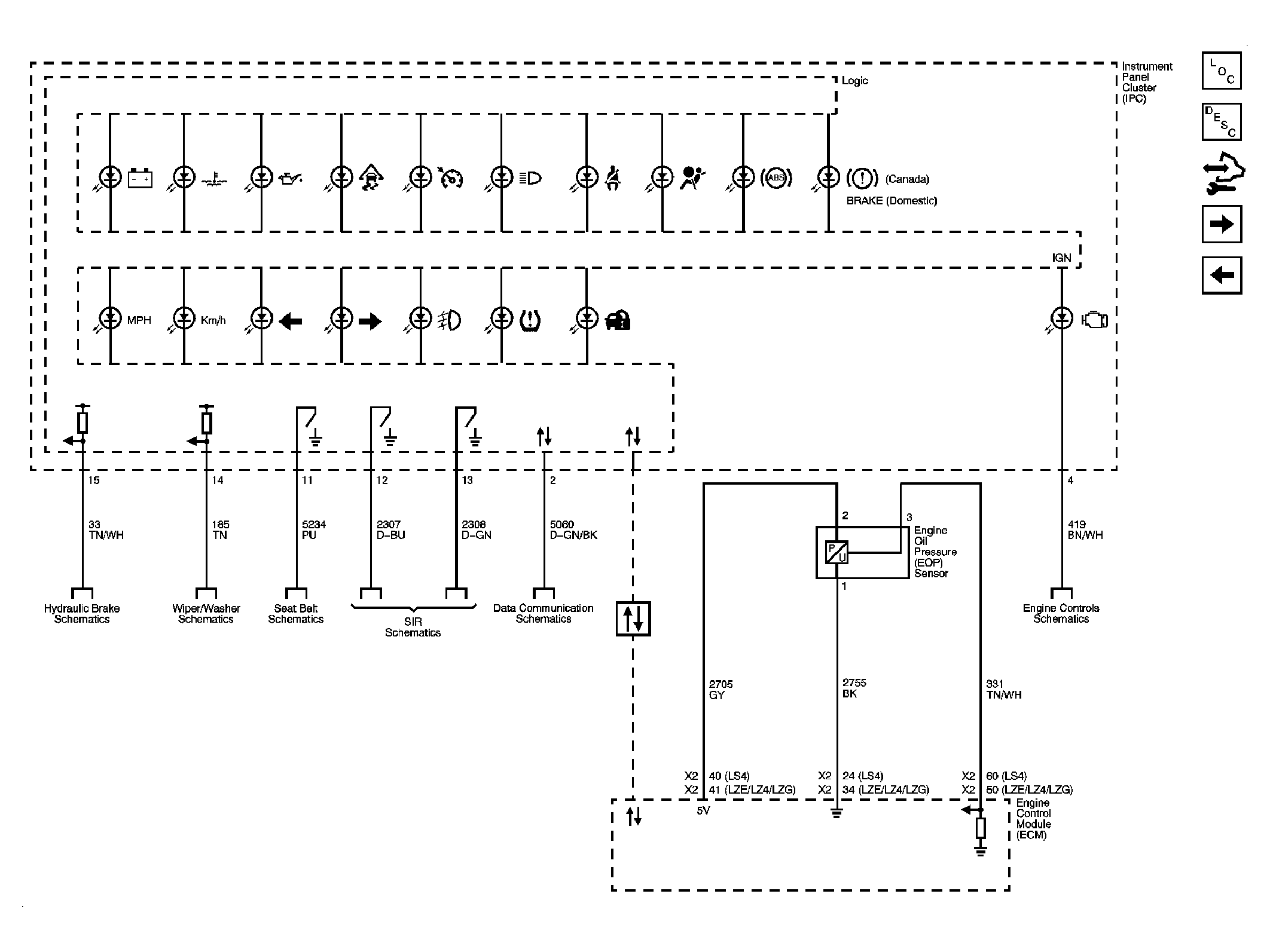

Fig 2: Indicators Schematic
GM2080324Courtesy of GENERAL MOTORS CORP.
Fig 3: Driver Information Center Schematic
GM2080327Courtesy of GENERAL MOTORS CORP.
