Installation Procedure

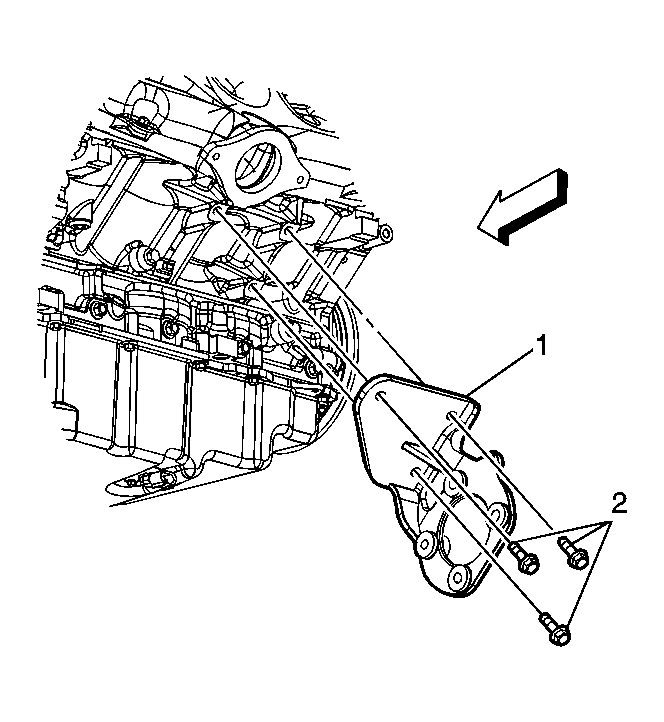

    Fig 1: Transmission Brace & Bolts
    GM1619383Courtesy of GENERAL MOTORS CORP.
  1. Install the transmission brace (1).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the transmission brace bolts (2).

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

    3. Fig 2: View Of Engine Mount Bracket
    GM1551855Courtesy of GENERAL MOTORS CORP.
  3. Install the right engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side .
