Front Fender Liner Replacement

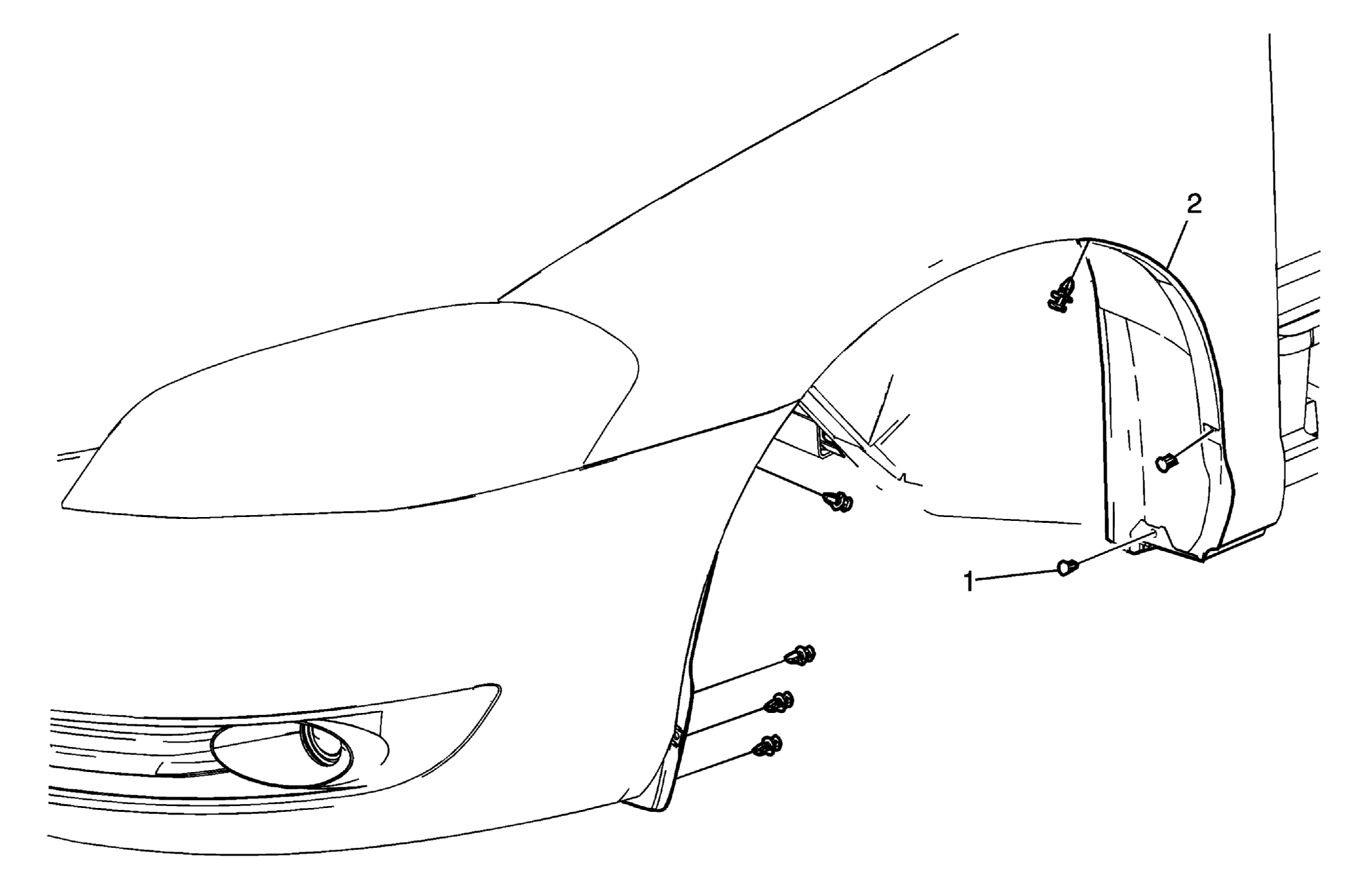

Fig 1: Replacing Front Fender Liner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front wheel. Refer to Tire and Wheel Removal and Installation .
1	Front Fender Liner Retainer (Qty: 7)
2	Front Fender Liner

Callout

Component Name

Preliminary Procedure

Front Fender Liner Retainer (Qty: 7)

Front Fender Liner
