Steering Column Opening Filler Replacement

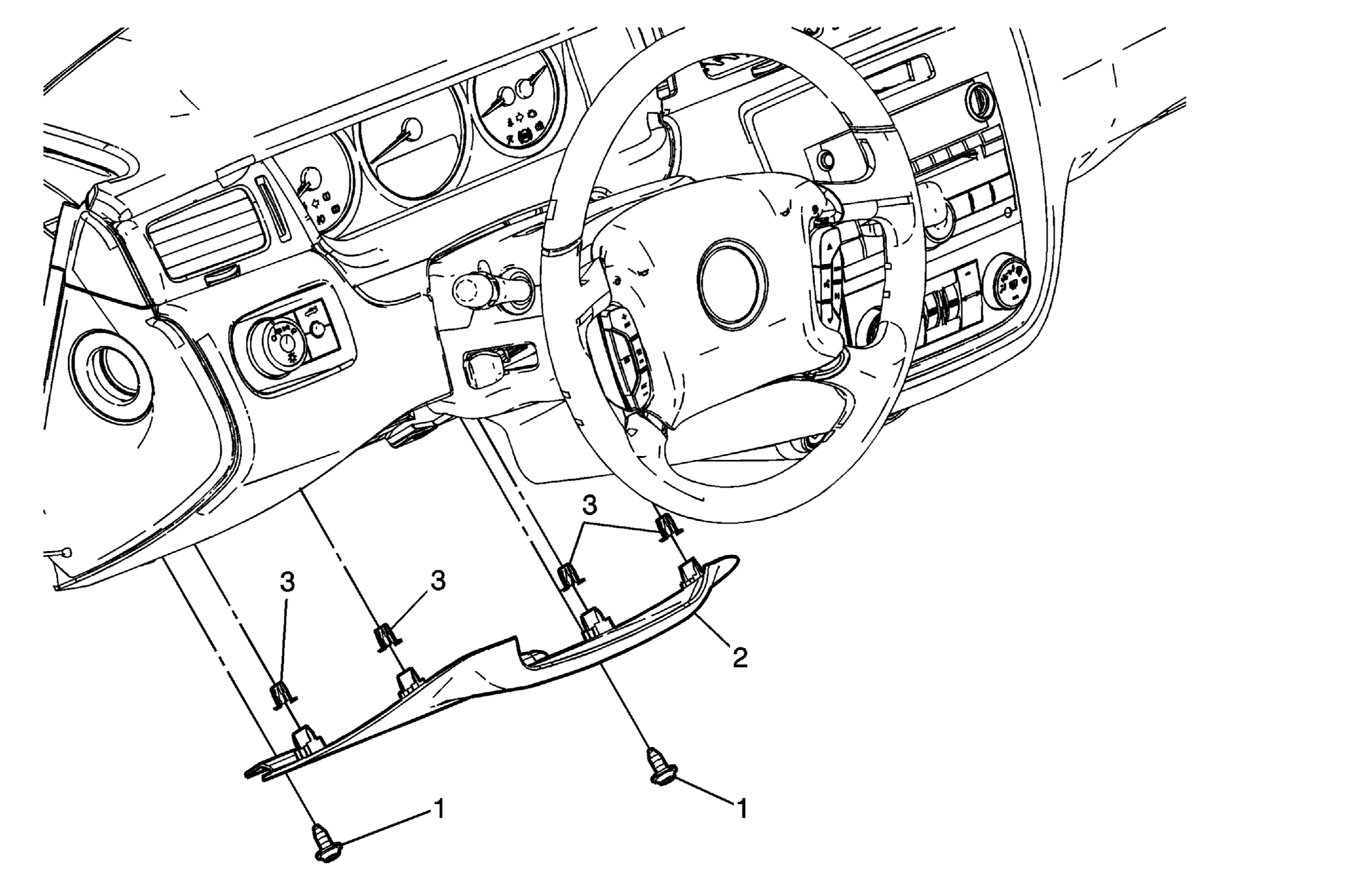

Fig 1: Replacing Steering Column Filler

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column Filler Panel Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  2 N.m (18 lb in)
2	Steering Column Filler Panel Assembly
3	Retainer Clip (Qty: 4)
