Hood Open Assist Rod Replacement

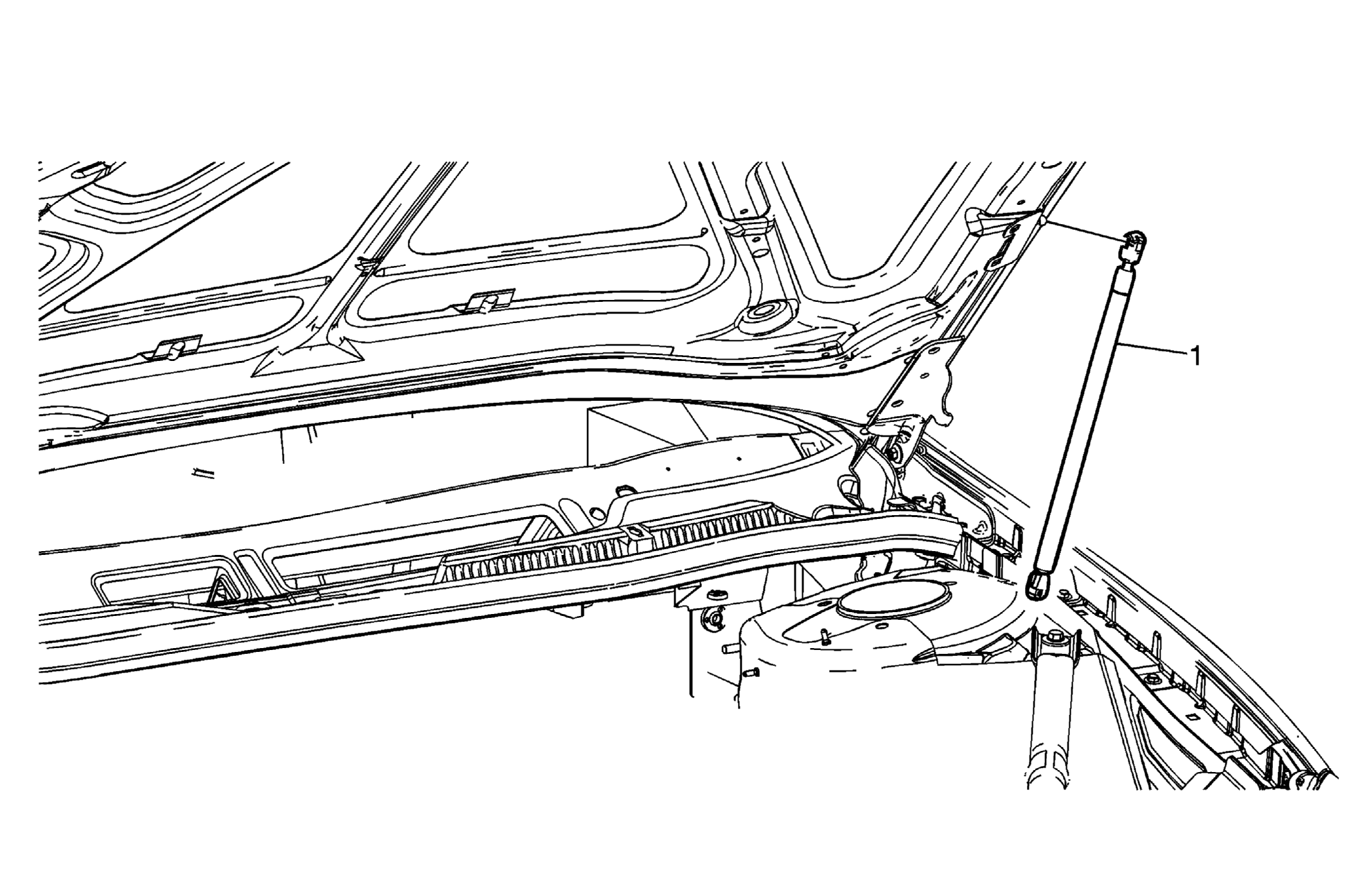

Fig 1: Replacing Hood Assist Rod

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Fastener Caution . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Strut Assembly, Hood WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. CAUTION: Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result. Tip: Remove the metal clip at the ends of the assist rod, then pull away from the stud.

Callout

Component Name

CAUTION: Refer to Fastener Caution .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Strut Assembly, Hood

WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

CAUTION: Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result.

Tip: Remove the metal clip at the ends of the assist rod, then pull away from the stud.
