Hood Insulator Replacement

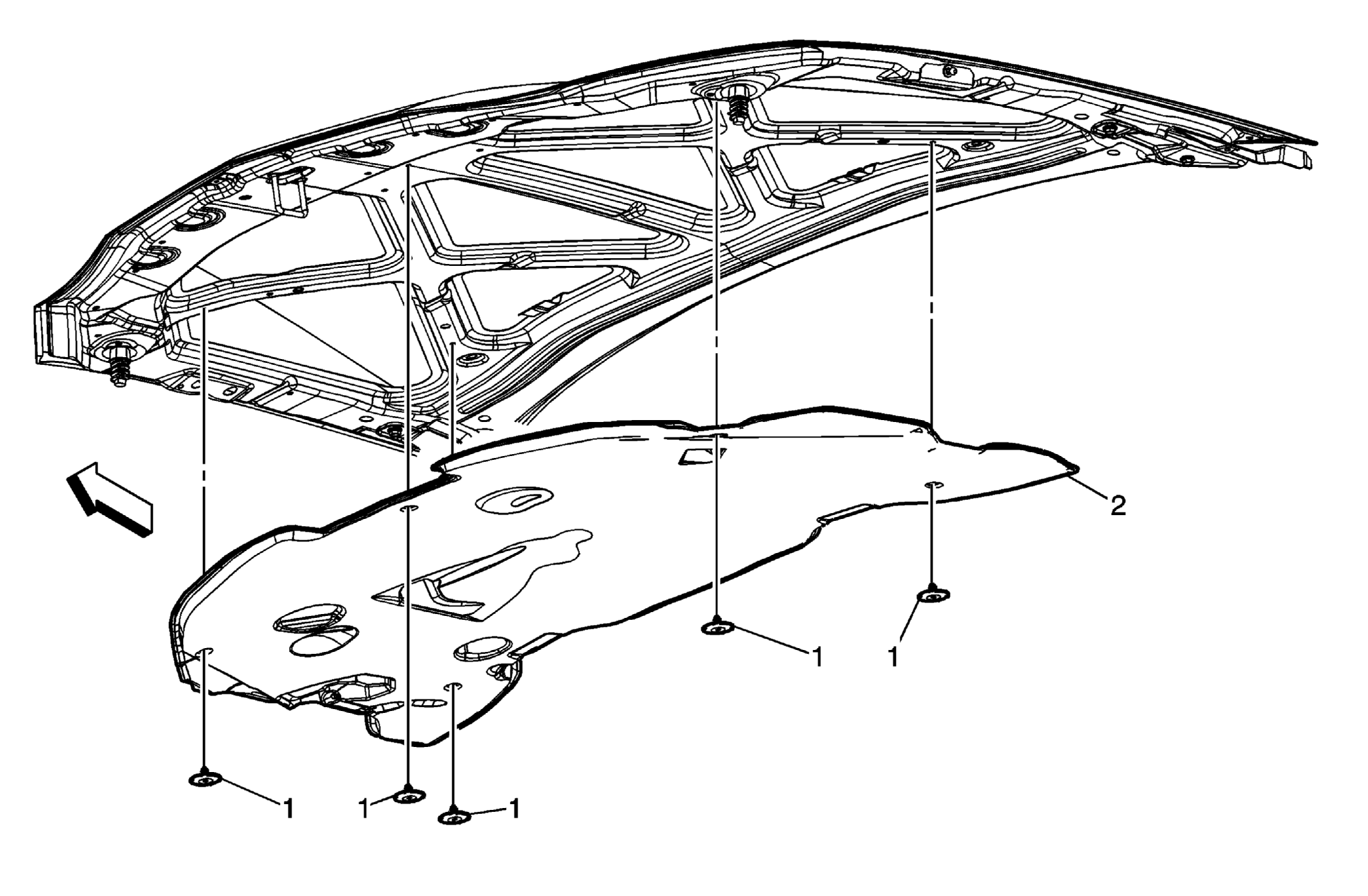

Fig 1: Identifying Hood Insulator Pad & Retainers (Impala)
GM1593467Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications: Fastener Tightening Specifications
1 Retainers, Hood Insulator Pad (Qty: 5)
2 Pad, Hood Insulator
