Manual Transmission Schematics

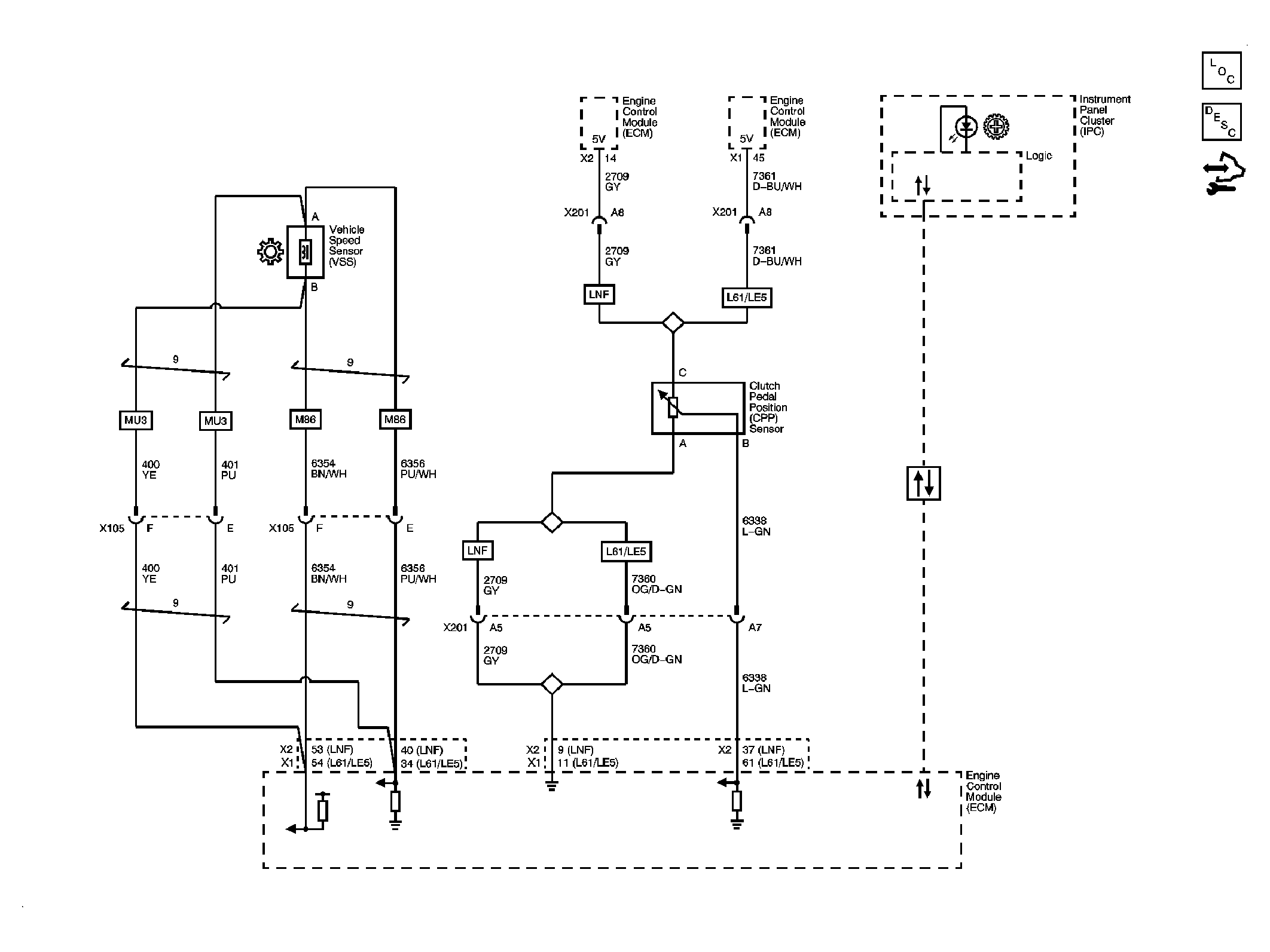

Fig 1: Manual Transmission Circuit Schematic - MU3

GM2085444

Courtesy of GENERAL MOTORS CORP.
