SIR Schematics

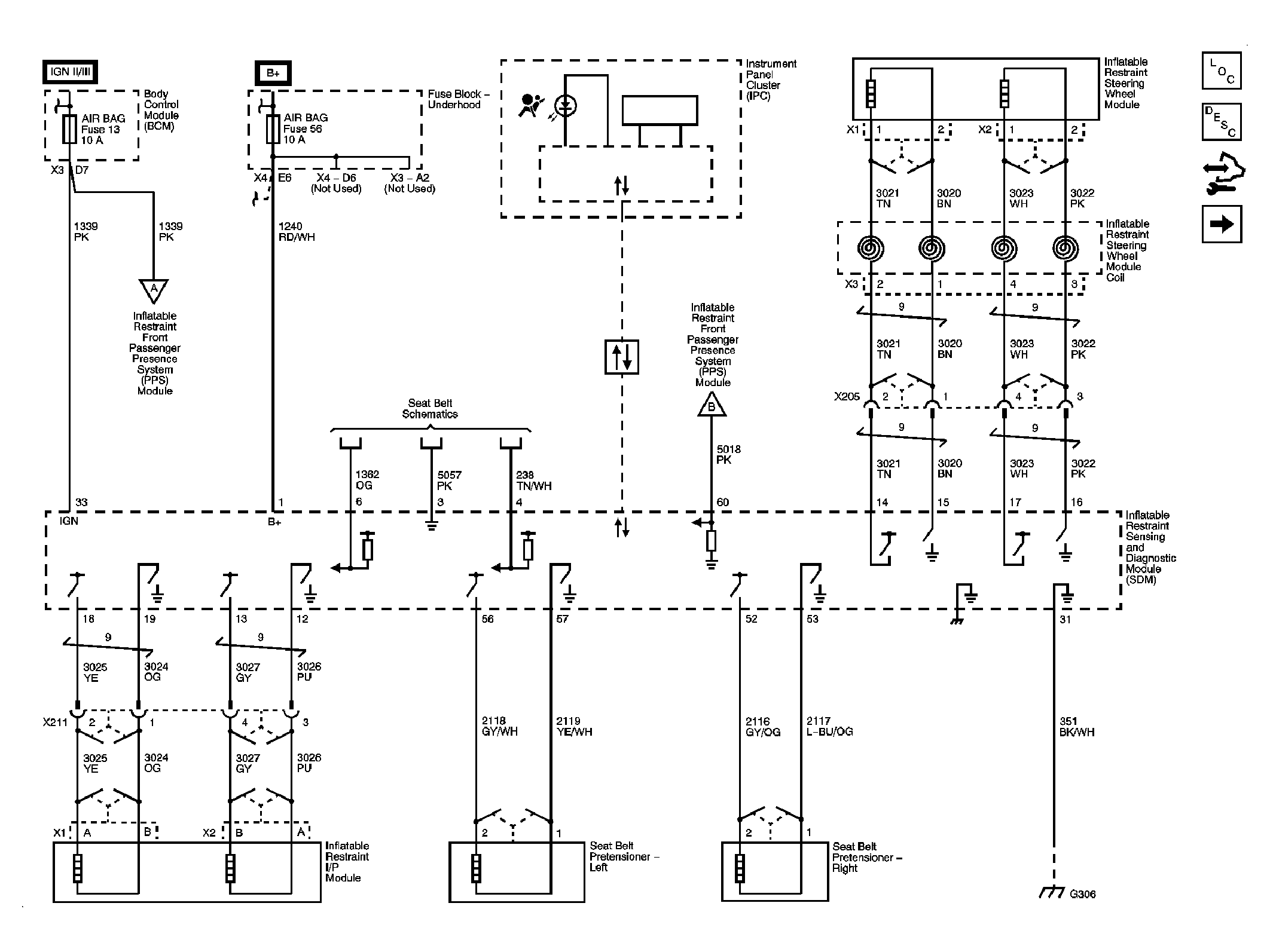

Fig 1: Indicators, Power, Ground, Pretensioners & Front Air Bag Modules Circuit Schematic
GM2085330Courtesy of GENERAL MOTORS CORP.

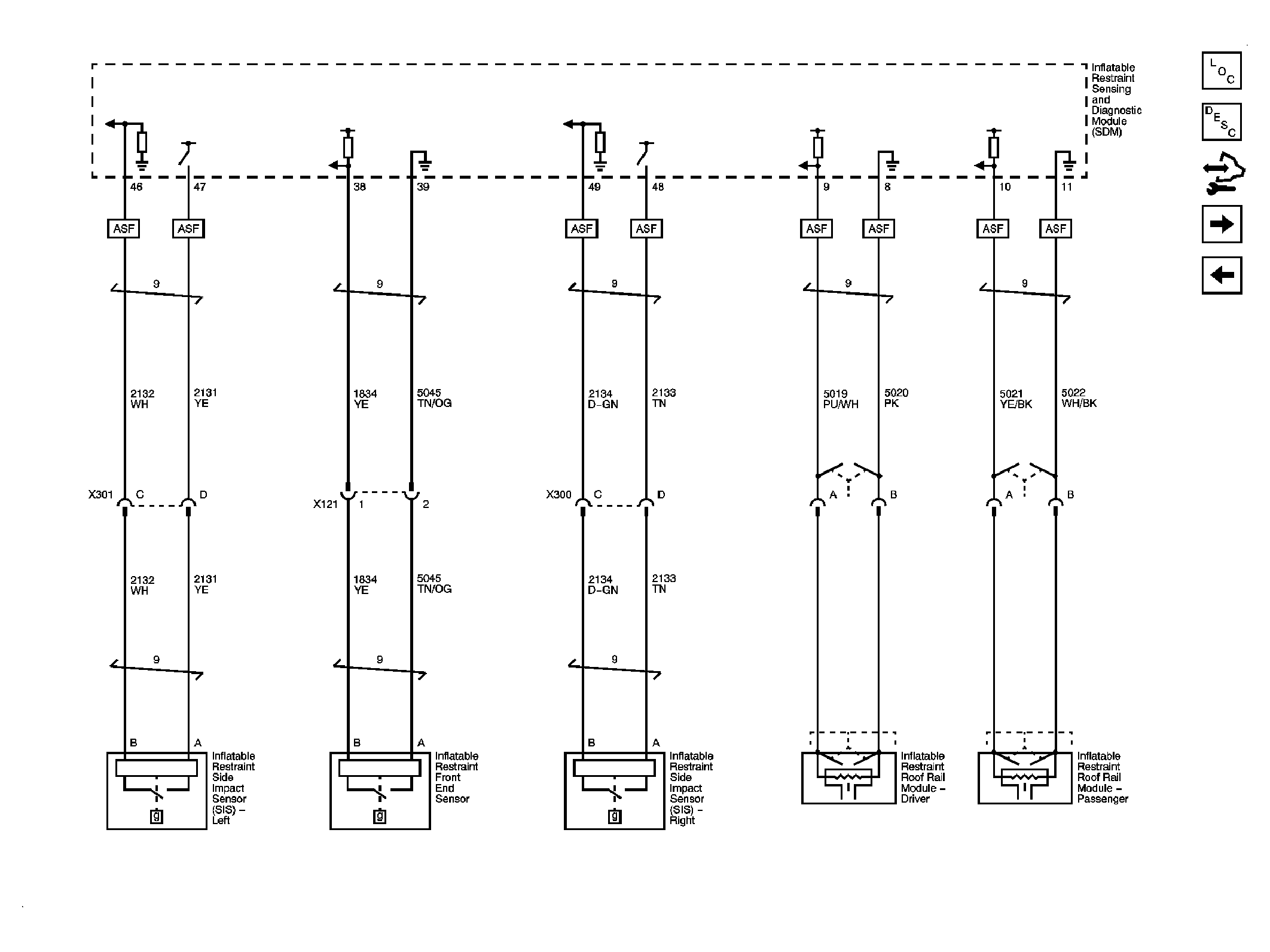

Fig 2: Side Impact (ASF), Roof Rail Module & Front End Sensor Circuit Schematic
GM2085332Courtesy of GENERAL MOTORS CORP.

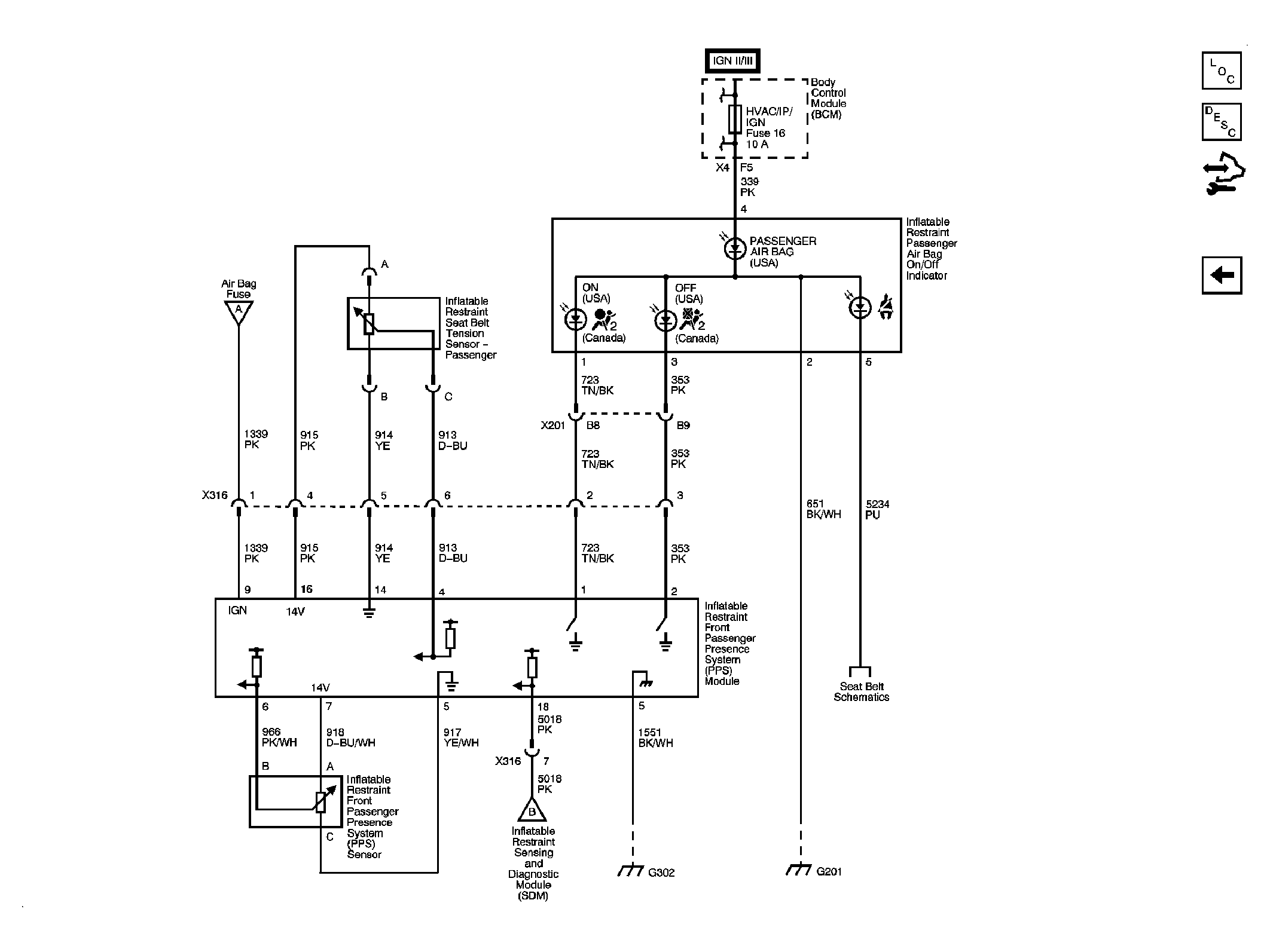

Fig 3: Passenger Presence System Circuit Schematic
GM2085335Courtesy of GENERAL MOTORS CORP.
