Floor Air Outlet Duct Replacement - Center

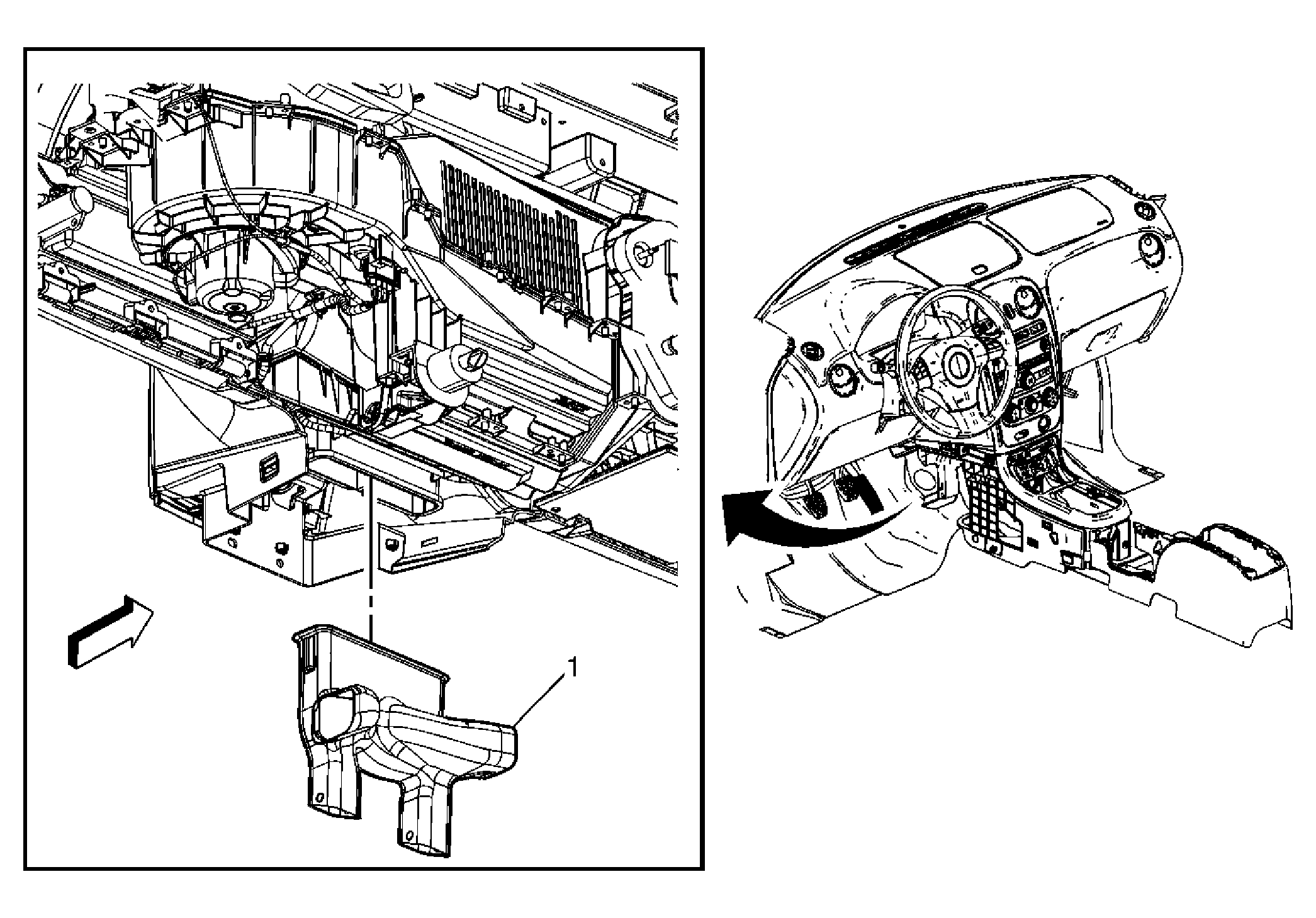

Fig 1: Identifying Center Floor Air Outlet Duct

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the center front floor console extension. Refer to Front Floor Console Extension Replacement - Center .
1	Rear Floor Air Duct Tip:  Lift up on the rear floor air duct and push the bottom of the duct toward the front of the vehicle to remove from the HVAC module.
