Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (LNF)

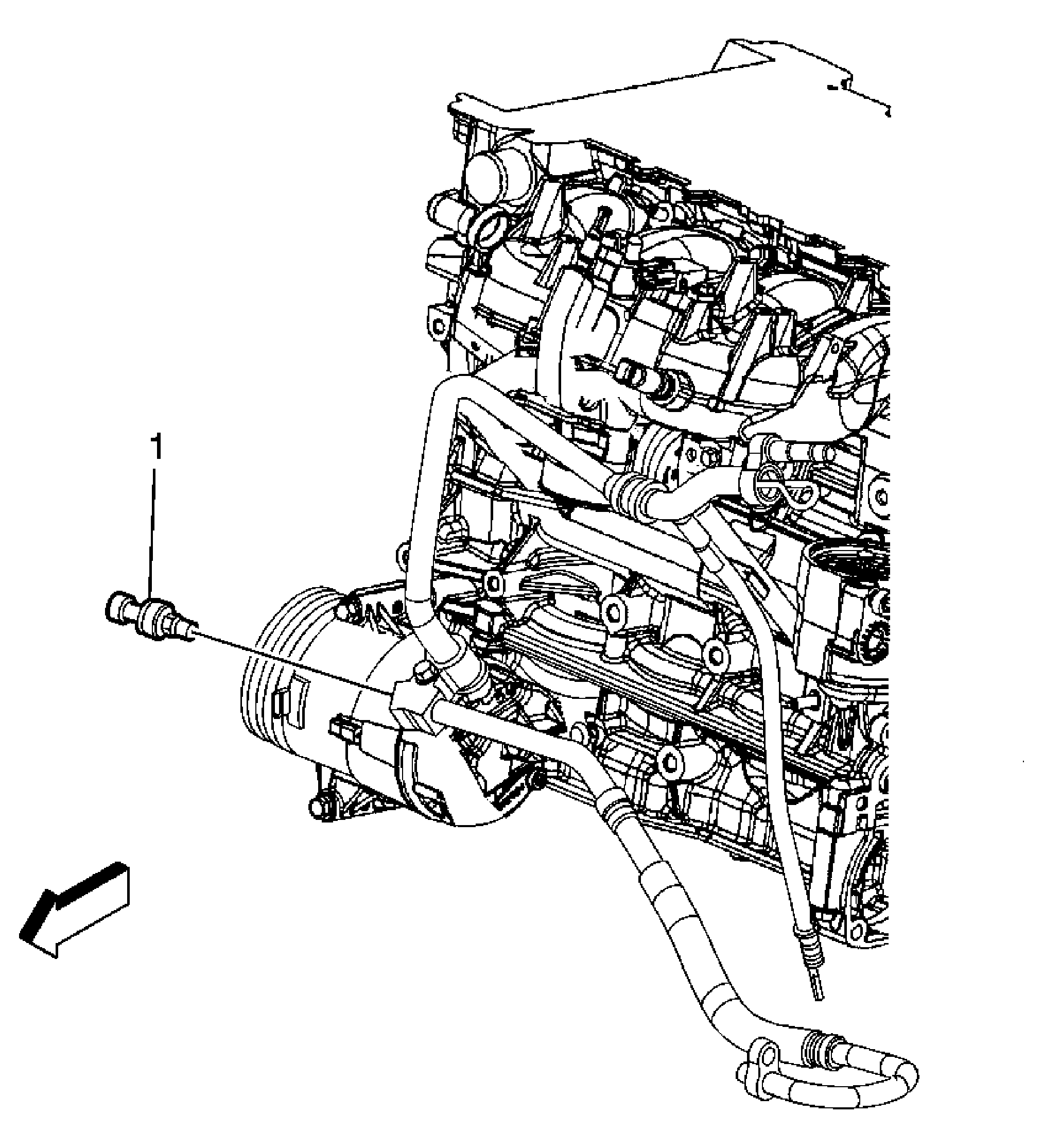

Fig 1: Identifying Air Conditioning (A/C) Refrigerant Pressure Sensor
GM2010116Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Disconnect the A/C compressor pressure sensor electrical connector.
1 A/C Refrigerant Pressure Sensor
CAUTION: Refer to Fastener Caution .

Procedure:
Remove and discard sealing washers. Refer to Sealing Washer Replacement .

Tighten:  5 N.m (44 lb in)
