Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

Fig 1: PNP Switch Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: TCM, Power & Ground Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

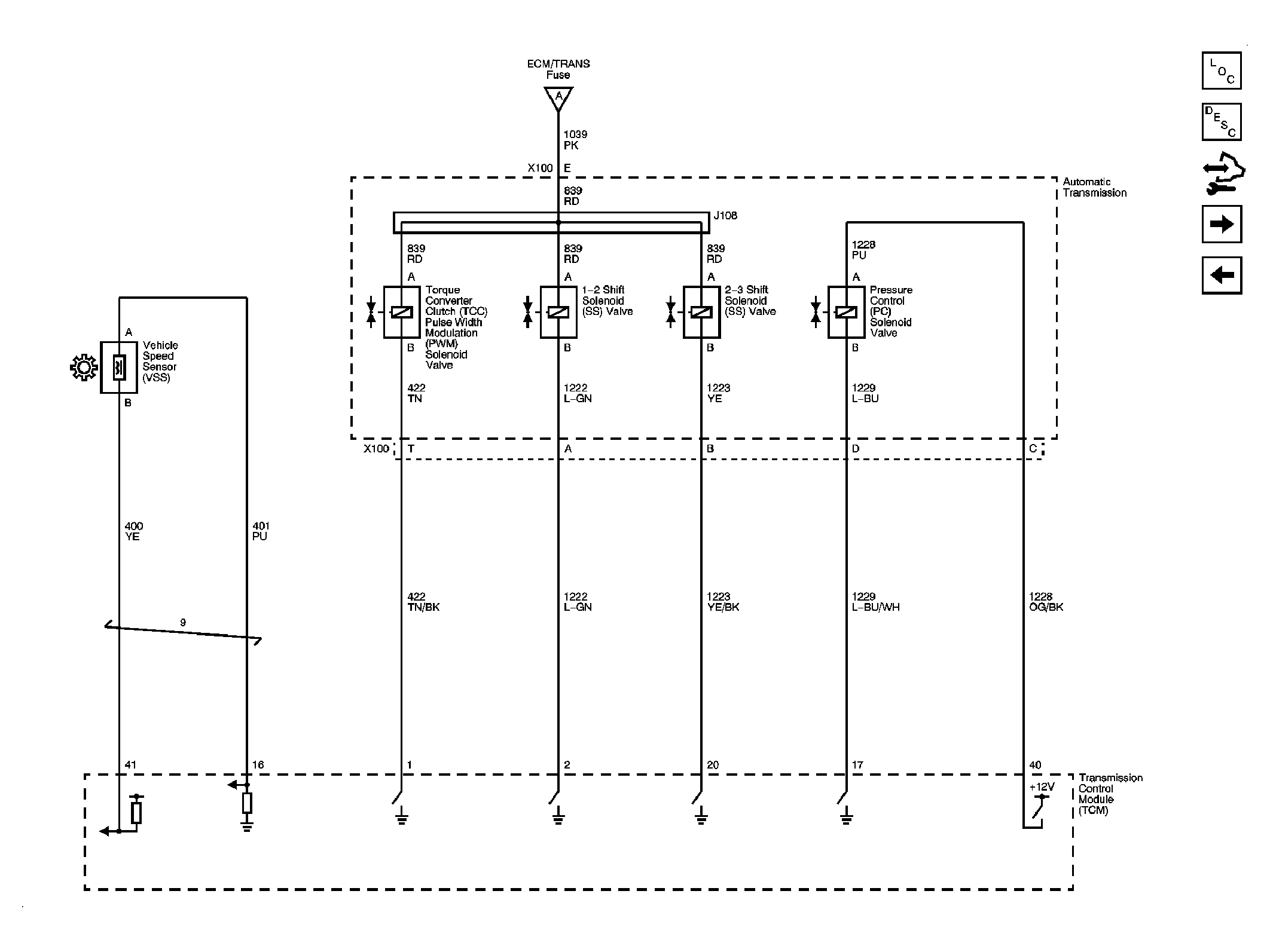

Fig 3: Transmission Solenoid & VSS Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Transmission Switches, TFT & A/T ISS Sensors Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
