Removal Procedure

WARNING: This page is about a different variant/trim than selected.
CAUTION: The EVAP canister may have released carbon particles which caused this part to fail and may cause damage to other components. Check the EVAP canister for loose carbon before returning the vehicle to service.

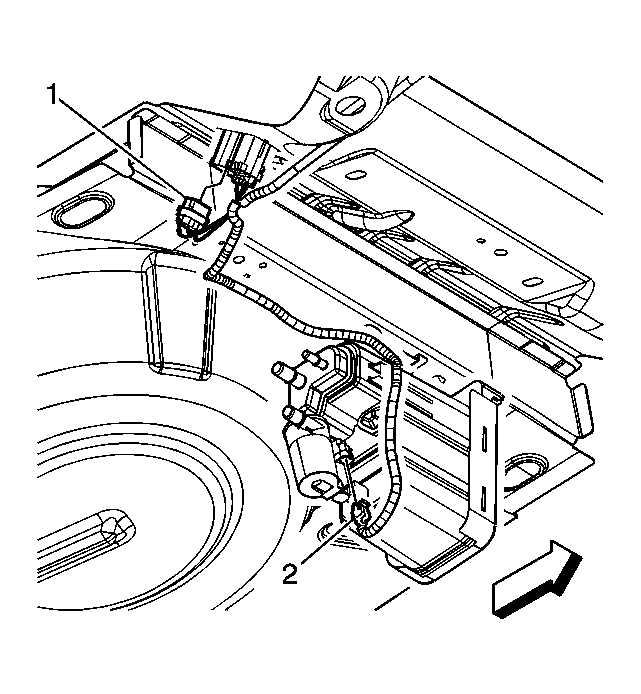

    Fig 1: Identifying Fuel Tank Electrical Connector
    GM1636801Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the evaporative emission (EVAP) canister vent solenoid valve electrical connector (2).
  3. Remove the harness clip from the canister.
  4. Clean any dirt or debris that may be present around the EVAP canister.
    5. Fig 2: Identifying Fuel Fill Pipe Hose
    GM1636704Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the fresh air tube quick connect fitting (3) from the vent solenoid valve. Refer to Plastic Collar Quick Connect Fitting Service .
  6. Disconnect the fuel vent pipe quick connect fitting (4) from the canister. Refer to Plastic Collar Quick Connect Fitting Service .
    7. Fig 3: Identifying EVAP Chassis Pipe Quick Connect Fitting
    GM1637876Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the EVAP chassis pipe quick connect fitting (1) from the canister. Refer to Plastic Collar Quick Connect Fitting Service .
    8. Fig 4: Locating EVAP Canister Bolt
    GM1637877Courtesy of GENERAL MOTORS CORP.
  8. Remove the EVAP canister bolt (1).
    9. Fig 5: Locating EVAP Canister
    GM1637878Courtesy of GENERAL MOTORS CORP.
  9. Remove the EVAP canister by sliding the canister towards the driver side of the vehicle.
