Powertrain Mount Balance - Lower Mount

WARNING: This page is about a different variant/trim than selected.
NOTE: Follow the balance procedure steps listed below. Powertrain mounts must be tightened in sequence.
    Fig 1: View Of Front Transaxle Mount & Through Bolt
    GM1623164Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Loosen the front transaxle mount through bolt.

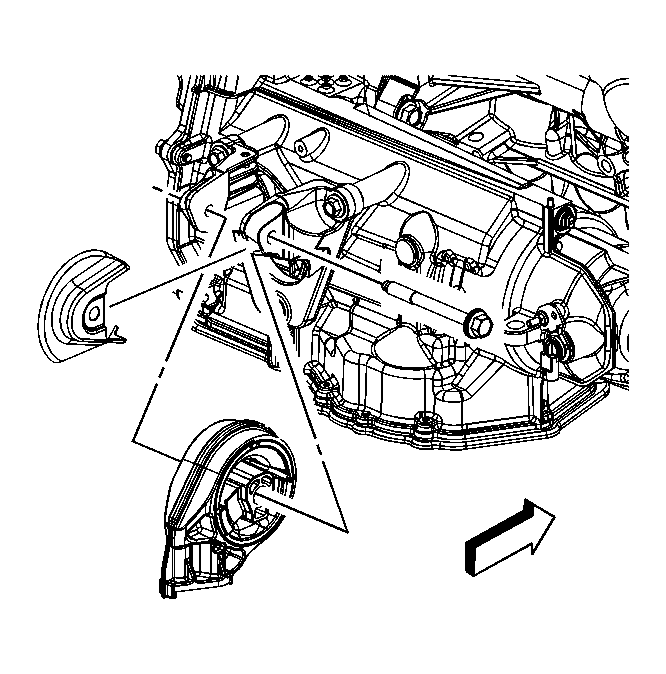

    3. Fig 2: View Of Rear Transaxle Mount & Through Bolt
    GM1623166Courtesy of GENERAL MOTORS CORP.
  3. Loosen the rear transaxle mount through bolt.
  4. Shake the powertrain vigorously from front to rear and allow the powertrain to settle.
    5. Fig 3: View Of Rear Transaxle Mount & Through Bolt
    GM1623166Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  5. Tighten the rear transaxle mount through bolt.

    Tighten:  Tighten the bolt to 100 N.m (74 lb ft).

    6. Fig 4: View Of Front Transaxle Mount & Through Bolt
    GM1623164Courtesy of GENERAL MOTORS CORP.
  6. Tighten the front transaxle n mount through bolt.

    Tighten:  Tighten the bolt to 100 N.m (74 lb ft).

  7. Lower the vehicle.
