Installation Procedure

WARNING: This page is about a different variant/trim than selected.

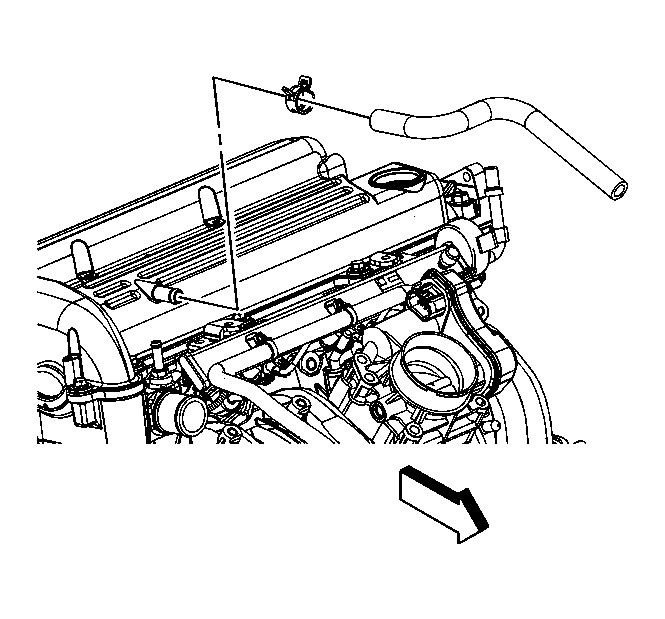

    Fig 1: Identifying PCV Hose
    GM1631138Courtesy of GENERAL MOTORS CORP.
  1. Install the PCV hose to the camshaft cover.
  2. Position the PCV hose clamp at the camshaft cover.
  3. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
