Installation Procedure

WARNING: This page is about a different variant/trim than selected.

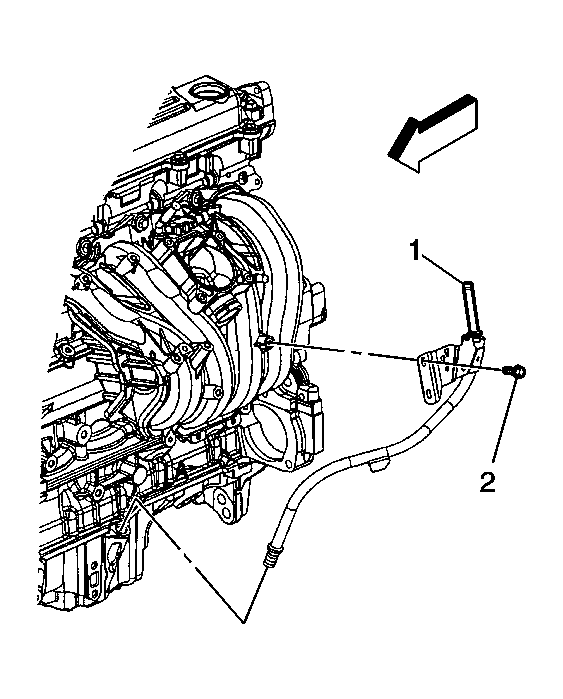

    Fig 1: Identifying Oil Level Indicator Tube & Bolt
    GM1623540Courtesy of GENERAL MOTORS CORP.
  1. Install NEW oil level indicator tube O-ring seals, if necessary.
  2. Install the oil level indicator tube (1).
    3. CAUTION: Refer to Fastener Caution .
  3. Install the oil level indicator tube bolt (2).

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

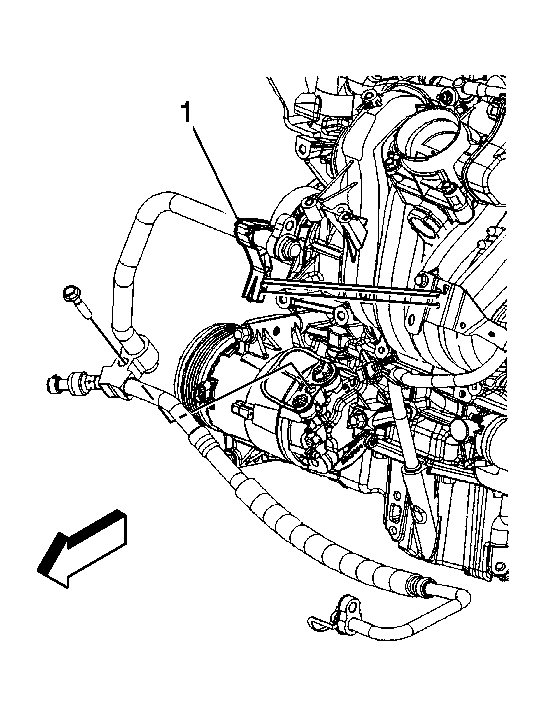

    4. Fig 2: Identifying A/C Compressor & Condenser Hose Clip
    GM1718437Courtesy of GENERAL MOTORS CORP.
  4. Install the A/C compressor and condenser hose clip (1) to the oil level indicator tube bracket.

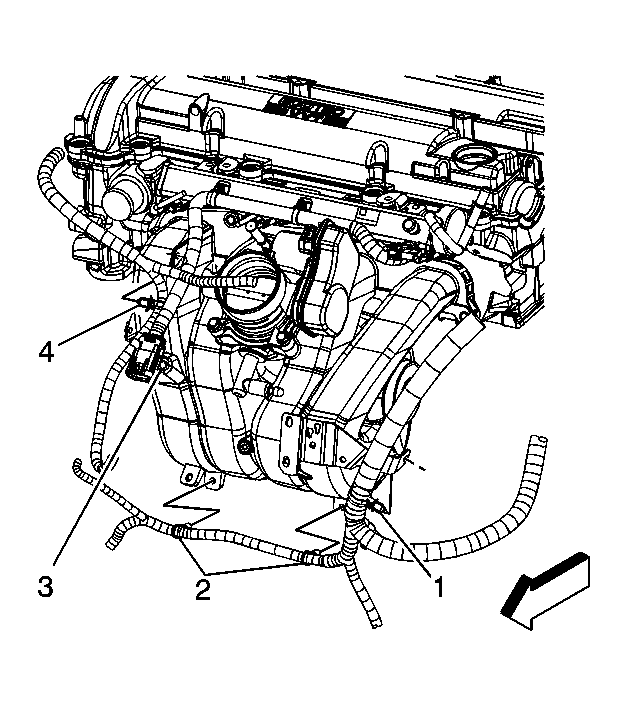

    5. Fig 3: Identifying Engine Harness Clips
    GM1627740Courtesy of GENERAL MOTORS CORP.
  5. Install the engine harness clip (1) to the oil level indicator tube bracket.
    6. Fig 4: Identifying Oil Level Indicator
    GM1571745Courtesy of GENERAL MOTORS CORP.
  6. Install the oil level indicator.
  7. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
