Removal Procedure

WARNING: This page is about a different variant/trim than selected.

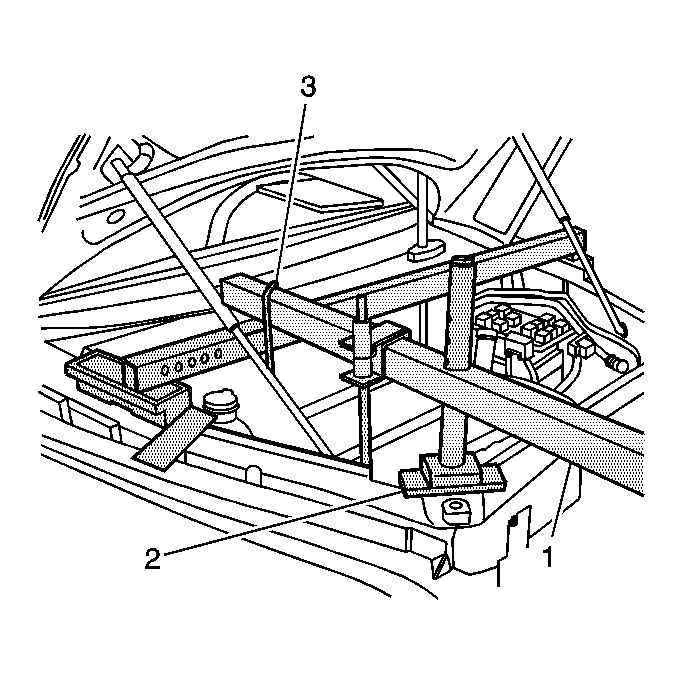

    Fig 1: Identifying Special Tools J 36462-A, J 28467-4A & J 28467-1A
    GM1718417Courtesy of GENERAL MOTORS CORP.
  1. Remove the hook from the engine lift bracket and remove the hook and bracket assembly from the J 36462-A  (1).
  2. Loosen the J 28467-1A bracket wing nuts.
  3. Remove the J 28467-1A bracket (3) from where the J 36462-A  (1) and the J 28467-4A intersect.
  4. Remove the J 36462-A  (1).

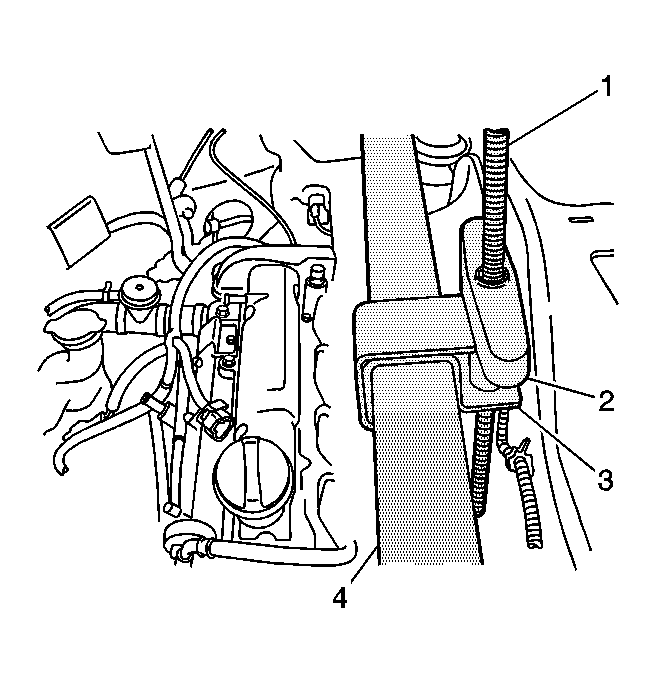

    5. Fig 2: Identifying Special Tools J 28467-8A, J 28467-6A & J 28467-4A
    GM1718416Courtesy of GENERAL MOTORS CORP.
  5. Remove the hook on J 28467-8A (1) from the engine lift bracket on the engine, and remove the J 28467-6A (3) from the J 28467-4A (4)
    6. Fig 3: View Of Lift Hook Assembly
    GM682139Courtesy of GENERAL MOTORS CORP.
  6. Remove the J 28467-34 wing nut and washer, and remove the J 28467-8A hook from the J 28467-6A bracket.
  7. Repeat the previous step in order to disassemble the two lift hooks and brackets.
    8. Fig 4: Identifying Special Tools J 41602 & J 28467-4A
    GM1718414Courtesy of GENERAL MOTORS CORP.
  8. Remove the J 28467-4A (2) from across the engine compartment.
  9. Remove the J 41602  (1) from the fender pinch welds.
  10. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
