Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Special Tools J 41602 & J 28467-4A
    GM1718414Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  2. Install the J 41602  (1) to the fender pinch welds as far forward as possible.
  3. From the J 28467-B  , place the J 28467-4A (2) across the engine compartment on top of the J 41602  (1). See Special Tools .
    4. Fig 2: View Of Lift Hook Assembly
    GM682139Courtesy of GENERAL MOTORS CORP.
  4. From the J 28467-B  , install the J 28467-8A hook to the J 28467-6A bracket, and install the J 28467-34 wing nut and washer. See Special Tools .
  5. Repeat the previous step in order to assemble two lift hooks and brackets.
    6. Fig 3: Identifying Special Tools J 28467-8A, J 28467-6A & J 28467-4A
    GM1718416Courtesy of GENERAL MOTORS CORP.
  6. Place the hook on J 28467-8A (1) through the engine lift bracket on the engine, and set the J 28467-6A (3) onto the J 28467-4A (4)
    7. Fig 4: Identifying Special Tools J 36462-A, J 28467-4A & J 28467-1A
    GM1718417Courtesy of GENERAL MOTORS CORP.
  7. Place the J 36462-A  (1) onto the J 28467-4A.
  8. Place the J 28467-4A (2) in the corner of the core support.
  9. Install the J 28467-1A bracket (3) where the J 36462-A  (1) and the J 28467-4A intersect.
  10. Hand tighten the J 28467-1A bracket wing nuts.
  11. Install the second hook and bracket assembly to the J 36462-A  (1) and install the hook to the engine lift bracket.

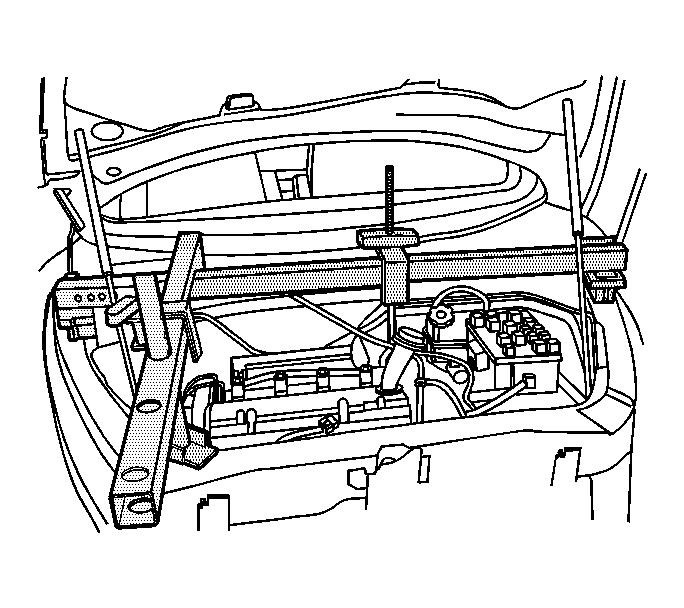

    12. Fig 5: View Of Support Ready To Lift Engine
    GM1718418Courtesy of GENERAL MOTORS CORP.
  12. Prior to lifting and/or supporting the engine, ensure that the lift hooks do not interfere with any adjacent components.
