Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying PCV Hose
    GM1631138Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  2. Reposition the positive crankcase ventilation (PCV) hose clamp.
  3. Remove the PCV hose from the cover.

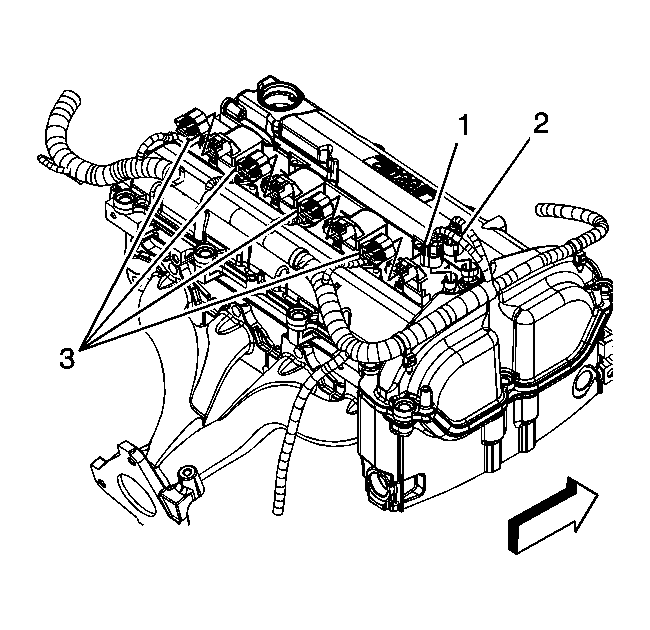

    4. Fig 2: Identifying Ignition Coil Electrical Connectors
    GM1628020Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the intake (2) and exhaust (1) camshaft position actuator solenoid valve electrical connectors.

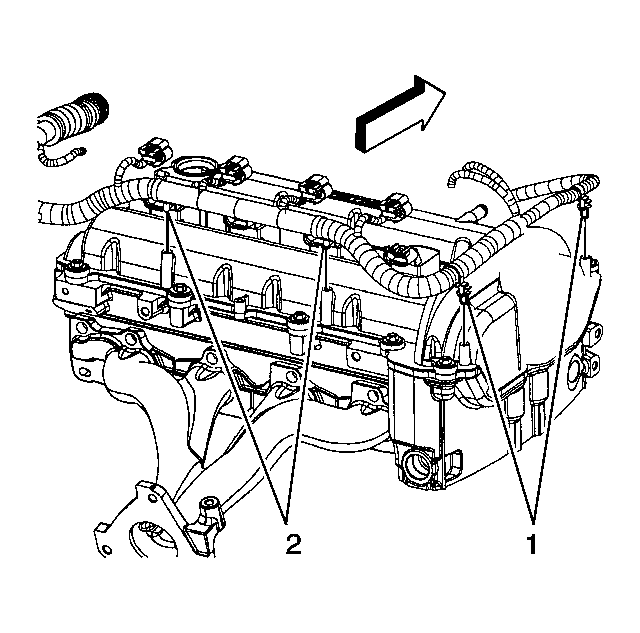

    5. Fig 3: Identifying Engine Harness Clips
    GM1631141Courtesy of GENERAL MOTORS CORP.
  5. Remove the ignition coils. Refer to Ignition Coil Replacement .
  6. Remove the engine harness clips (1, 2) from the cover.
    7. Fig 4: Identifying Camshaft Cover & Bolts
    GM1578306Courtesy of GENERAL MOTORS CORP.
  7. Remove the camshaft cover bolts.
  8. Remove the camshaft cover.
