Transmission Mount Bracket Replacement - Rear

WARNING: This page is about a different variant/trim than selected.

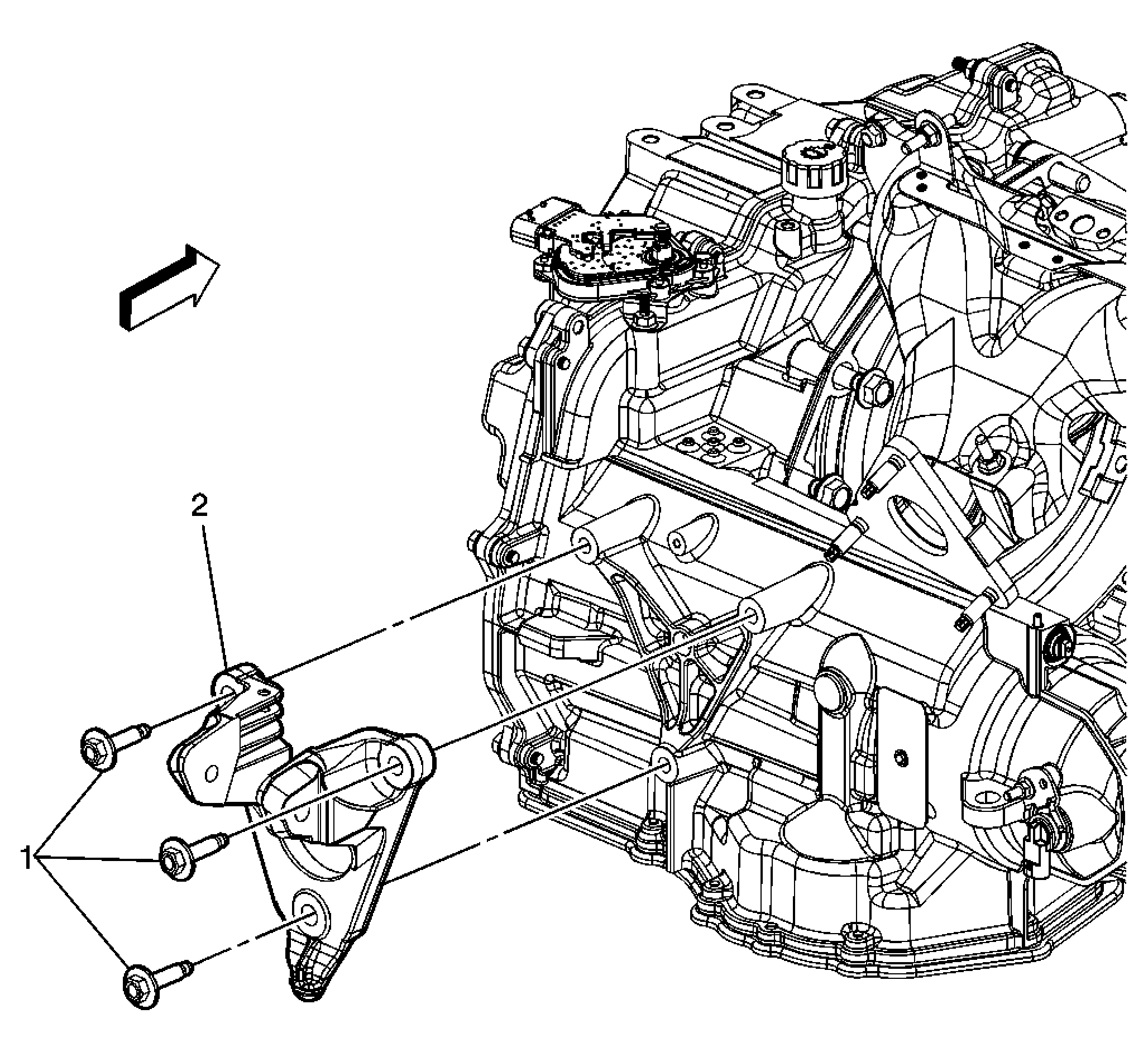

Fig 1: View Of Transmission Mount Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear transmission mount. Refer to Transmission Rear Mount Replacement .
1	Bolt, Transaxle Mount Bracket (Qty: 3) CAUTION: Refer to Fastener Caution . Tip: Tighten bolts in specified sequence. Tighten: 50 N.m (37 lb ft).
2	Bracket, Transaxle
