Radiator Support Bracket Replacement

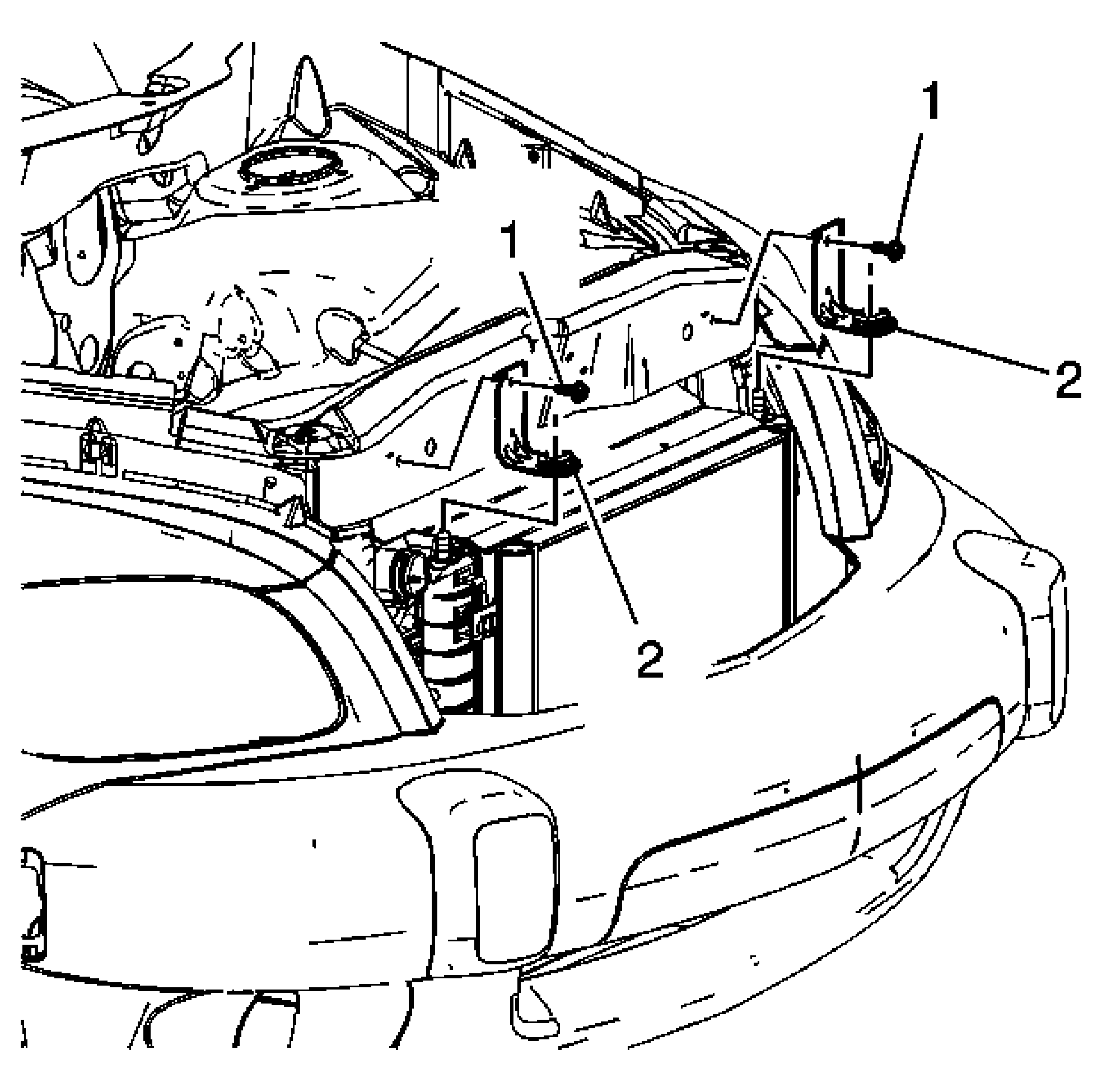

Fig 1: Identifying Radiator Support Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator Bracket Assembly Bolt - Upper CAUTION: Refer to Fastener Caution . Tighten:  9 N.m (80 lb in)
2	Radiator Bracket - Upper
